IXPEWWE150-36-444-5TSC — Explosion Proof Motor


Price:
$ 19,488.47

Description

IXPEWWE150-36-444-5TSC — Explosion Proof Motor

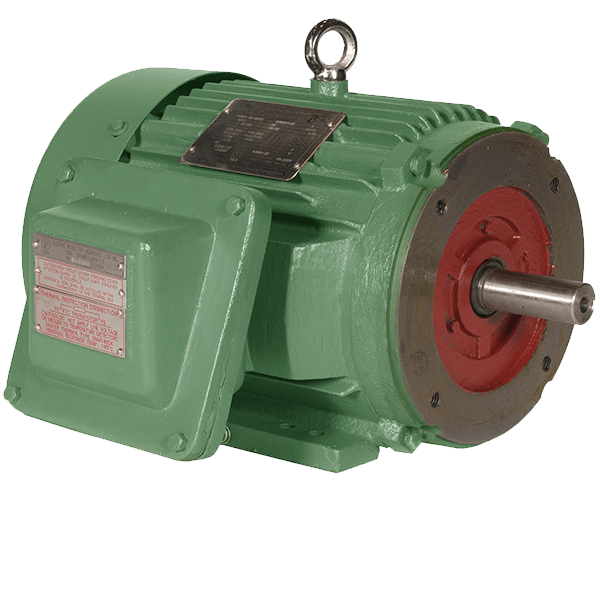

The IXPEWWE150-36-444-5TSC is a 150 hp, 3600 rpm, 3-phase, 460v, 444/5tsc frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number IXPEWWE150-36-444-5TSC
Horsepower (HP) 150
Speed (RPM) 3600
Phase Three-Phase
Voltage 460
Frequency 60/50 HZ*
NEMA Frame 444/5TSC
Enclosure TEXP
Service Factor 1.15
Full-Load Efficiency (%) 95.0
Full-Load Amps 164
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 1894
Warranty Two Year

Applications

  • Hazardous and classified locations
  • Oil, gas, and chemical processing
  • Grain handling and dust environments
  • Class I/II Division 1 applications

Documentation & Downloads

Frequently Asked Questions

What is the IXPEWWE150-36-444-5TSC used for?

The IXPEWWE150-36-444-5TSC is a 150 hp, 3600 rpm, 3-phase, 460v, 444/5tsc frame, texp explosion proof motor used for hazardous and classified locations and similar loads.

What frame is the IXPEWWE150-36-444-5TSC?

The IXPEWWE150-36-444-5TSC uses a NEMA 444/5TSC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the IXPEWWE150-36-444-5TSC run on?

The IXPEWWE150-36-444-5TSC is rated 460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the IXPEWWE150-36-444-5TSC ship?

Most in-stock units of the IXPEWWE150-36-444-5TSC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on IXPEWWE150-36-444-5TSC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
