IXPEWWE20-12-286TC — Explosion Proof Motor


Price:
$ 3,790.41

Description

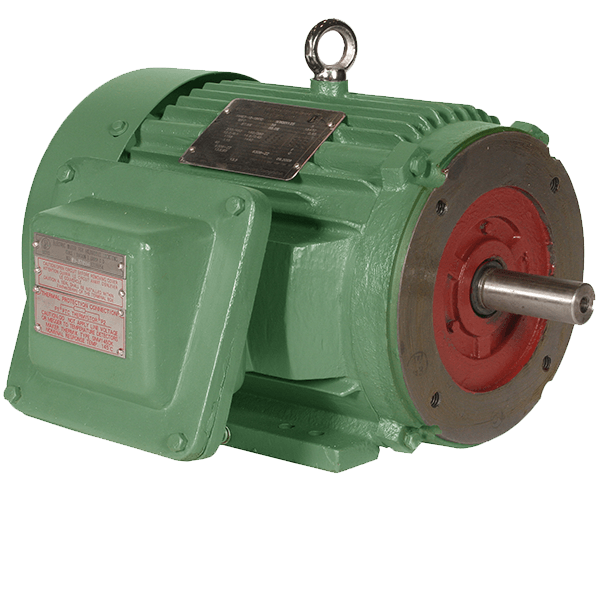

IXPEWWE20-12-286TC — Explosion Proof Motor

The IXPEWWE20-12-286TC is a 20 hp, 1200 rpm, 3-phase, 230/460v, 286tc frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number IXPEWWE20-12-286TC
Horsepower (HP) 20
Speed (RPM) 1200
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 286TC
Enclosure TEXP
Service Factor 1.15
Full-Load Efficiency (%) 91.7
Full-Load Amps 24.2
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 539
Warranty Two Year

Applications

  • Hazardous and classified locations
  • Oil, gas, and chemical processing
  • Grain handling and dust environments
  • Class I/II Division 1 applications

Documentation & Downloads

Frequently Asked Questions

What is the IXPEWWE20-12-286TC used for?

The IXPEWWE20-12-286TC is a 20 hp, 1200 rpm, 3-phase, 230/460v, 286tc frame, texp explosion proof motor used for hazardous and classified locations and similar loads.

What frame is the IXPEWWE20-12-286TC?

The IXPEWWE20-12-286TC uses a NEMA 286TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the IXPEWWE20-12-286TC run on?

The IXPEWWE20-12-286TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the IXPEWWE20-12-286TC ship?

Most in-stock units of the IXPEWWE20-12-286TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Helpful guides: ODP vs TEFC enclosure guide · How to read a motor nameplate
