Description

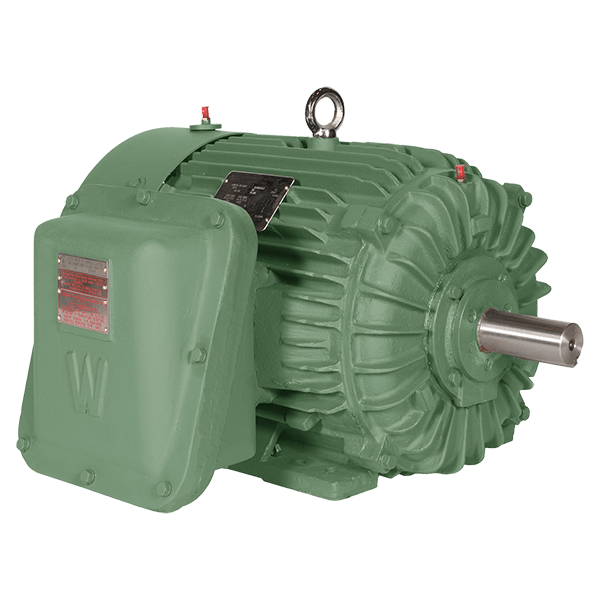

IXPEWWE250-36-447-9TS — Explosion Proof Motor
The IXPEWWE250-36-447-9TS is a 250 hp, 3600 rpm, 3-phase, 460v, 447/9ts frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | IXPEWWE250-36-447-9TS |
| Horsepower (HP) | 250 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 447/9TS |
| Enclosure | TEXP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 95.8 |
| Full-Load Amps | 272 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 2508 |
| Warranty | Two Year |
Applications
- Hazardous and classified locations
- Oil, gas, and chemical processing
- Grain handling and dust environments
- Class I/II Division 1 applications
Documentation & Downloads
Frequently Asked Questions
What is the IXPEWWE250-36-447-9TS used for?
The IXPEWWE250-36-447-9TS is a 250 hp, 3600 rpm, 3-phase, 460v, 447/9ts frame, texp explosion proof motor used for hazardous and classified locations and similar loads.
What frame is the IXPEWWE250-36-447-9TS?
The IXPEWWE250-36-447-9TS uses a NEMA 447/9TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the IXPEWWE250-36-447-9TS run on?
The IXPEWWE250-36-447-9TS is rated 460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the IXPEWWE250-36-447-9TS ship?
Most in-stock units of the IXPEWWE250-36-447-9TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
