IXPEWWE50-18-326TC — Explosion Proof Motor


Price:
$ 5,650.56

Description

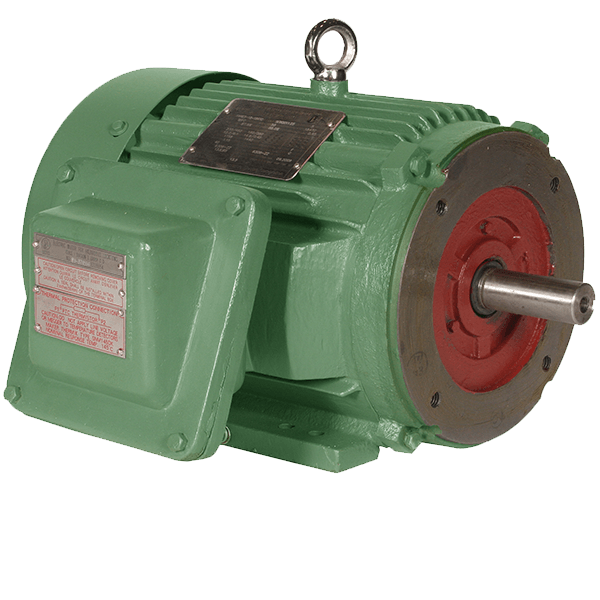

IXPEWWE50-18-326TC — Explosion Proof Motor

The IXPEWWE50-18-326TC is a 50 hp, 1800 rpm, 3-phase, 230/460v, 326tc frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number IXPEWWE50-18-326TC
Horsepower (HP) 50
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60/50 HZ*
NEMA Frame 326TC
Enclosure TEXP
Service Factor 1.15
Full-Load Efficiency (%) 94.5
Full-Load Amps 55
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 763
Warranty Two Year

Applications

  • Hazardous and classified locations
  • Oil, gas, and chemical processing
  • Grain handling and dust environments
  • Class I/II Division 1 applications

Documentation & Downloads

Frequently Asked Questions

What is the IXPEWWE50-18-326TC used for?

The IXPEWWE50-18-326TC is a 50 hp, 1800 rpm, 3-phase, 230/460v, 326tc frame, texp explosion proof motor used for hazardous and classified locations and similar loads.

What frame is the IXPEWWE50-18-326TC?

The IXPEWWE50-18-326TC uses a NEMA 326TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the IXPEWWE50-18-326TC run on?

The IXPEWWE50-18-326TC is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.

How fast does the IXPEWWE50-18-326TC ship?

Most in-stock units of the IXPEWWE50-18-326TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Helpful guides: ODP vs TEFC enclosure guide · How to read a motor nameplate

Need a quote on IXPEWWE50-18-326TC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
