Description

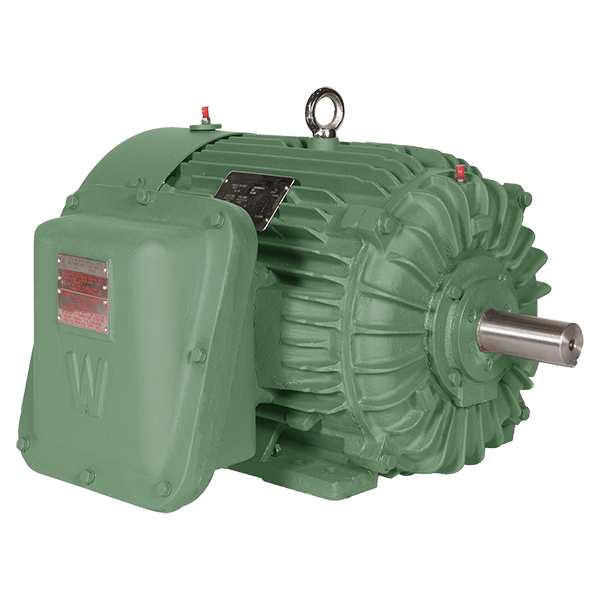

IXPEWWE7-5-12-254T — Explosion Proof Motor
The IXPEWWE7-5-12-254T is a 7.5 hp, 1200 rpm, 3-phase, 230/460v, 254t frame, texp explosion proof motor for hazardous and classified locations. TEXP enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | IXPEWWE7-5-12-254T |
| Horsepower (HP) | 7.5 |
| Speed (RPM) | 1200 |
| Phase | Three-Phase |
| Voltage | 230/460 |
| Frequency | 60/50 HZ* |
| NEMA Frame | 254T |
| Enclosure | TEXP |
| Service Factor | 1.15 |
| Full-Load Efficiency (%) | 91.0 |
| Full-Load Amps | 12.5 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 386 |
| Warranty | Two Year |
Applications
- Hazardous and classified locations
- Oil, gas, and chemical processing
- Grain handling and dust environments
- Class I/II Division 1 applications
Documentation & Downloads
Frequently Asked Questions
What is the IXPEWWE7-5-12-254T used for?
The IXPEWWE7-5-12-254T is a 7.5 hp, 1200 rpm, 3-phase, 230/460v, 254t frame, texp explosion proof motor used for hazardous and classified locations and similar loads.
What frame is the IXPEWWE7-5-12-254T?
The IXPEWWE7-5-12-254T uses a NEMA 254T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the IXPEWWE7-5-12-254T run on?
The IXPEWWE7-5-12-254T is rated 230/460V, 3-Phase at 60/50 HZ*. Verify supply voltage and connection against the motor nameplate.
How fast does the IXPEWWE7-5-12-254T ship?
Most in-stock units of the IXPEWWE7-5-12-254T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on IXPEWWE7-5-12-254T?
Most in-stock items ship same-day — call to confirm availability and freight.
