Megadyne L14M-40 Open-End Timing Belt, 14M


Price:
$ 38.89

Description

Megadyne L14M-40 Open-End Timing Belt, 14M

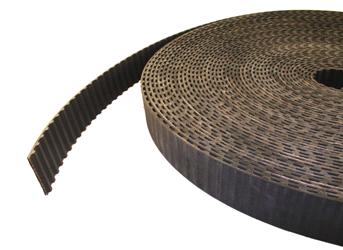

The Megadyne L14M-40 is an open-ended 14M polyurethane synchronous belt, supplied by length and cut to size for linear positioning, conveying, and automation drives. It replaces the equivalent Jason Industrial L14M-40.

Specification Value
Part Number L14M-40
Profile / Pitch 14M
Construction Rubber
Tooth Profile Curvilinear (HTD/RPP)
Width 40mm
Thickness 10.0mm
Temperature Range -13°F to 176°F

Applications

  • Linear positioning and actuation
  • Conveying and indexing
  • Cut-to-length synchronous drives

Cross-References

The 14M cross section and length are industry-standard, so the L14M-40 interchanges with Gates L14M-40, Dayco L14M-40, Continental L14M-40, and Jason Industrial L14M-40. Browse the timing belts collection.

Frequently Asked Questions

What is the Megadyne L14M-40 used for?

The L14M-40 is used for linear positioning and actuation, such as conveying and indexing and cut-to-length synchronous drives.

What are the dimensions of L14M-40?

The L14M-40 has a 40mm width in the 14M profile.

Is L14M-40 interchangeable with Gates L14M-40?

Yes. The 14M section and length are industry-standard, so the Megadyne L14M-40 interchanges with Gates, Dayco, Continental, and Jason Industrial belts of the same designation.

What is the temperature rating of L14M-40?

The L14M-40 is rated for continuous operation from -13°F to 176°F.

Does L14M-40 ship from Houston?

Yes. The L14M-40 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.

Need a quote on L14M-40?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
