Megadyne L5M-15 Open-End Timing Belt, 5M


Price:
$ 4.41

Description

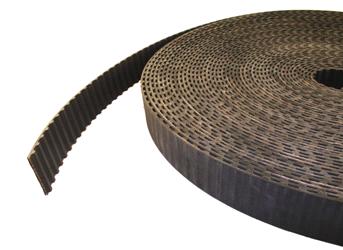

Megadyne L5M-15 Open-End Timing Belt, 5M

The Megadyne L5M-15 is an open-ended 5M polyurethane synchronous belt, supplied by length and cut to size for linear positioning, conveying, and automation drives. It replaces the equivalent Jason Industrial L5M-15.

$35 minimum order on Megadyne belts. Mix and match any Megadyne belts in your cart to reach the $35 minimum. Questions? Call (888) 203-2358.

Specification Value
Part Number L5M-15
Profile / Pitch 5M
Construction Rubber
Tooth Profile Curvilinear (HTD/RPP)
Width 15mm
Thickness 3.6mm
Temperature Range -13°F to 176°F

Applications

  • Linear positioning and actuation
  • Conveying and indexing
  • Cut-to-length synchronous drives

Cross-References

The 5M cross section and length are industry-standard, so the L5M-15 interchanges with Gates L5M-15, Dayco L5M-15, Continental L5M-15, and Jason Industrial L5M-15. Browse the timing belts collection.

Frequently Asked Questions

What is the Megadyne L5M-15 used for?

The L5M-15 is used for linear positioning and actuation, such as conveying and indexing and cut-to-length synchronous drives.

What are the dimensions of L5M-15?

The L5M-15 has a 15mm width in the 5M profile.

Is L5M-15 interchangeable with Gates L5M-15?

Yes. The 5M section and length are industry-standard, so the Megadyne L5M-15 interchanges with Gates, Dayco, Continental, and Jason Industrial belts of the same designation.

What is the temperature rating of L5M-15?

The L5M-15 is rated for continuous operation from -13°F to 176°F.

Does L5M-15 ship from Houston?

Yes. The L5M-15 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.

Need a quote on L5M-15?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
