Megadyne L5M-18 Open-End Timing Belt, 5M

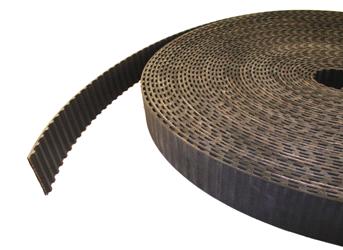

The Megadyne L5M-18 is an open-ended 5M polyurethane synchronous belt, supplied by length and cut to size for linear positioning, conveying, and automation drives. It replaces the equivalent Jason Industrial L5M-18.
$35 minimum order on Megadyne belts. Mix and match any Megadyne belts in your cart to reach the $35 minimum. Questions? Call (888) 203-2358.
| Specification | Value |
|---|---|
| Part Number | L5M-18 |
| Profile / Pitch | 5M |
| Construction | Rubber |
| Tooth Profile | Curvilinear (HTD/RPP) |
| Width | 18mm |
| Thickness | 3.6mm |
| Temperature Range | -13°F to 176°F |
Applications
- Linear positioning and actuation
- Conveying and indexing
- Cut-to-length synchronous drives
Cross-References
The 5M cross section and length are industry-standard, so the L5M-18 interchanges with Gates L5M-18, Dayco L5M-18, Continental L5M-18, and Jason Industrial L5M-18. Browse the timing belts collection.
Frequently Asked Questions
What is the Megadyne L5M-18 used for?
The L5M-18 is used for linear positioning and actuation, such as conveying and indexing and cut-to-length synchronous drives.
What are the dimensions of L5M-18?
The L5M-18 has a 18mm width in the 5M profile.
Is L5M-18 interchangeable with Gates L5M-18?
Yes. The 5M section and length are industry-standard, so the Megadyne L5M-18 interchanges with Gates, Dayco, Continental, and Jason Industrial belts of the same designation.
What is the temperature rating of L5M-18?
The L5M-18 is rated for continuous operation from -13°F to 176°F.
Does L5M-18 ship from Houston?
Yes. The L5M-18 ships from the Texas Belting & Supply warehouse in Houston, TX, with same-day shipping on stock items. Call (888) 203-2358 for stock and lead time.
