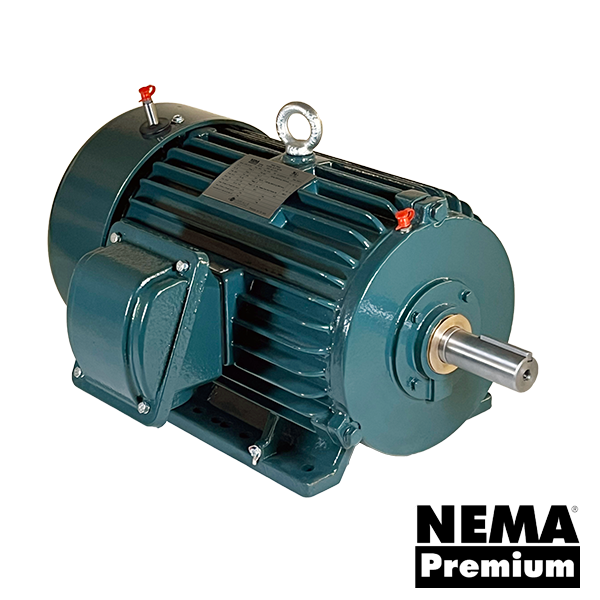

LAIE10-36-215T — Louis Allis, IEEE 841 Motor
The LAIE10-36-215T is a 10 hp, 3600 rpm, 3-phase, 460v, 215t frame, tefc louis allis, ieee 841 motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | LAIE10-36-215T |
| Horsepower (HP) | 10 |
| Speed (RPM) | 3600 |
| Phase | Three-Phase |
| Voltage | 460 |
| Frequency | 60 HZ |
| NEMA Frame | 215T |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| Full-Load Efficiency (%) | 90.2 |
| Full-Load Amps | 11.6 |
| Insulation Class | Class H |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Weight (lbs) | 204 |
| Warranty | Five Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the LAIE10-36-215T used for?
The LAIE10-36-215T is a 10 hp, 3600 rpm, 3-phase, 460v, 215t frame, tefc louis allis, ieee 841 motor used for industrial machinery and oem equipment and similar loads.
What frame is the LAIE10-36-215T?
The LAIE10-36-215T uses a NEMA 215T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the LAIE10-36-215T run on?
The LAIE10-36-215T is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the LAIE10-36-215T ship?
Most in-stock units of the LAIE10-36-215T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
