LAIE15-36-254TC — Louis Allis, IEEE 841 Motor


Price:
$ 2,485.35

Description

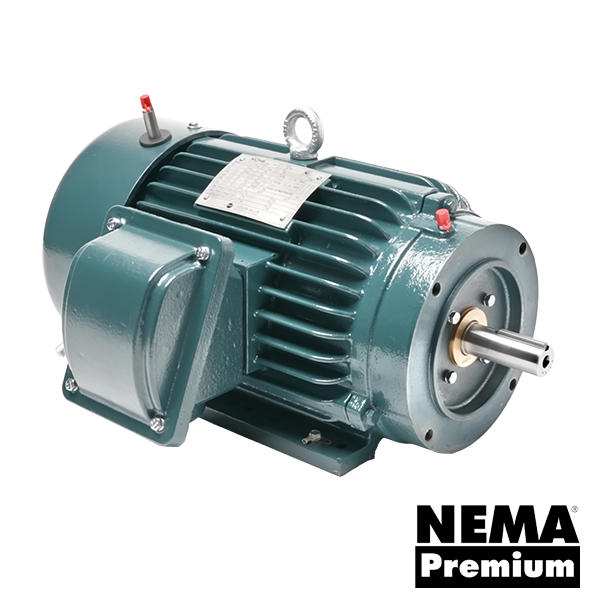

LAIE15-36-254TC — Louis Allis, IEEE 841 Motor

The LAIE15-36-254TC is a 15 hp, 3600 rpm, 3-phase, 460v, 254tc frame, tefc louis allis, ieee 841 motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAIE15-36-254TC
Horsepower (HP) 15
Speed (RPM) 3600
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 254TC
Enclosure TEFC
Service Factor 1.25
Full-Load Efficiency (%) 91.0
Full-Load Amps 16.6
Insulation Class Class H
Mounting C-Face with Feet
Ingress Protection IP55
Weight (lbs) 293
Warranty Five Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAIE15-36-254TC used for?

The LAIE15-36-254TC is a 15 hp, 3600 rpm, 3-phase, 460v, 254tc frame, tefc louis allis, ieee 841 motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAIE15-36-254TC?

The LAIE15-36-254TC uses a NEMA 254TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAIE15-36-254TC run on?

The LAIE15-36-254TC is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAIE15-36-254TC ship?

Most in-stock units of the LAIE15-36-254TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAIE15-36-254TC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
