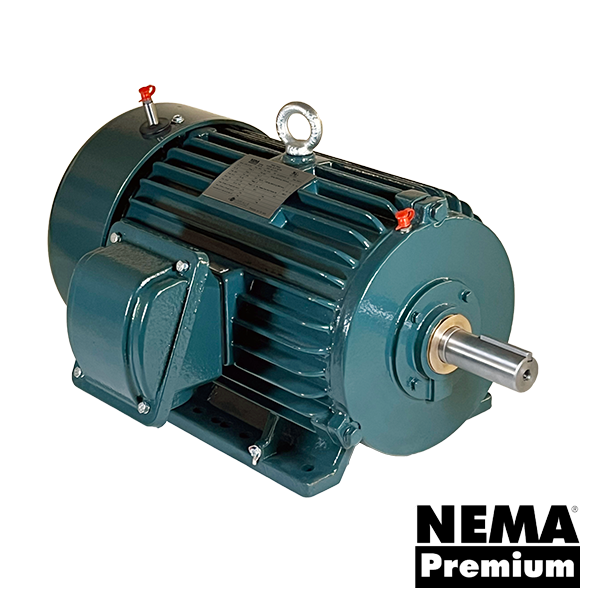

LAIE250-18-449T — Louis Allis, IEEE 841 Motor


Price:
$ 18,815.16

Description

LAIE250-18-449T — Louis Allis, IEEE 841 Motor

The LAIE250-18-449T is a 250 hp, 1800 rpm, 3-phase, 460v, 449t frame, tefc louis allis, ieee 841 motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number LAIE250-18-449T
Horsepower (HP) 250
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 449T
Enclosure TEFC
Service Factor 1.15
Full-Load Efficiency (%) 96.2
Full-Load Amps 270.2
Insulation Class Class H
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 2540
Warranty Five Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAIE250-18-449T used for?

The LAIE250-18-449T is a 250 hp, 1800 rpm, 3-phase, 460v, 449t frame, tefc louis allis, ieee 841 motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAIE250-18-449T?

The LAIE250-18-449T uses a NEMA 449T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAIE250-18-449T run on?

The LAIE250-18-449T is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAIE250-18-449T ship?

Most in-stock units of the LAIE250-18-449T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAIE250-18-449T?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
