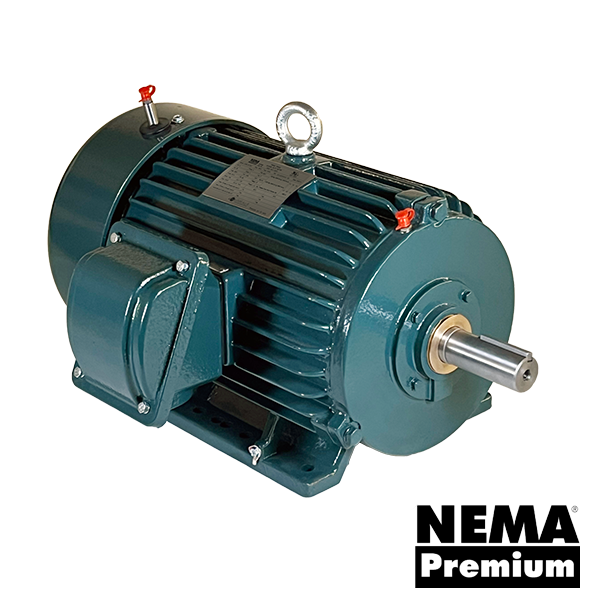

LAIE30-18-286T — Louis Allis, IEEE 841 Motor


Price:
$ 3,378.15

Description

LAIE30-18-286T — Louis Allis, IEEE 841 Motor

The LAIE30-18-286T is a 30 hp, 1800 rpm, 3-phase, 460v, 286t frame, tefc louis allis, ieee 841 motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAIE30-18-286T
Horsepower (HP) 30
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 286T
Enclosure TEFC
Service Factor 1.25
Full-Load Efficiency (%) 93.6
Full-Load Amps 34.8
Insulation Class Class H
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 485
Warranty Five Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAIE30-18-286T used for?

The LAIE30-18-286T is a 30 hp, 1800 rpm, 3-phase, 460v, 286t frame, tefc louis allis, ieee 841 motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAIE30-18-286T?

The LAIE30-18-286T uses a NEMA 286T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAIE30-18-286T run on?

The LAIE30-18-286T is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAIE30-18-286T ship?

Most in-stock units of the LAIE30-18-286T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAIE30-18-286T?

Most in-stock items ship same-day — call to confirm availability and freight.
