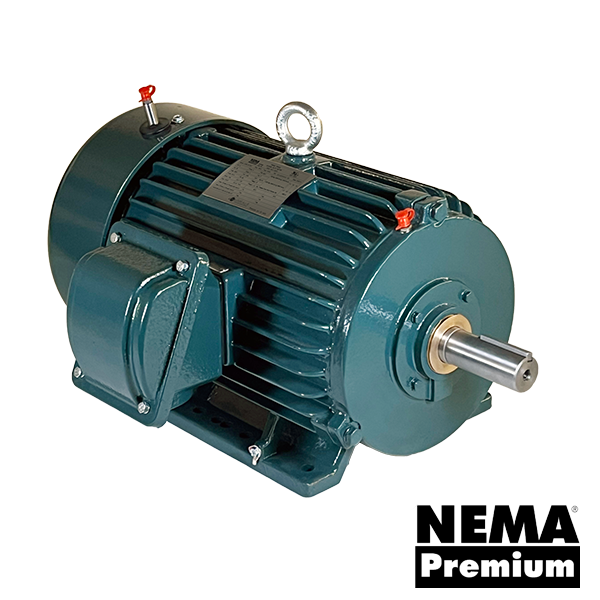

LAIE40-36-324TS — Louis Allis, IEEE 841 Motor


Price:
$ 4,311.33

Description

LAIE40-36-324TS — Louis Allis, IEEE 841 Motor

The LAIE40-36-324TS is a 40 hp, 3600 rpm, 3-phase, 460v, 324ts frame, tefc louis allis, ieee 841 motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAIE40-36-324TS
Horsepower (HP) 40
Speed (RPM) 3600
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 324TS
Enclosure TEFC
Service Factor 1.25
Full-Load Efficiency (%) 92.4
Full-Load Amps 46.4
Insulation Class Class H
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 540
Warranty Five Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAIE40-36-324TS used for?

The LAIE40-36-324TS is a 40 hp, 3600 rpm, 3-phase, 460v, 324ts frame, tefc louis allis, ieee 841 motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAIE40-36-324TS?

The LAIE40-36-324TS uses a NEMA 324TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAIE40-36-324TS run on?

The LAIE40-36-324TS is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAIE40-36-324TS ship?

Most in-stock units of the LAIE40-36-324TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
