LAIE50-12-365T — Louis Allis, IEEE 841 Motor


Price:
$ 6,604.23

Description

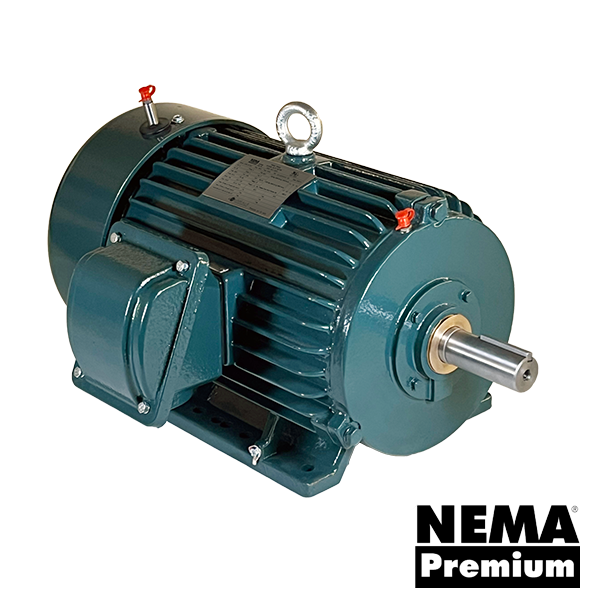

LAIE50-12-365T — Louis Allis, IEEE 841 Motor

The LAIE50-12-365T is a 50 hp, 1200 rpm, 3-phase, 460v, 365t frame, tefc louis allis, ieee 841 motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAIE50-12-365T
Horsepower (HP) 50
Speed (RPM) 1200
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 365T
Enclosure TEFC
Service Factor 1.25
Full-Load Efficiency (%) 94.1
Full-Load Amps 58.3
Insulation Class Class H
Mounting Rigid Base
Ingress Protection IP55
Weight (lbs) 626
Warranty Five Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAIE50-12-365T used for?

The LAIE50-12-365T is a 50 hp, 1200 rpm, 3-phase, 460v, 365t frame, tefc louis allis, ieee 841 motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAIE50-12-365T?

The LAIE50-12-365T uses a NEMA 365T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAIE50-12-365T run on?

The LAIE50-12-365T is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAIE50-12-365T ship?

Most in-stock units of the LAIE50-12-365T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAIE50-12-365T?

Most in-stock items ship same-day — call to confirm availability and freight.
