LAM25-18-284TS — LAM IEEE 45 Marine-Duty Motor


Price:
$ 2,248.89

Description

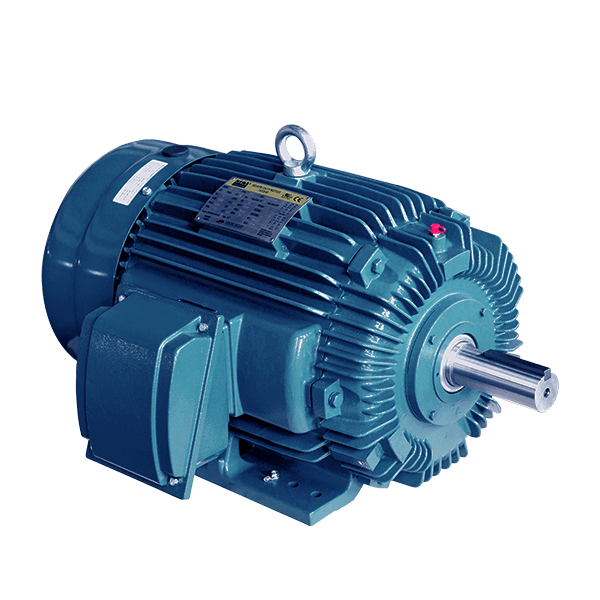

LAM25-18-284TS — LAM IEEE 45 Marine-Duty Motor

The LAM25-18-284TS is a 25 hp, 1800 rpm, 3-phase, 230/460v, 284ts frame, tefc lam ieee 45 marine-duty motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAM25-18-284TS
Horsepower (HP) 25
Speed (RPM) 1800
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 284TS
Enclosure TEFC
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM25-18-284TS used for?

The LAM25-18-284TS is a 25 hp, 1800 rpm, 3-phase, 230/460v, 284ts frame, tefc lam ieee 45 marine-duty motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM25-18-284TS?

The LAM25-18-284TS uses a NEMA 284TS frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM25-18-284TS run on?

The LAM25-18-284TS is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM25-18-284TS ship?

Most in-stock units of the LAM25-18-284TS ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAM25-18-284TS?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
