LAM350-12-L449T-F2 — Louis Allis, Premium Efficient Motor


Price:
$ 28,525.27

Description

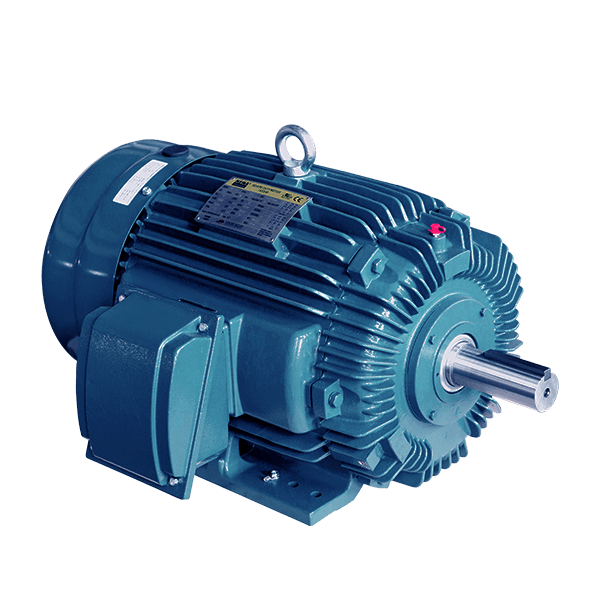

LAM350-12-L449T-F2 — Louis Allis, Premium Efficient Motor

The LAM350-12-L449T-F2 is a 350 hp, 1200 rpm, 3-phase, 460v, l449t frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number LAM350-12-L449T-F2
Horsepower (HP) 350
Speed (RPM) 1200
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame L449T
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM350-12-L449T-F2 used for?

The LAM350-12-L449T-F2 is a 350 hp, 1200 rpm, 3-phase, 460v, l449t frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM350-12-L449T-F2?

The LAM350-12-L449T-F2 uses a NEMA L449T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM350-12-L449T-F2 run on?

The LAM350-12-L449T-F2 is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM350-12-L449T-F2 ship?

Most in-stock units of the LAM350-12-L449T-F2 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAM350-12-L449T-F2?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
