Description

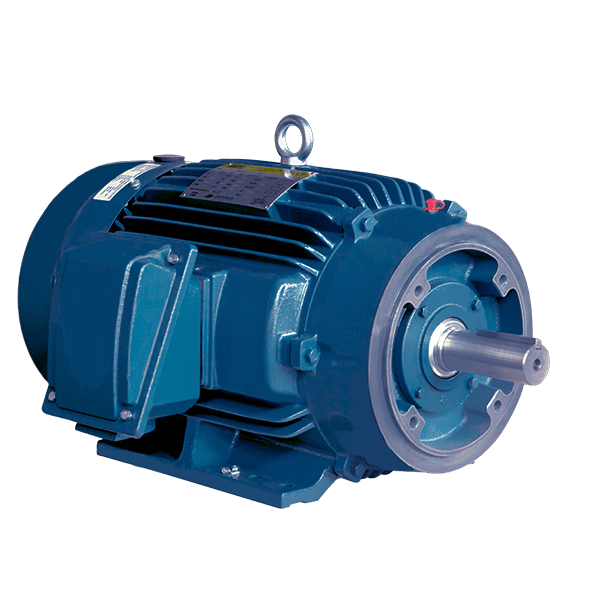

LAM40-36-324TSC — Louis Allis, Premium Efficient Motor

The LAM40-36-324TSC is a 40 hp, 3600 rpm, 230/460v, 324tsc frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAM40-36-324TSC
Horsepower (HP) 40
Speed (RPM) 3600
Voltage 230/460
NEMA Frame 324TSC
Enclosure TEFC
Service Factor 1.25
NEMA Design B
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM40-36-324TSC used for?

The LAM40-36-324TSC is a 40 hp, 3600 rpm, 230/460v, 324tsc frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM40-36-324TSC?

The LAM40-36-324TSC uses a NEMA 324TSC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM40-36-324TSC run on?

The LAM40-36-324TSC is rated 230/460V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM40-36-324TSC ship?

Most in-stock units of the LAM40-36-324TSC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
