LAM40-9-365T — LAM IEEE 45 Marine-Duty Motor


Price:
$ 7,227.48

Description

LAM40-9-365T — LAM IEEE 45 Marine-Duty Motor

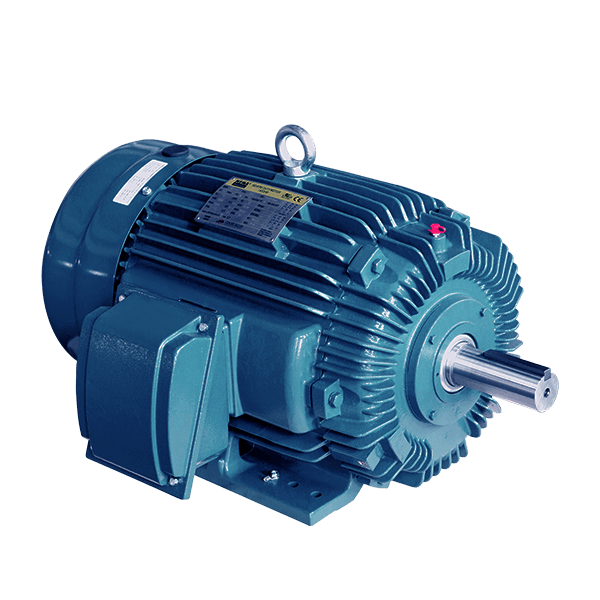

The LAM40-9-365T is a 40 hp, 900 rpm, 3-phase, 230/460v, 365t frame, tefc lam ieee 45 marine-duty motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAM40-9-365T
Horsepower (HP) 40
Speed (RPM) 900
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 365T
Enclosure TEFC
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM40-9-365T used for?

The LAM40-9-365T is a 40 hp, 900 rpm, 3-phase, 230/460v, 365t frame, tefc lam ieee 45 marine-duty motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM40-9-365T?

The LAM40-9-365T uses a NEMA 365T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM40-9-365T run on?

The LAM40-9-365T is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM40-9-365T ship?

Most in-stock units of the LAM40-9-365T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
