LAM400-18-586/7UZ — Louis Allis, Premium Efficient Motor


Price:
$ 37,073.79

Description

LAM400-18-586/7UZ — Louis Allis, Premium Efficient Motor

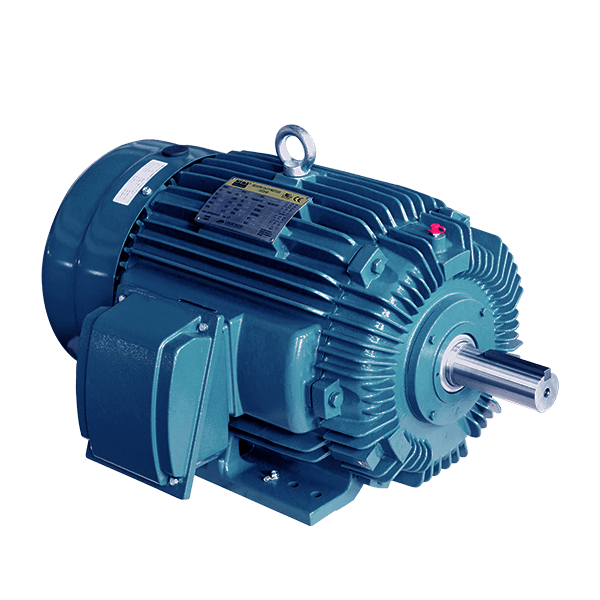

The LAM400-18-586/7UZ is a 400 hp, 1800 rpm, 3-phase, 460v, 586/7 frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.

Specifications

Specification Value
Part Number LAM400-18-586/7UZ
Horsepower (HP) 400
Speed (RPM) 1800
Phase Three-Phase
Voltage 460
Frequency 60 HZ
NEMA Frame 586/7
Enclosure TEFC
Service Factor 1.15
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM400-18-586/7UZ used for?

The LAM400-18-586/7UZ is a 400 hp, 1800 rpm, 3-phase, 460v, 586/7 frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM400-18-586/7UZ?

The LAM400-18-586/7UZ uses a NEMA 586/7 frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM400-18-586/7UZ run on?

The LAM400-18-586/7UZ is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM400-18-586/7UZ ship?

Most in-stock units of the LAM400-18-586/7UZ ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAM400-18-586/7UZ?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
