Description

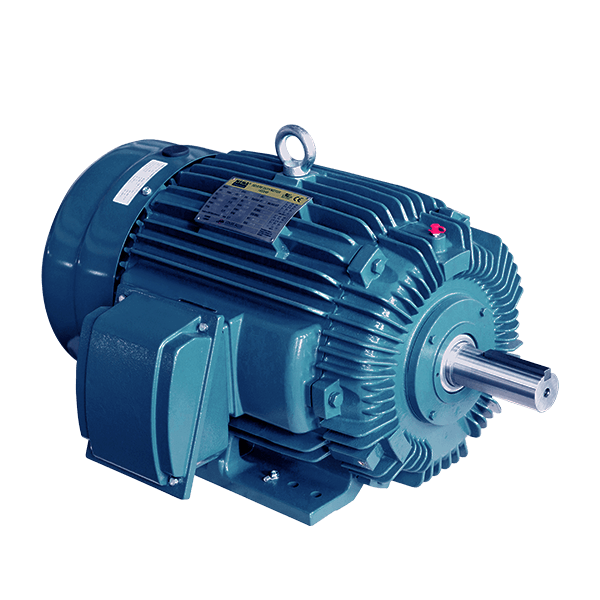

LAM450-36-586/7 - Louis Allis, Premium Efficient Motor
The LAM450-36-586/7 is a 450 hp, 3600 rpm, 460v, 586/7 frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | LAM450-36-586/7 |
| Horsepower (HP) | 450 |
| Speed (RPM) | 3600 |
| Voltage | 460 |
| NEMA Frame | 586/7 |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| NEMA Design | B |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
Frequently Asked Questions
What is the LAM450-36-586/7 used for?
The LAM450-36-586/7 is a 450 hp, 3600 rpm, 460v, 586/7 frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the LAM450-36-586/7?
The LAM450-36-586/7 uses a NEMA 586/7 frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the LAM450-36-586/7 run on?
The LAM450-36-586/7 is rated 460V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.
How fast does the LAM450-36-586/7 ship?
Most in-stock units of the LAM450-36-586/7 ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Helpful guides: Premium efficiency guide · NEMA frame size chart
