Description

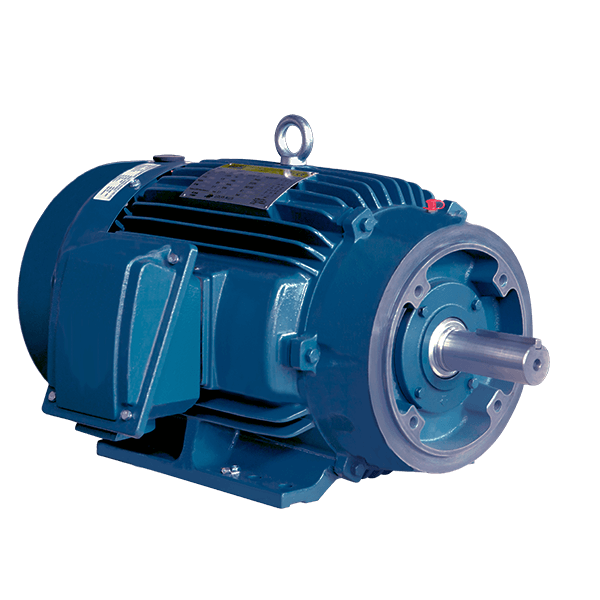

LAM50-12-365TC — Louis Allis, Premium Efficient Motor
The LAM50-12-365TC is a 50 hp, 1200 rpm, 230/460v, 365tc frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | LAM50-12-365TC |
| Horsepower (HP) | 50 |
| Speed (RPM) | 1200 |
| Voltage | 230/460 |
| NEMA Frame | 365TC |
| Enclosure | TEFC |
| Service Factor | 1.25 |
| NEMA Design | B |
| Insulation Class | Class F |
| Mounting | C-Face with Feet |
| Ingress Protection | IP55 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the LAM50-12-365TC used for?
The LAM50-12-365TC is a 50 hp, 1200 rpm, 230/460v, 365tc frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the LAM50-12-365TC?
The LAM50-12-365TC uses a NEMA 365TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the LAM50-12-365TC run on?
The LAM50-12-365TC is rated 230/460V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.
How fast does the LAM50-12-365TC ship?
Most in-stock units of the LAM50-12-365TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on LAM50-12-365TC?
Most in-stock items ship same-day — call to confirm availability and freight.
