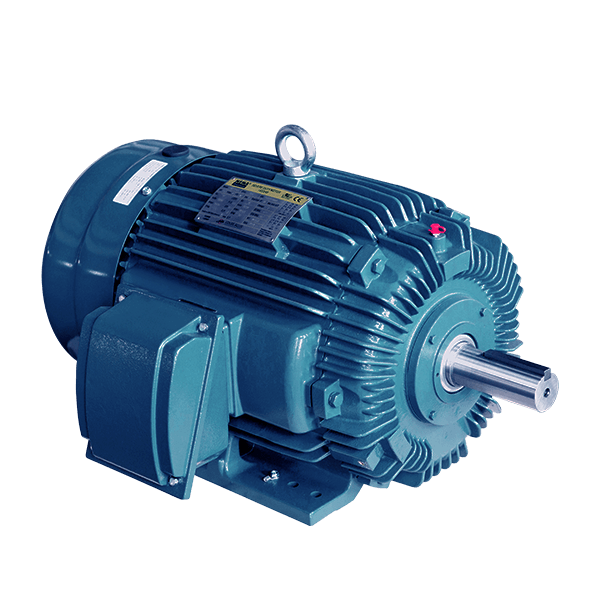

LAM50-9-404T — LAM IEEE 45 Marine-Duty Motor

The LAM50-9-404T is a 50 hp, 900 rpm, 3-phase, 230/460v, 404t frame, tefc lam ieee 45 marine-duty motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAM50-9-404T
Horsepower (HP) 50
Speed (RPM) 900
Phase Three-Phase
Voltage 230/460
Frequency 60 HZ
NEMA Frame 404T
Enclosure TEFC
Service Factor 1.25
Insulation Class Class F
Mounting Rigid Base
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM50-9-404T used for?

The LAM50-9-404T is a 50 hp, 900 rpm, 3-phase, 230/460v, 404t frame, tefc lam ieee 45 marine-duty motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM50-9-404T?

The LAM50-9-404T uses a NEMA 404T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM50-9-404T run on?

The LAM50-9-404T is rated 230/460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM50-9-404T ship?

Most in-stock units of the LAM50-9-404T ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
