Description

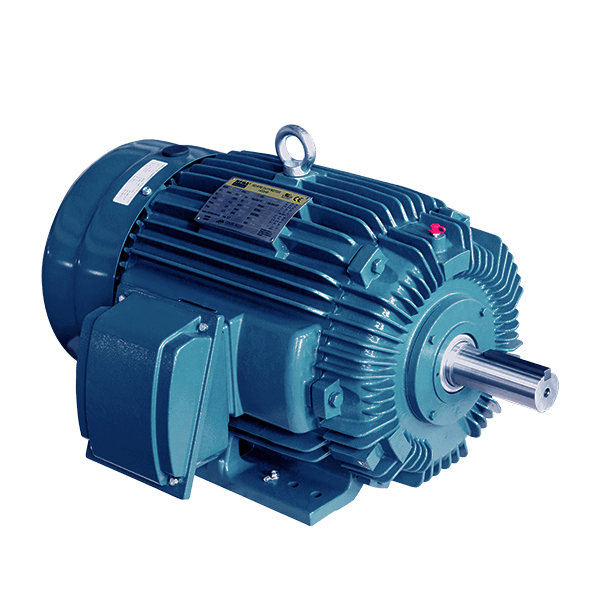

LAM500-18-L449T-IB — Louis Allis, Premium Efficient Motor
The LAM500-18-L449T-IB is a 500 hp, 1800 rpm, 3-phase, 460v, l449t frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.15 service factor.
Specifications
| Specification | Value |
|---|---|
| Part Number | LAM500-18-L449T-IB |
| Horsepower (HP) | 500 |
| Speed (RPM) | 1800 |
| Phase | Three-Phase |
| Voltage | 460 |
| Frequency | 60 HZ |
| NEMA Frame | L449T |
| Enclosure | TEFC |
| Service Factor | 1.15 |
| Insulation Class | Class F |
| Mounting | Rigid Base |
| Ingress Protection | IP55 |
| Warranty | Three Year |
Applications
- Industrial machinery and OEM equipment
- Fans, blowers, and pumps
- Conveyors and material handling
- Direct replacement for failed motors
Documentation & Downloads
- Spec Sheet (PDF)
- Installation & Operation Manual
- 2D CAD (DWG)
- 3D CAD Model
- Series Brochure
- Product Catalog
Frequently Asked Questions
What is the LAM500-18-L449T-IB used for?
The LAM500-18-L449T-IB is a 500 hp, 1800 rpm, 3-phase, 460v, l449t frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.
What frame is the LAM500-18-L449T-IB?
The LAM500-18-L449T-IB uses a NEMA L449T frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.
What voltage does the LAM500-18-L449T-IB run on?
The LAM500-18-L449T-IB is rated 460V, 3-Phase at 60 HZ. Verify supply voltage and connection against the motor nameplate.
How fast does the LAM500-18-L449T-IB ship?
Most in-stock units of the LAM500-18-L449T-IB ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.
Need a quote on LAM500-18-L449T-IB?
Most in-stock items ship same-day — call to confirm availability and freight.
