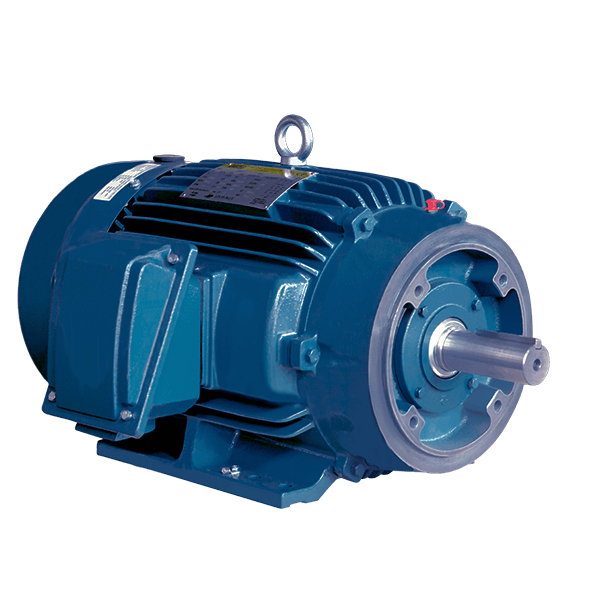

LAM7.5-18-213TC — Louis Allis, Premium Efficient Motor


Price:
$ 897.72

Description

LAM7.5-18-213TC — Louis Allis, Premium Efficient Motor

The LAM7.5-18-213TC is a 7.5 hp, 1800 rpm, 230/460v, 213tc frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAM7.5-18-213TC
Horsepower (HP) 7.5
Speed (RPM) 1800
Voltage 230/460
NEMA Frame 213TC
Enclosure TEFC
Service Factor 1.25
NEMA Design B
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM7.5-18-213TC used for?

The LAM7.5-18-213TC is a 7.5 hp, 1800 rpm, 230/460v, 213tc frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM7.5-18-213TC?

The LAM7.5-18-213TC uses a NEMA 213TC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM7.5-18-213TC run on?

The LAM7.5-18-213TC is rated 230/460V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM7.5-18-213TC ship?

Most in-stock units of the LAM7.5-18-213TC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAM7.5-18-213TC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
