LAM75-36-365TSC — Louis Allis, Premium Efficient Motor


Price:
$ 6,853.78

Description

LAM75-36-365TSC — Louis Allis, Premium Efficient Motor

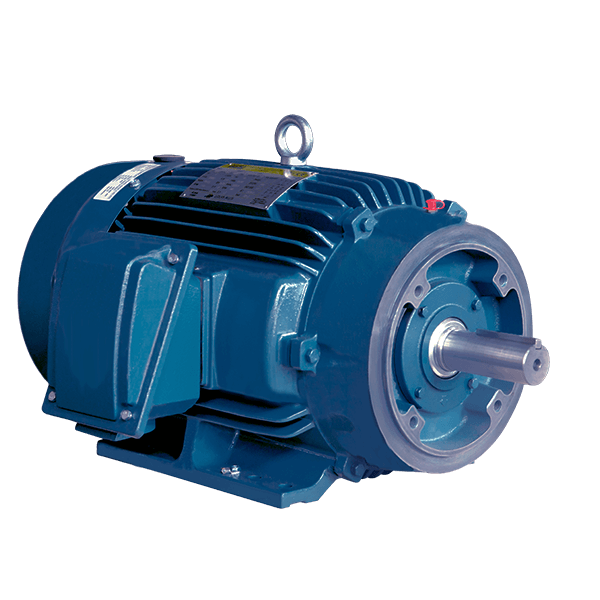

The LAM75-36-365TSC is a 75 hp, 3600 rpm, 230/460v, 365tsc frame, tefc louis allis, premium efficient motor for industrial machinery and oem equipment. TEFC enclosure, 1.25 service factor.

Specifications

Specification Value
Part Number LAM75-36-365TSC
Horsepower (HP) 75
Speed (RPM) 3600
Voltage 230/460
NEMA Frame 365TSC
Enclosure TEFC
Service Factor 1.25
NEMA Design B
Insulation Class Class F
Mounting C-Face with Feet
Ingress Protection IP55
Warranty Three Year

Applications

  • Industrial machinery and OEM equipment
  • Fans, blowers, and pumps
  • Conveyors and material handling
  • Direct replacement for failed motors

Documentation & Downloads

Frequently Asked Questions

What is the LAM75-36-365TSC used for?

The LAM75-36-365TSC is a 75 hp, 3600 rpm, 230/460v, 365tsc frame, tefc louis allis, premium efficient motor used for industrial machinery and oem equipment and similar loads.

What frame is the LAM75-36-365TSC?

The LAM75-36-365TSC uses a NEMA 365TSC frame. Confirm shaft diameter, mounting (base or C-face), and bolt pattern against your existing motor before ordering a replacement.

What voltage does the LAM75-36-365TSC run on?

The LAM75-36-365TSC is rated 230/460V, AC at 60 Hz. Verify supply voltage and connection against the motor nameplate.

How fast does the LAM75-36-365TSC ship?

Most in-stock units of the LAM75-36-365TSC ship the same or next business day; non-stock items vary. Call (888) 203-2358 to confirm availability and freight.

Need a quote on LAM75-36-365TSC?

Most in-stock items ship same-day — call to confirm availability and freight.

Call (888) 203-2358
