Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same A2040 family to join the chain ends after installation:
A2040 C/L
A2040 O/L

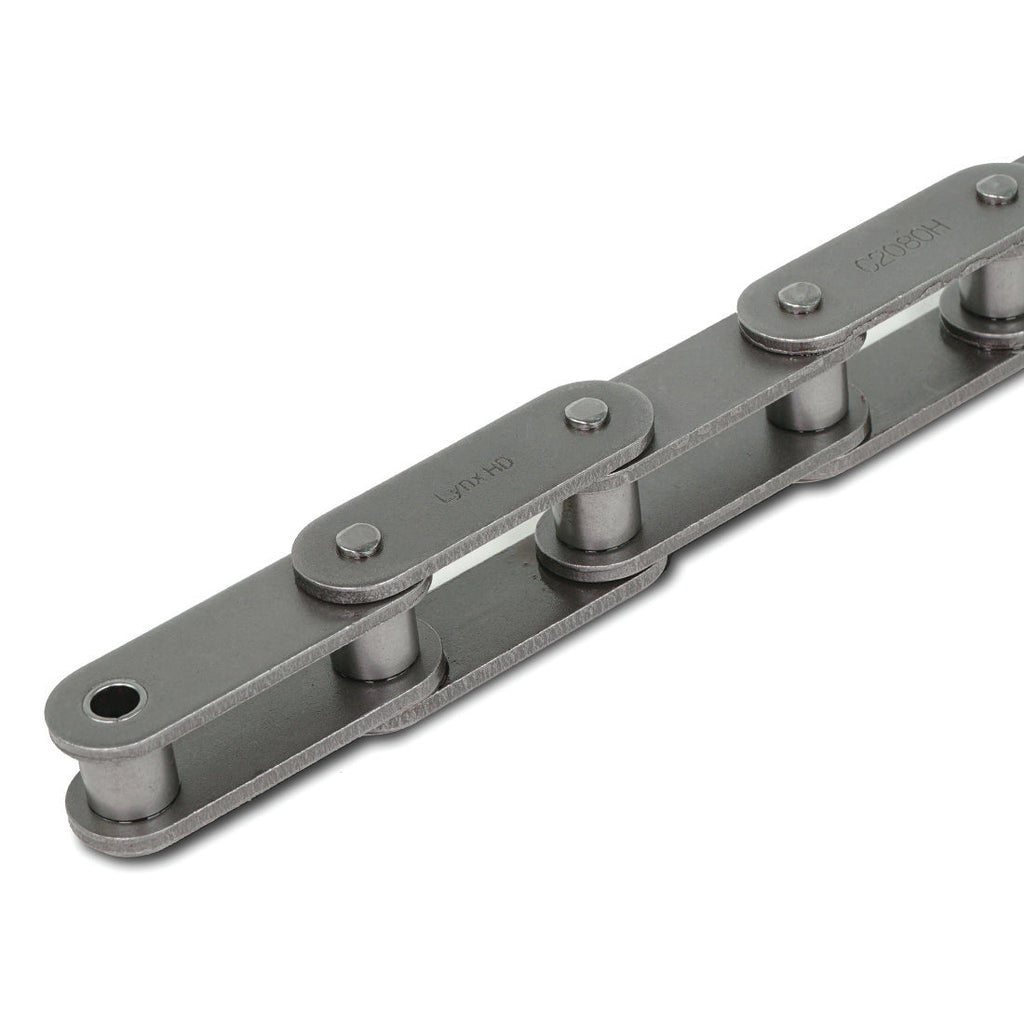

The Lynx A2040 RIV 100' is a 100-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

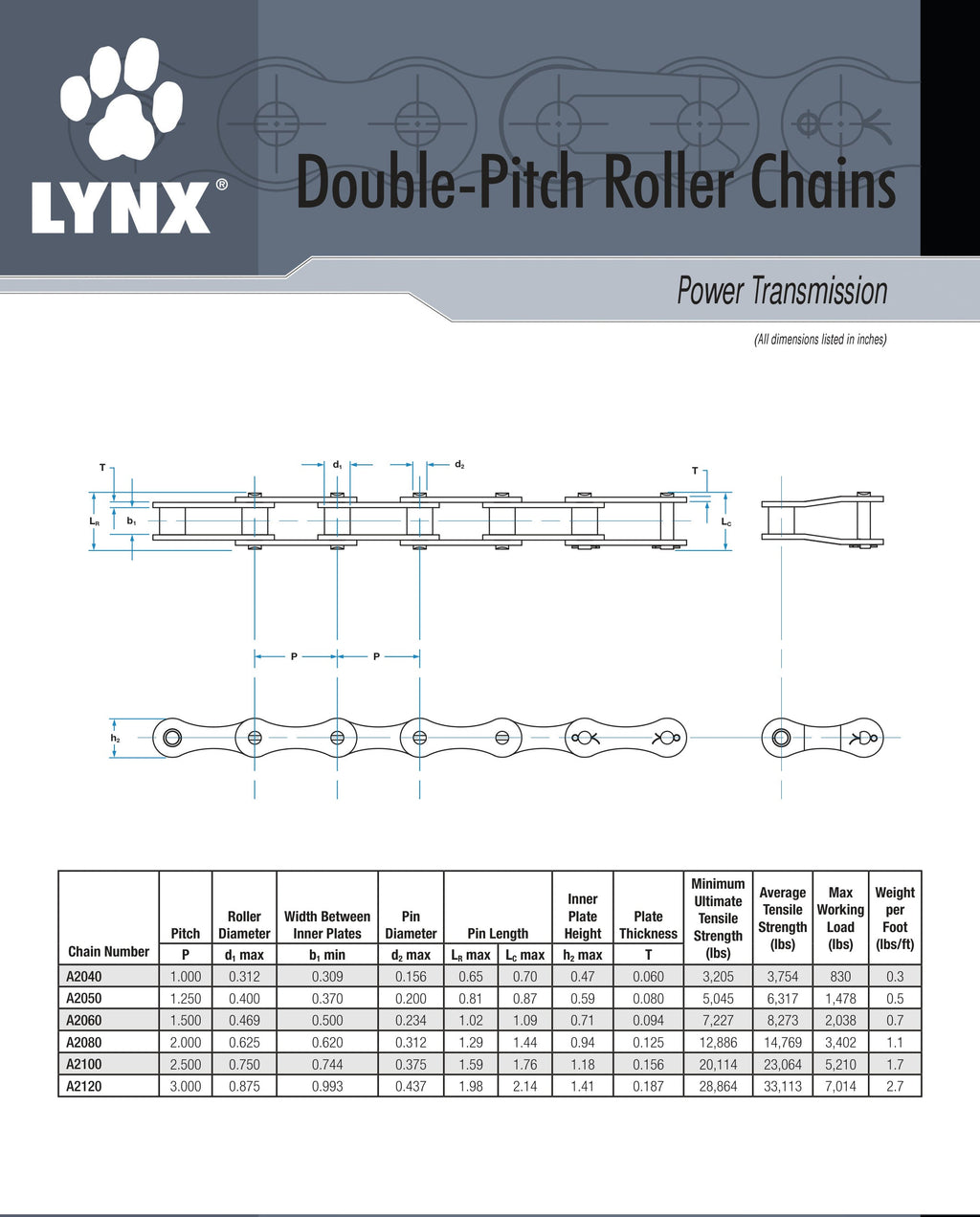

Specifications
| Chain Size | 2040 |
| Series | A2040 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.00 |
| Roller Diameter | 0.312 |
| Pin Diameter | 0.156 |
| Pin Length | 0.65 |
| Link Plate Height | 0.47 |
| Plate Thickness | 0.06 |
| Width Between Inner Plates | 0.312 |
| Average Tensile Strength (lbs.) | 3754 |
| Max Working Load (lbs.) | 830 |
| Minimum Tensile Strength (lbs.) | 3205 |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Cottered Pin-length (Max) | 0.7 |
| Weight per Foot | 0.9 lbs/ft |
| Total Reel Weight | 90 lbs (100 ft × 0.9 lbs/ft) |
| GTIN | 192056072503 |
