Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same A2050 family to join the chain ends after installation:
A2050 C/L
A2050 O/L

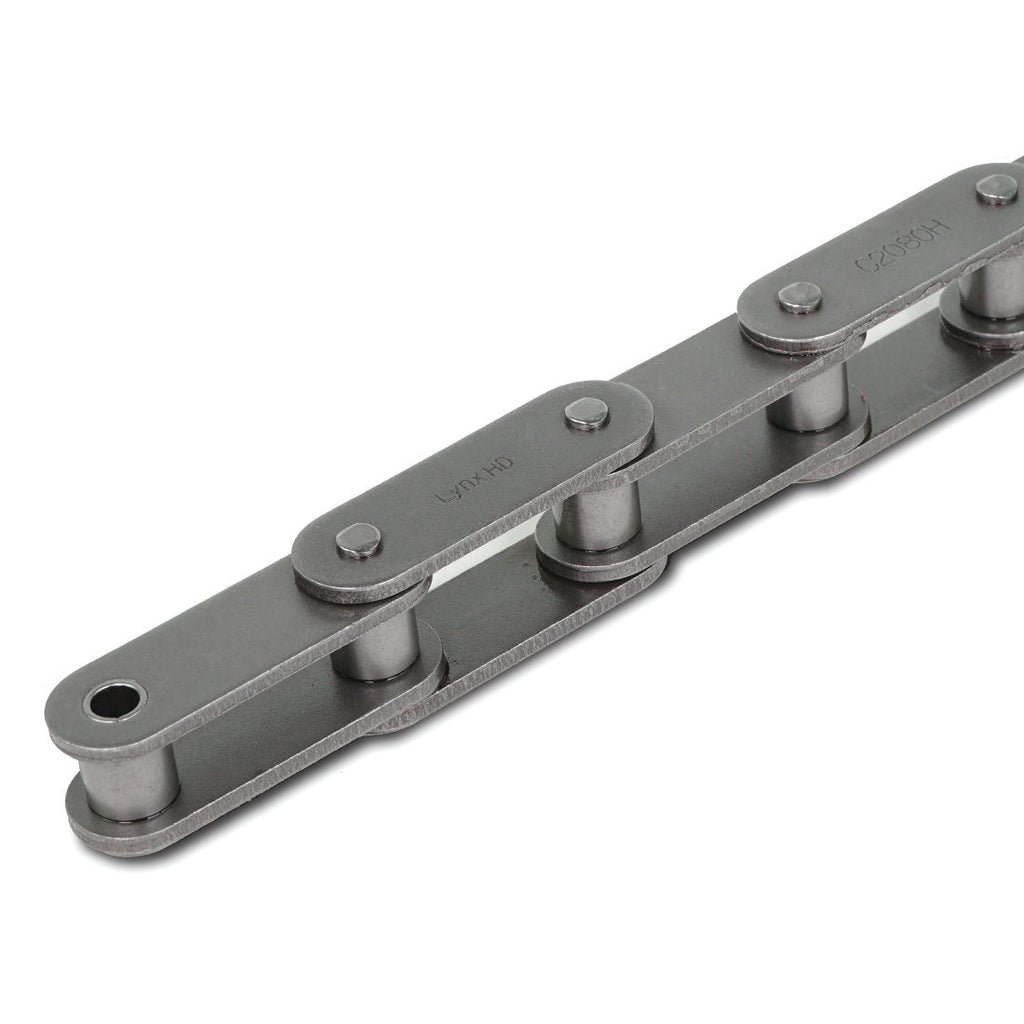

The Lynx A2050 RIV 50' is a 50-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

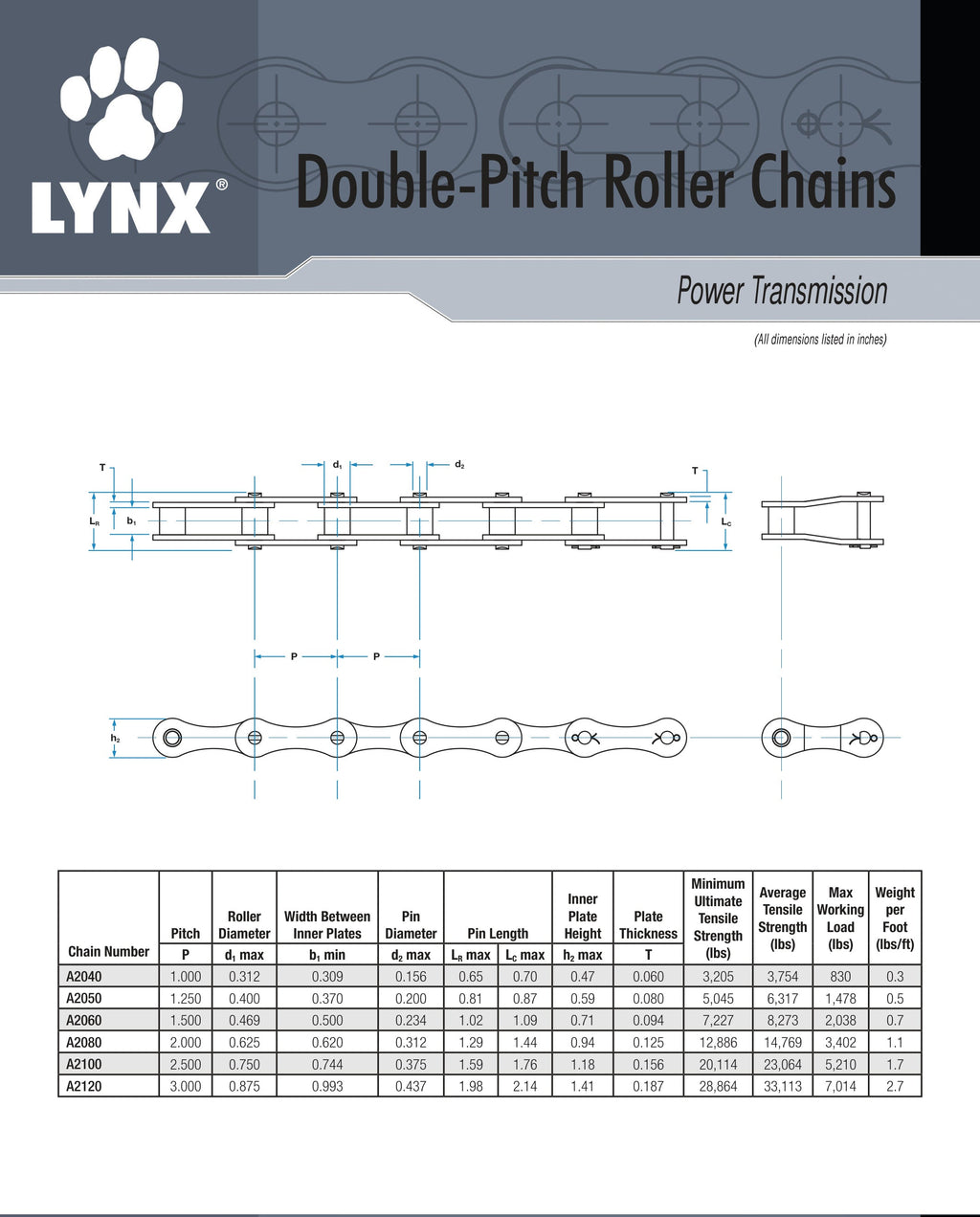

Specifications
| Chain Size | 2050 |
| Series | A2050 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.25 |
| Roller Diameter | 0.4 |
| Pin Diameter | 2.2 |
| Pin Length | 0.86 |
| Link Plate Height | 0.59 |
| Plate Thickness | 0.08 |
| Width Between Inner Plates | 0.37 |
| Average Tensile Strength (lbs.) | 6317 |
| Max Working Load (lbs.) | 1478 |
| Minimum Tensile Strength (lbs.) | 5045 |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Cottered Pin-length (Max) | 0.87 |
| Weight per Foot | 0.52 lbs/ft |
| Total Reel Weight | 26.2 lbs (50 ft × 0.52 lbs/ft) |
| GTIN | 192056072558 |
Compatible Components
Matched Sprockets
- 50A15 Roller Chain Sprocket, #50 Chain, 15 Teeth, A Hub
- 50A20 Roller Chain Sprocket, #50 Chain, 2 Teeth, A Hub
- 50A28 Roller Chain Sprocket, #50 Chain, 28 Teeth, A Hub
- 50A30 Roller Chain Sprocket, #50 Chain, 3 Teeth, A Hub
Shop all 2795 matched options ›
Connecting Links
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
Shop all 28 matched options ›
Offset Links
- Lynx HD50 O/L - Offset Link
- Lynx HD50 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
Shop all 24 matched options ›
Matched Sprockets
- 50A15 Roller Chain Sprocket, #50 Chain, 15 Teeth, A Hub
- 50A20 Roller Chain Sprocket, #50 Chain, 2 Teeth, A Hub
- 50A28 Roller Chain Sprocket, #50 Chain, 28 Teeth, A Hub
- 50A30 Roller Chain Sprocket, #50 Chain, 3 Teeth, A Hub
Shop all 2795 matched options ›
Connecting Links
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
Shop all 28 matched options ›
Offset Links
- Lynx HD50 O/L - Offset Link
- Lynx HD50 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
Shop all 24 matched options ›
