Lynx A2060 RIV 100' - Extended Pitch Chain 100ft Reel


Price:
$ 638.22

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same A2060 family to join the chain ends after installation:

CONNECTING LINKS:
A2060 C/L
OFFSET LINKS:
A2060 O/L

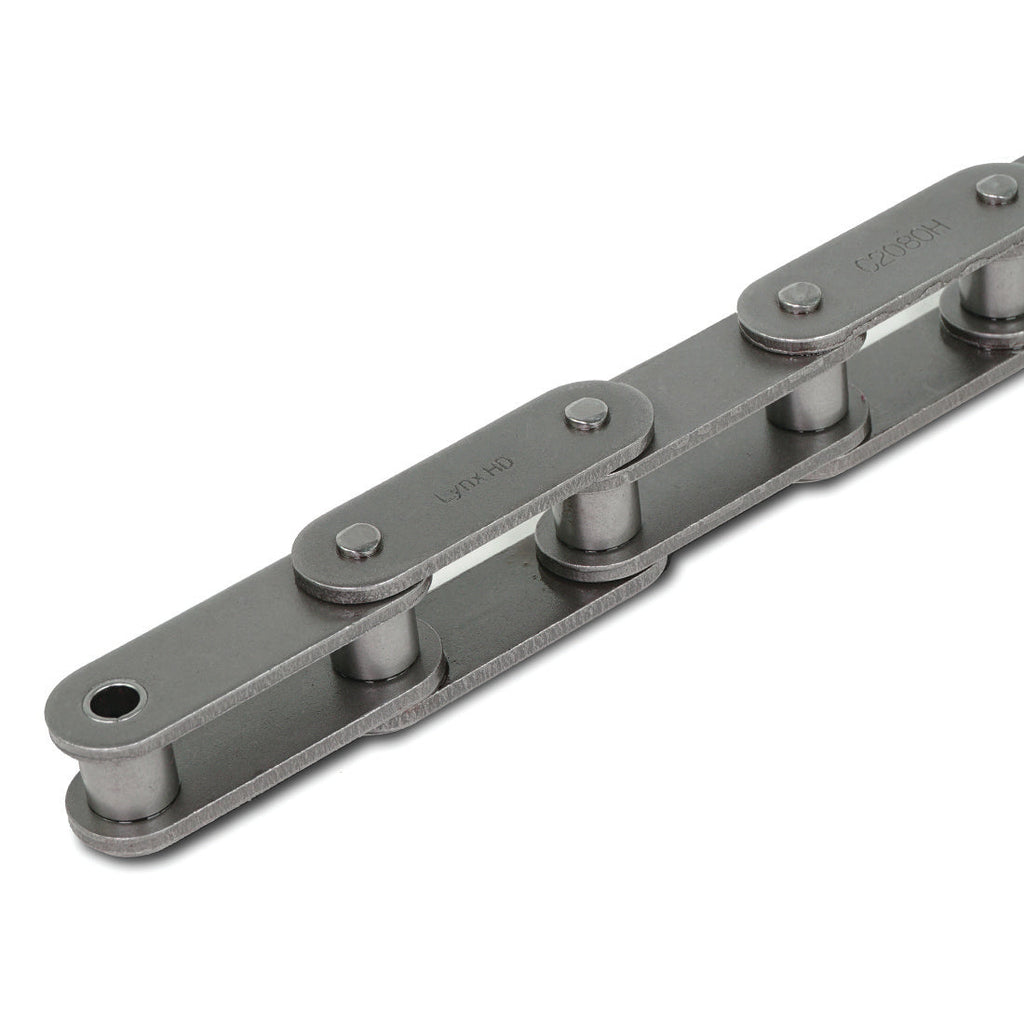

The Lynx A2060 RIV 100' is a 100-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

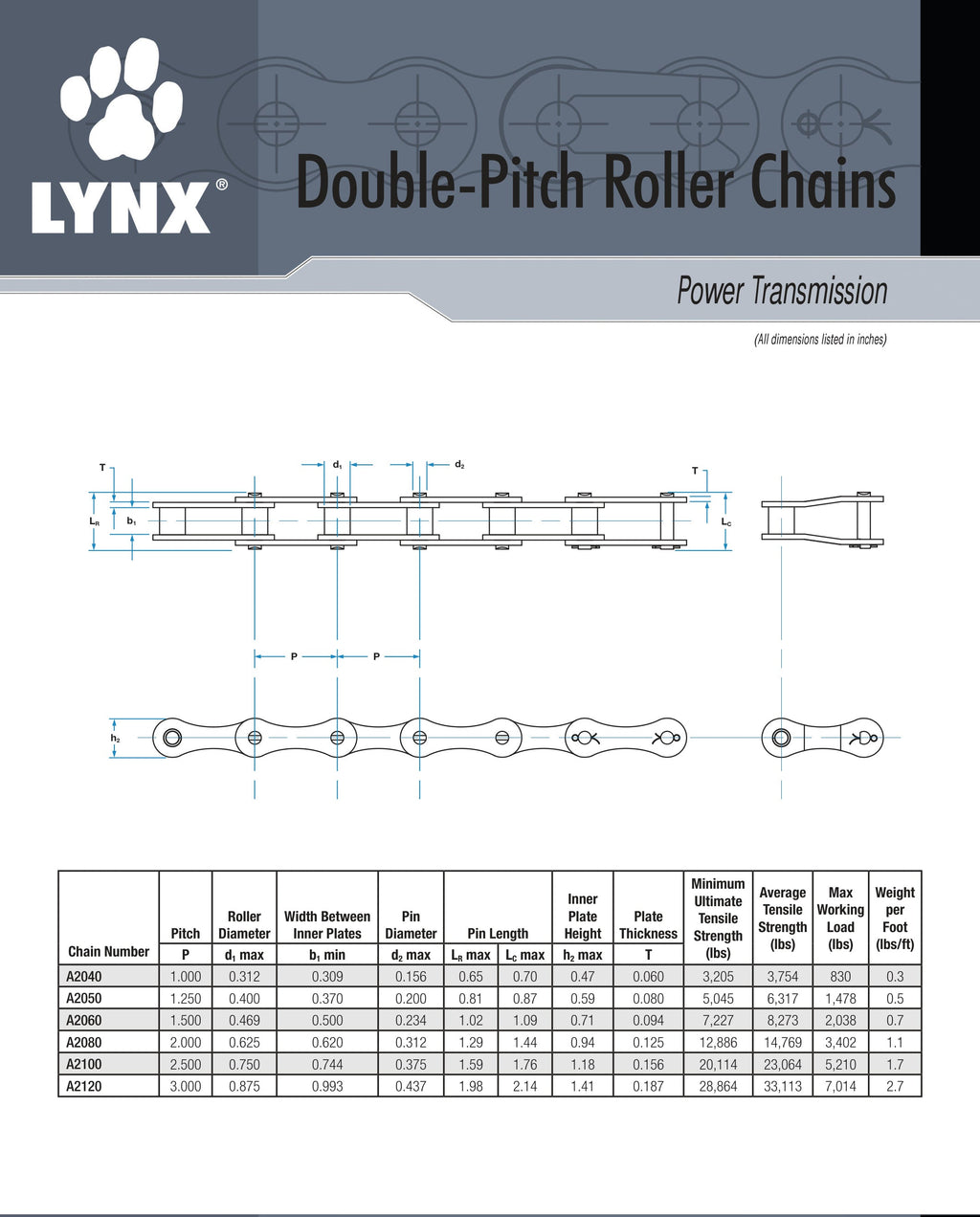

Specifications

Chain Size 2060
Series A2060 Series
Number of strands 1
Material Steel
Pitch 1.50
Roller Diameter 0.469
Pin Diameter 0.234
Pin Length 1.02
Link Plate Height 0.71
Plate Thickness 0.094
Width Between Inner Plates 0.5
Average Tensile Strength (lbs.) 8273
Max Working Load (lbs.) 2038
Minimum Tensile Strength (lbs.) 7227
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Cottered Pin-length (Max) 1.09
Weight per Foot 2.1 lbs/ft
Total Reel Weight 210 lbs (100 ft × 2.1 lbs/ft)
GTIN 192056072626
