Lynx AL1022 50' - Leaf Chain 50ft Reel


Price:
$ 926.90

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same AL1022 family to join the chain ends after installation:

CONNECTING LINKS:
AL1022 C/LAL1022 RIV C/L

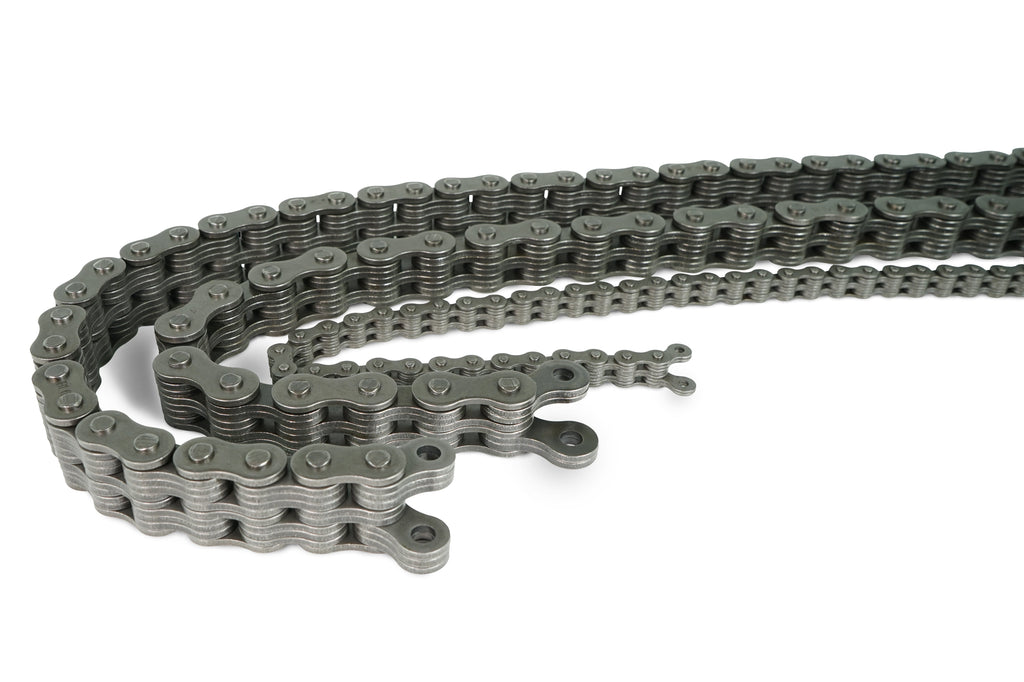

The Lynx AL1022 50' is a 50-foot reel of leaf chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

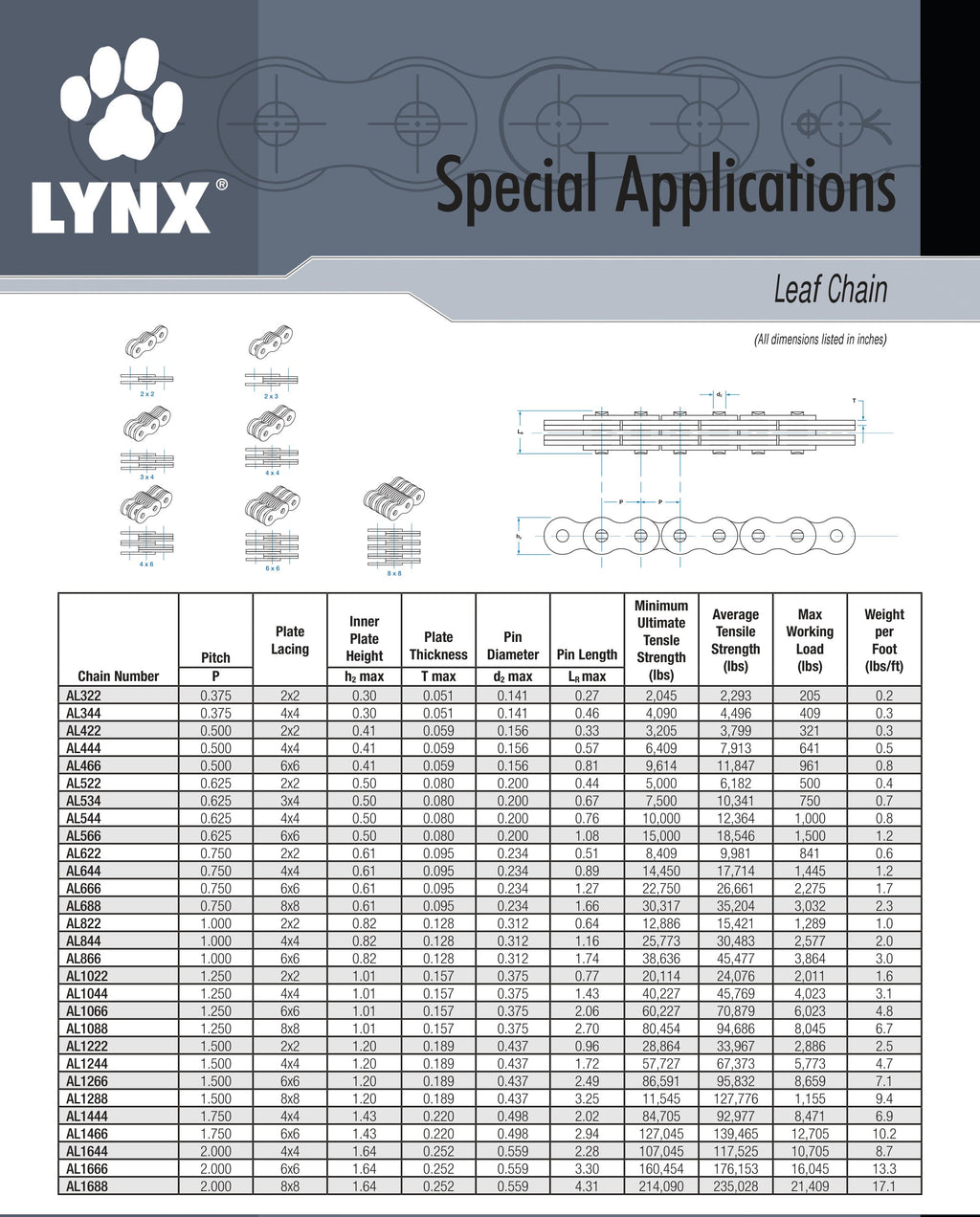

Specifications

Chain Size 1022
Series AL1022 Series
Number of strands 1
Material Steel
Pitch 100.00
Pin Diameter 0.375
Pin Length 0.77
Link Plate Height 1.01
Plate Thickness 0.157
Average Tensile Strength (lbs.) 24076
Max Working Load (lbs.) 2011
Minimum Tensile Strength (lbs.) 20114
Lacing Pattern 2x2
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 1.6 lbs/ft
Total Reel Weight 80 lbs (50 ft × 1.6 lbs/ft)
GTIN 192056068704
