Lynx AL566 10' - Leaf Chain 10ft Reel


Price:
$ 139.51

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same AL566 family to join the chain ends after installation:

CONNECTING LINKS:
AL566 C/LAL566 RIV C/L

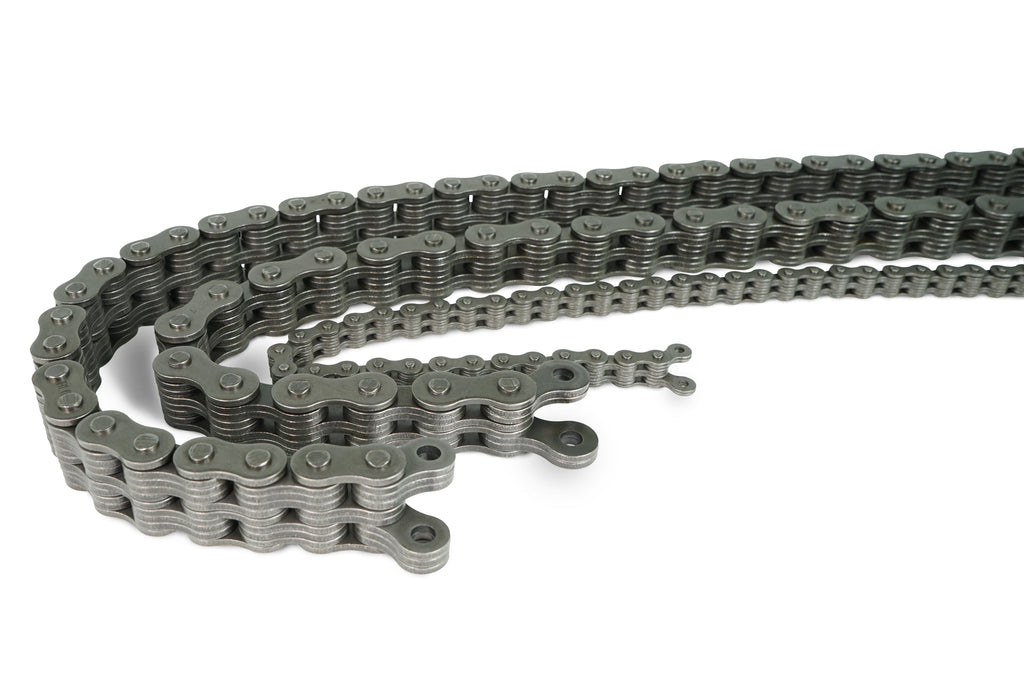

The Lynx AL566 10' is a 10-foot reel of leaf chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

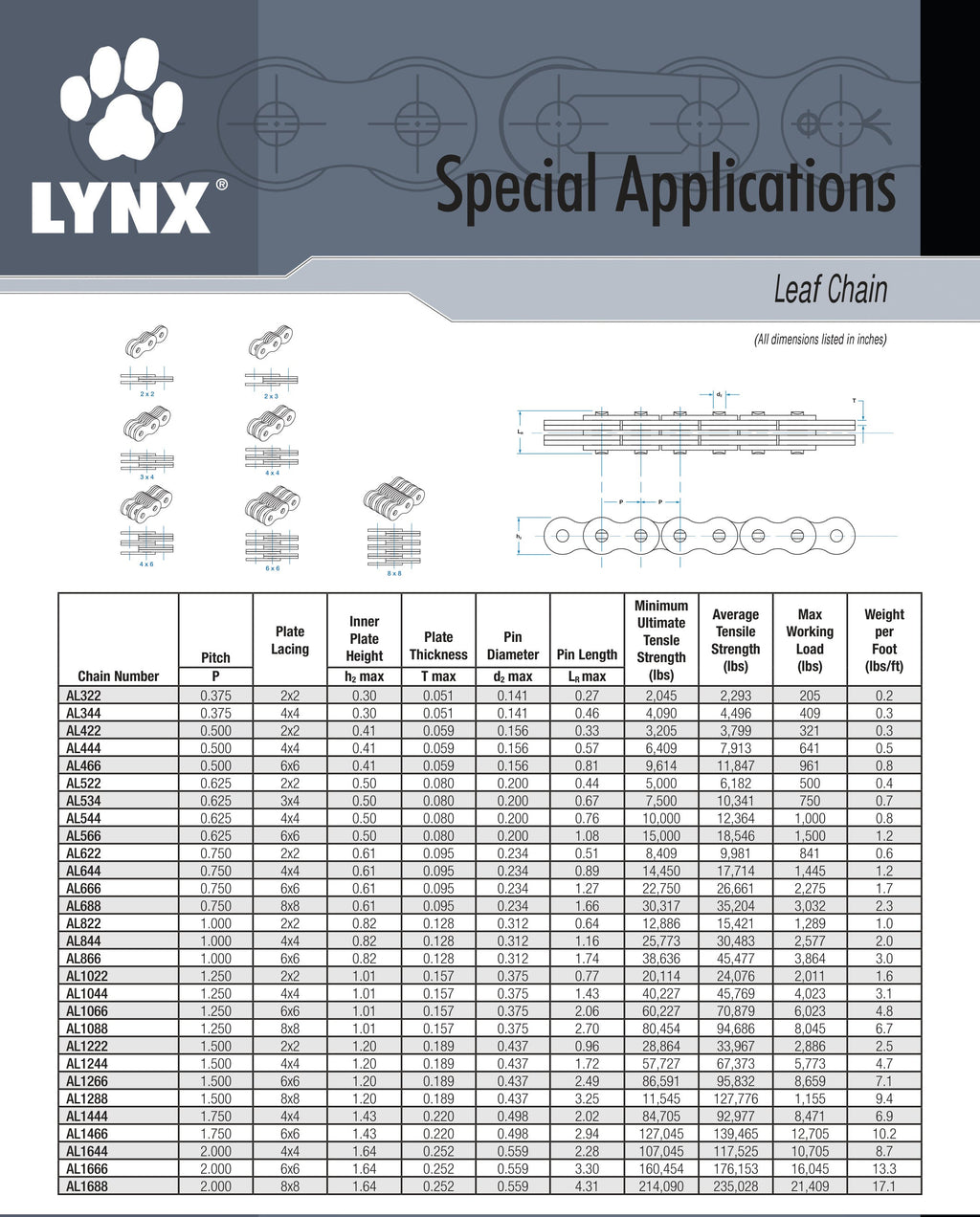

Specifications

Chain Size 566
Series AL566 Series
Number of strands 1
Material Steel
Pitch 50.00
Pin Diameter 0.2
Pin Length 1.08
Link Plate Height 0.5
Plate Thickness 0.08
Average Tensile Strength (lbs.) 18546
Max Working Load (lbs.) 15000
Minimum Tensile Strength (lbs.) 15000
Lacing Pattern 6x6
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 1.2 lbs/ft
Total Reel Weight 12 lbs (10 ft × 1.2 lbs/ft)
GTIN 192056069299
