Description

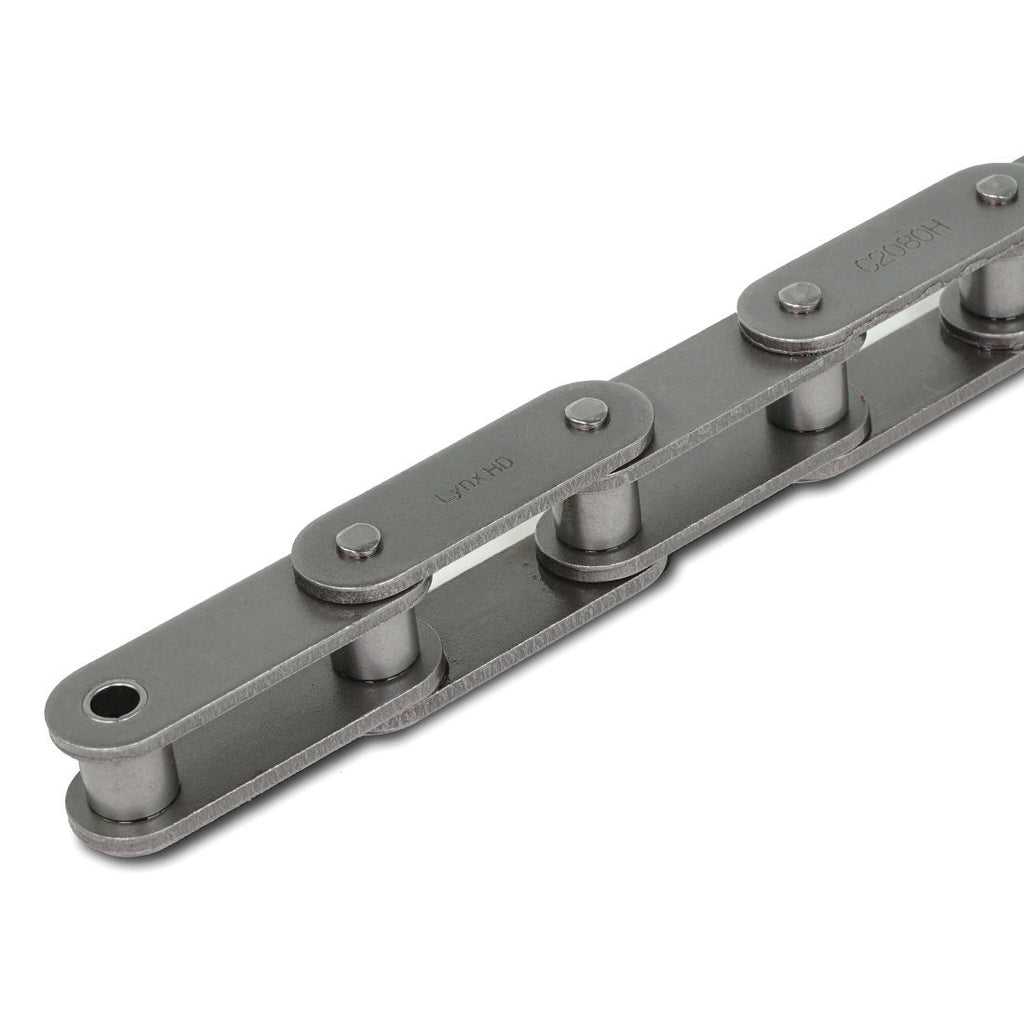

The Lynx C2050SS RIV 10' is a 10-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.
Specifications
| Chain Size | 2050 |
| Series | C2050 Series |
| Number of strands | 1 |
| Material | Stainless Steel |
| Pitch | 1.25 |
| Roller Diameter | 0.4 |
| Pin Diameter | 0.2 |
| Pin Length | 0.82 |
| Link Plate Height | 0.59 |
| Plate Thickness | 0.08 |
| Width Between Inner Plates | 0.37 |
| Average Tensile Strength (lbs.) | 6317 |
| Max Working Load (lbs.) | 841 |
| Minimum Tensile Strength (lbs.) | 5045 |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Cottered Pin-length (Max) | 0.87 |
| Weight per Foot | 1.8 lbs/ft |
| Total Reel Weight | 18 lbs (10 ft × 1.8 lbs/ft) |
| GTIN | 192056072763 |
Compatible Components
Matched Sprockets
- BlackStar 2050B11 - 2050 Pitch B-Hub Sprocket - 11 Tooth
- BlackStar 2050B12 - 2050 Pitch B-Hub Sprocket - 12 Tooth
- BlackStar 2050B13 - 2050 Pitch B-Hub Sprocket - 13 Tooth
- BlackStar 2050B14 - 2050 Pitch B-Hub Sprocket - 14 Tooth
Connecting Links
- Lynx C2050 C/P C/L - Connecting Link
- Lynx C2050 C/P C/L - Connecting Link
- Lynx C2050 S/C C/L - Connecting Link
- Lynx C2050 S/C C/L - Connecting Link
Shop all #50 ANSI Roller Chain & Sprockets ›
Offset Links
Shop all #50 ANSI Roller Chain & Sprockets ›
Matched Sprockets
- BlackStar 2050B11 - 2050 Pitch B-Hub Sprocket - 11 Tooth
- BlackStar 2050B12 - 2050 Pitch B-Hub Sprocket - 12 Tooth
- BlackStar 2050B13 - 2050 Pitch B-Hub Sprocket - 13 Tooth
- BlackStar 2050B14 - 2050 Pitch B-Hub Sprocket - 14 Tooth
Connecting Links
- Lynx C2050 C/P C/L - Connecting Link
- Lynx C2050 C/P C/L - Connecting Link
- Lynx C2050 S/C C/L - Connecting Link
- Lynx C2050 S/C C/L - Connecting Link
Shop all #50 ANSI Roller Chain & Sprockets ›
Offset Links
Shop all #50 ANSI Roller Chain & Sprockets ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
