Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same C2052 family to join the chain ends after installation:
C2052 O/L

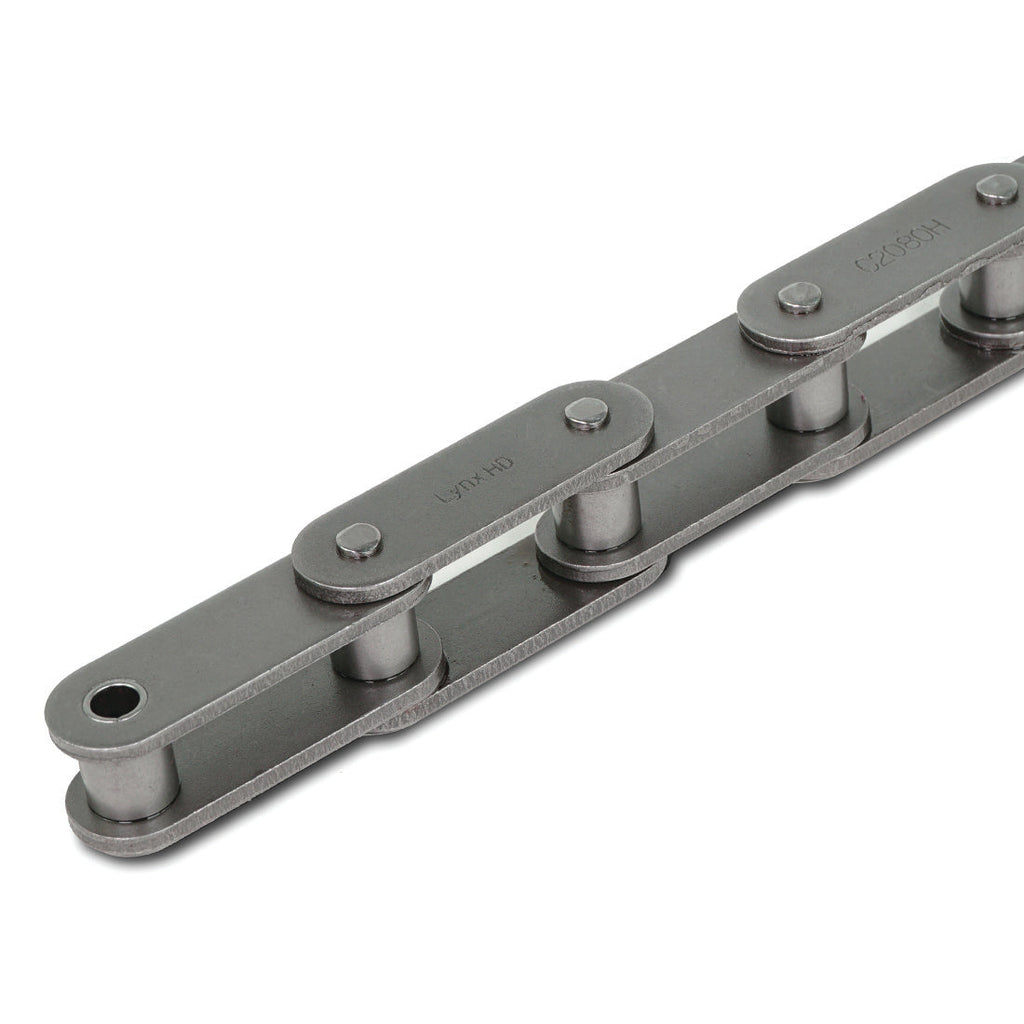

The Lynx C2052 RIV 100' is a 100-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

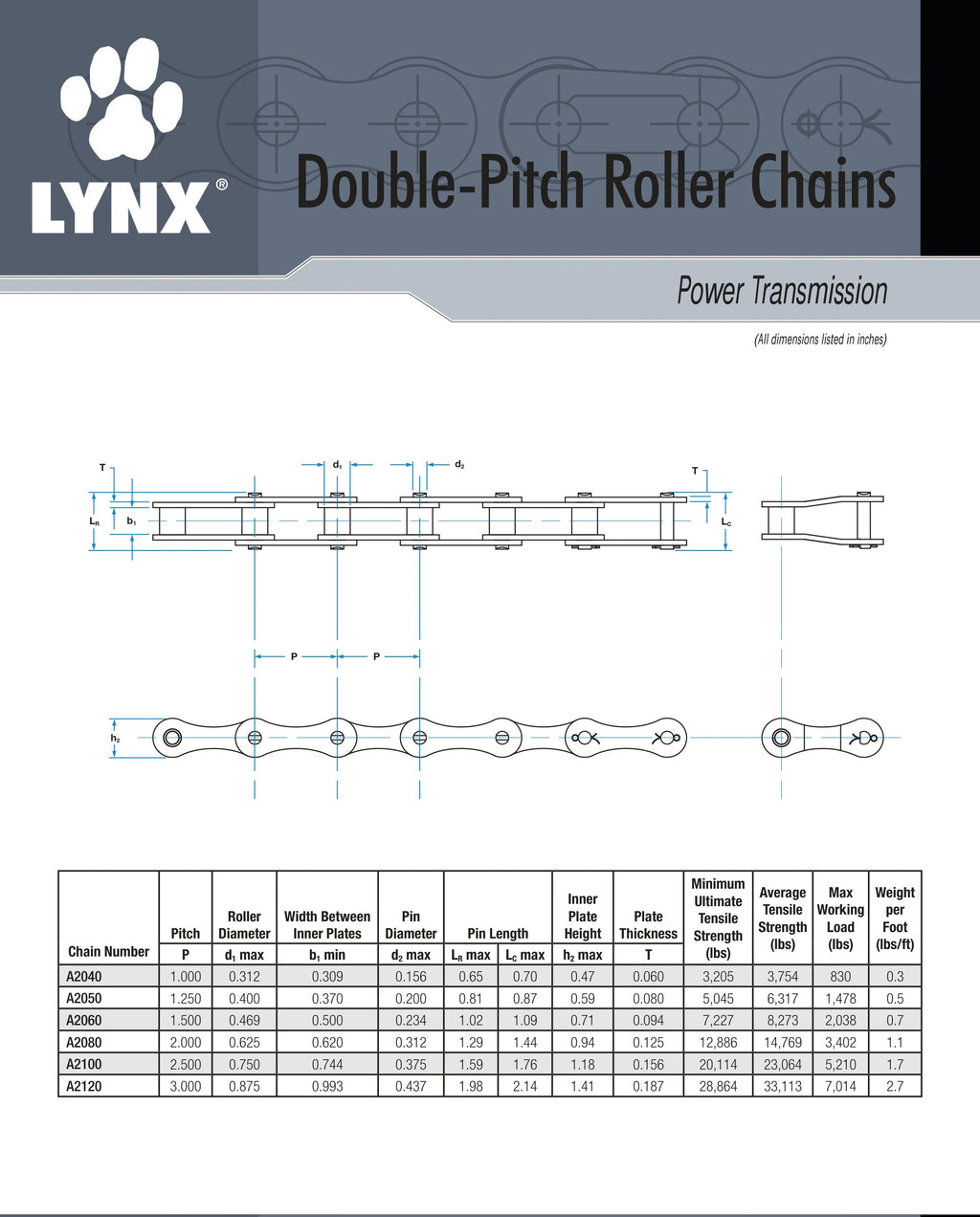

Specifications
| Chain Size | 2052 |
| Series | C2050 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.25 |
| Roller Diameter | 0.75 |
| Pin Diameter | 0.2 |
| Pin Length | 0.82 |
| Link Plate Height | 0.59 |
| Plate Thickness | 0.08 |
| Width Between Inner Plates | 0.37 |
| Average Tensile Strength (lbs.) | 6317 |
| Max Working Load (lbs.) | 841 |
| Minimum Tensile Strength (lbs.) | 5045 |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Cottered Pin-length (Max) | 0.87 |
| Weight per Foot | 0.9 lbs/ft |
| Total Reel Weight | 90 lbs (100 ft × 0.9 lbs/ft) |
| GTIN | 192056072794 |
Compatible Components
Matched Sprockets
- BlackStar 100A10 - 100 Pitch A-Plate Sprocket - 10 Tooth
- BlackStar 100A10 - 100 Pitch A-Plate Sprocket - 10 Tooth
- BlackStar 100A10 2.046 - 100 Pitch A-Plate Sprocket - 10 Tooth - 2.046" Bore
- BlackStar 100A10 2.046 - 100 Pitch A-Plate Sprocket - 10 Tooth - 2.046" Bore
Shop all 1830 matched options ›
Connecting Links
- Lynx HD100 C/P C/L - Connecting Link
- Lynx HD100 C/P C/L - Connecting Link
- Lynx HD100 SK1 C/L ATT - Connecting Link
- Lynx HD100-2 C/P C/L - Connecting Link
Shop all 29 matched options ›
Offset Links
- Lynx HD100 O/L - Offset Link
- Lynx HD100 O/L - Offset Link
- Lynx HD100-2 O/L - Offset Link
- Lynx HD100-2 O/L - Offset Link
Shop all 28 matched options ›
Matched Sprockets
- BlackStar 100A10 - 100 Pitch A-Plate Sprocket - 10 Tooth
- BlackStar 100A10 - 100 Pitch A-Plate Sprocket - 10 Tooth
- BlackStar 100A10 2.046 - 100 Pitch A-Plate Sprocket - 10 Tooth - 2.046" Bore
- BlackStar 100A10 2.046 - 100 Pitch A-Plate Sprocket - 10 Tooth - 2.046" Bore
Shop all 1830 matched options ›
Connecting Links
- Lynx HD100 C/P C/L - Connecting Link
- Lynx HD100 C/P C/L - Connecting Link
- Lynx HD100 SK1 C/L ATT - Connecting Link
- Lynx HD100-2 C/P C/L - Connecting Link
Shop all 29 matched options ›
Offset Links
- Lynx HD100 O/L - Offset Link
- Lynx HD100 O/L - Offset Link
- Lynx HD100-2 O/L - Offset Link
- Lynx HD100-2 O/L - Offset Link
Shop all 28 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
