Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same C2080H family to join the chain ends after installation:
C2080H O/L

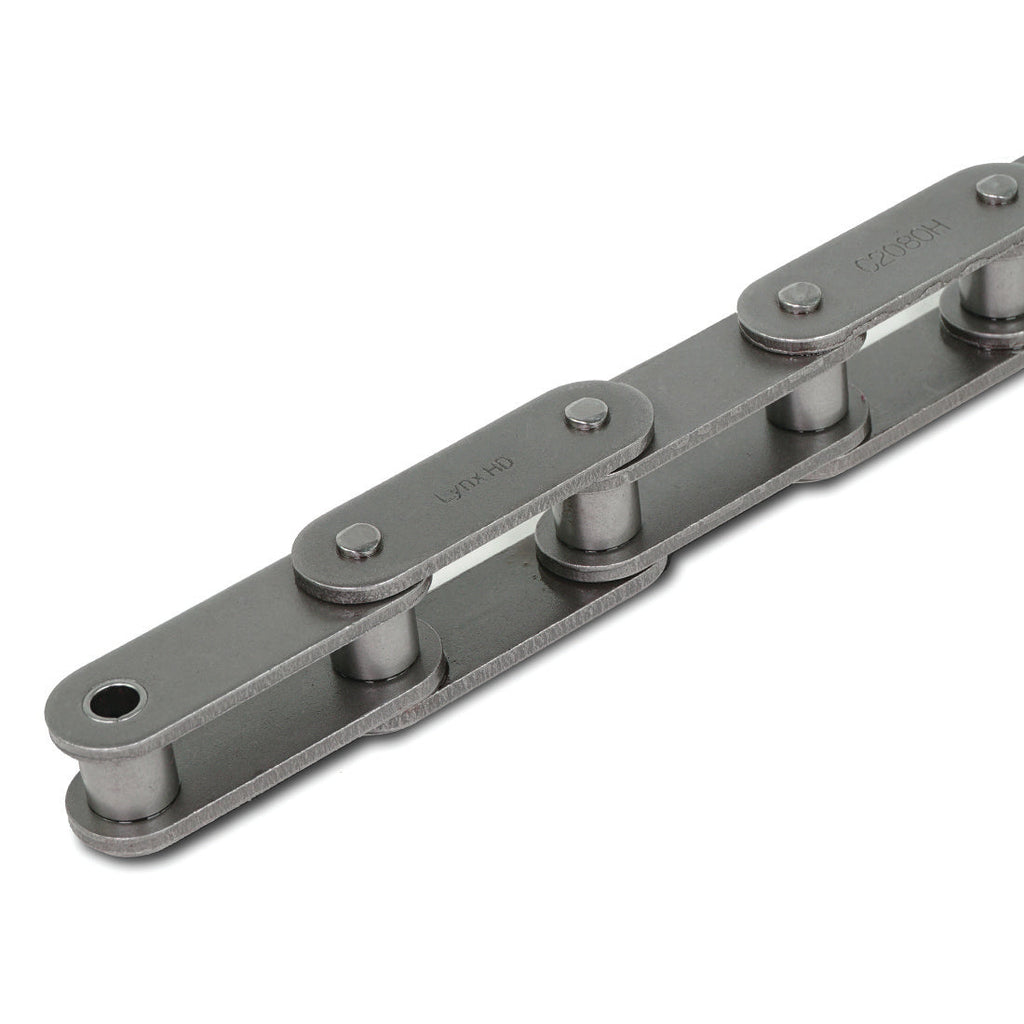

The Lynx C2080H RIV 10' is a 10-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.
Specifications
| Chain Size | 2080 |
| Series | C2080 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 2.00 |
| Roller Diameter | 0.625 |
| Pin Diameter | 0.312 |
| Pin Length | 1.43 |
| Link Plate Height | 0.95 |
| Plate Thickness | 0.156 |
| Width Between Inner Plates | 0.62 |
| Average Tensile Strength (lbs.) | 15736 |
| Max Working Load (lbs.) | 2148 |
| Minimum Tensile Strength (lbs.) | 12886 |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Cottered Pin-length (Max) | 1.55 |
| Weight per Foot | 2.3 lbs/ft |
| Total Reel Weight | 23 lbs (10 ft × 2.3 lbs/ft) |
| GTIN | 192056073036 |
