Lynx C2160H RIV 10' - Extended Pitch Chain 10ft Reel


Price:
$ 490.56

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same C2160H family to join the chain ends after installation:

CONNECTING LINKS:
C2160H C/P C/L
OFFSET LINKS:
C2160H O/L

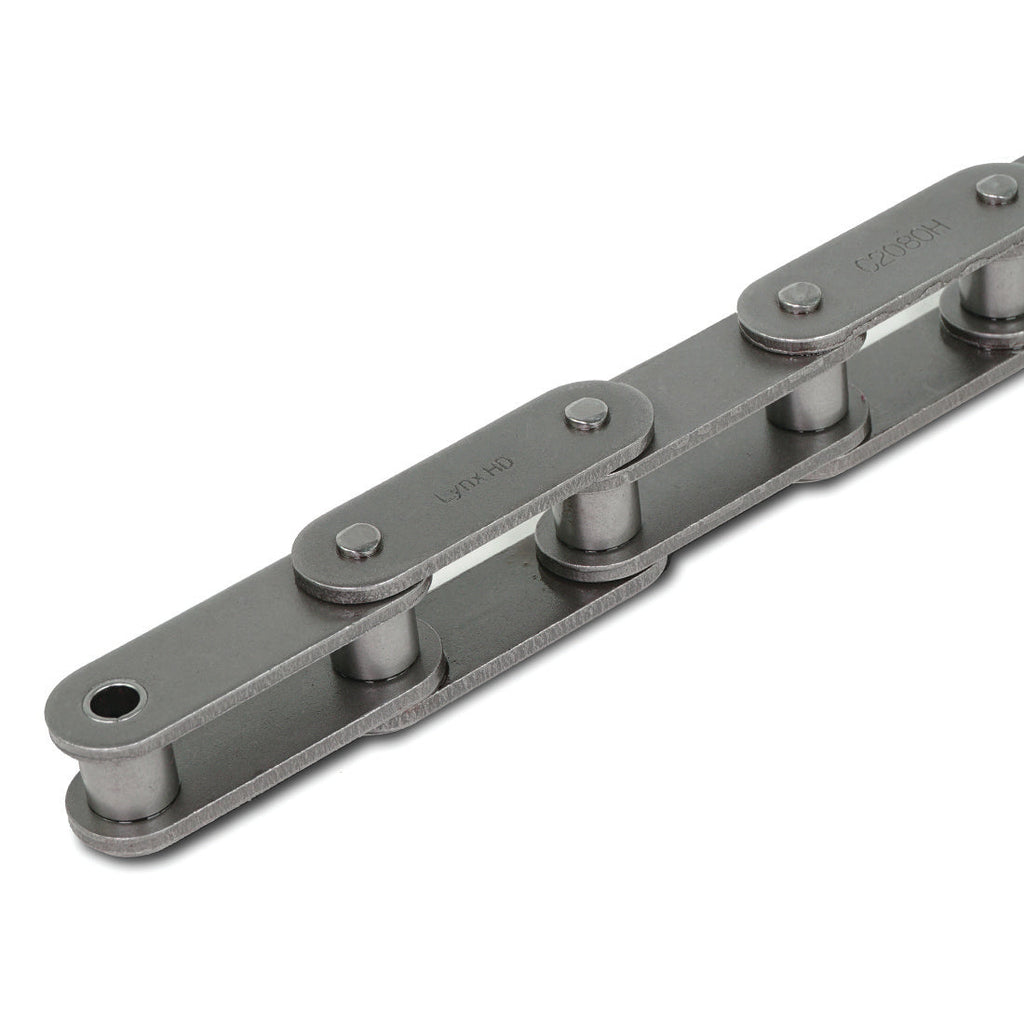

The Lynx C2160H RIV 10' is a 10-foot reel of extended pitch chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

Specifications

Chain Size 2160
Series C 2160 Series
Number of strands 1
Material Steel
Pitch 4.00
Roller Diameter 1.125
Pin Diameter 0.562
Pin Length 2.55
Link Plate Height 1.88
Plate Thickness 0.25
Width Between Inner Plates 1.25
Average Tensile Strength (lbs.) 62697
Max Working Load (lbs.) 8591
Minimum Tensile Strength (lbs.) 51545
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Cottered Pin-length (Max) 2.74
Weight per Foot 6.1 lbs/ft
Total Reel Weight 61 lbs (10 ft × 6.1 lbs/ft)
GTIN 192056073203
