Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD100 family to join the chain ends after installation:
HD100 O/L

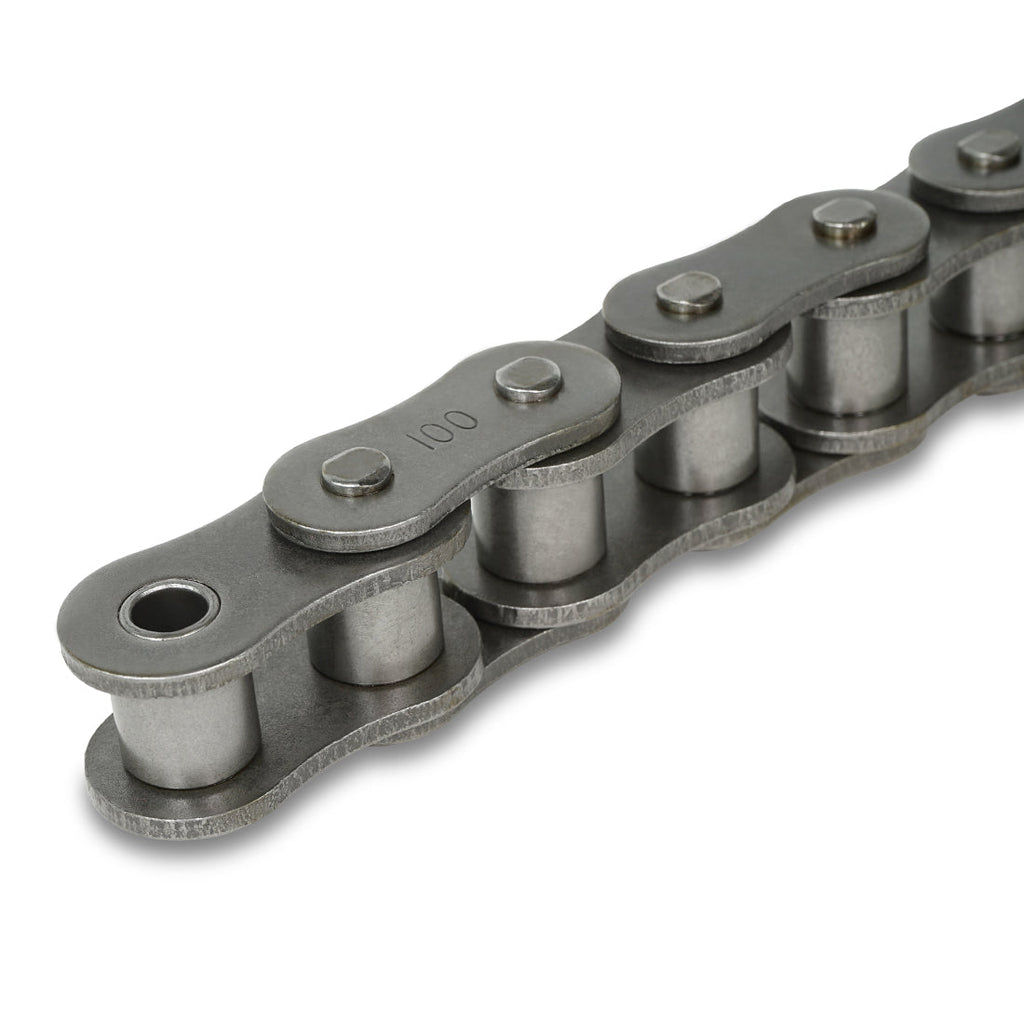

The Lynx HD100 COTT 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

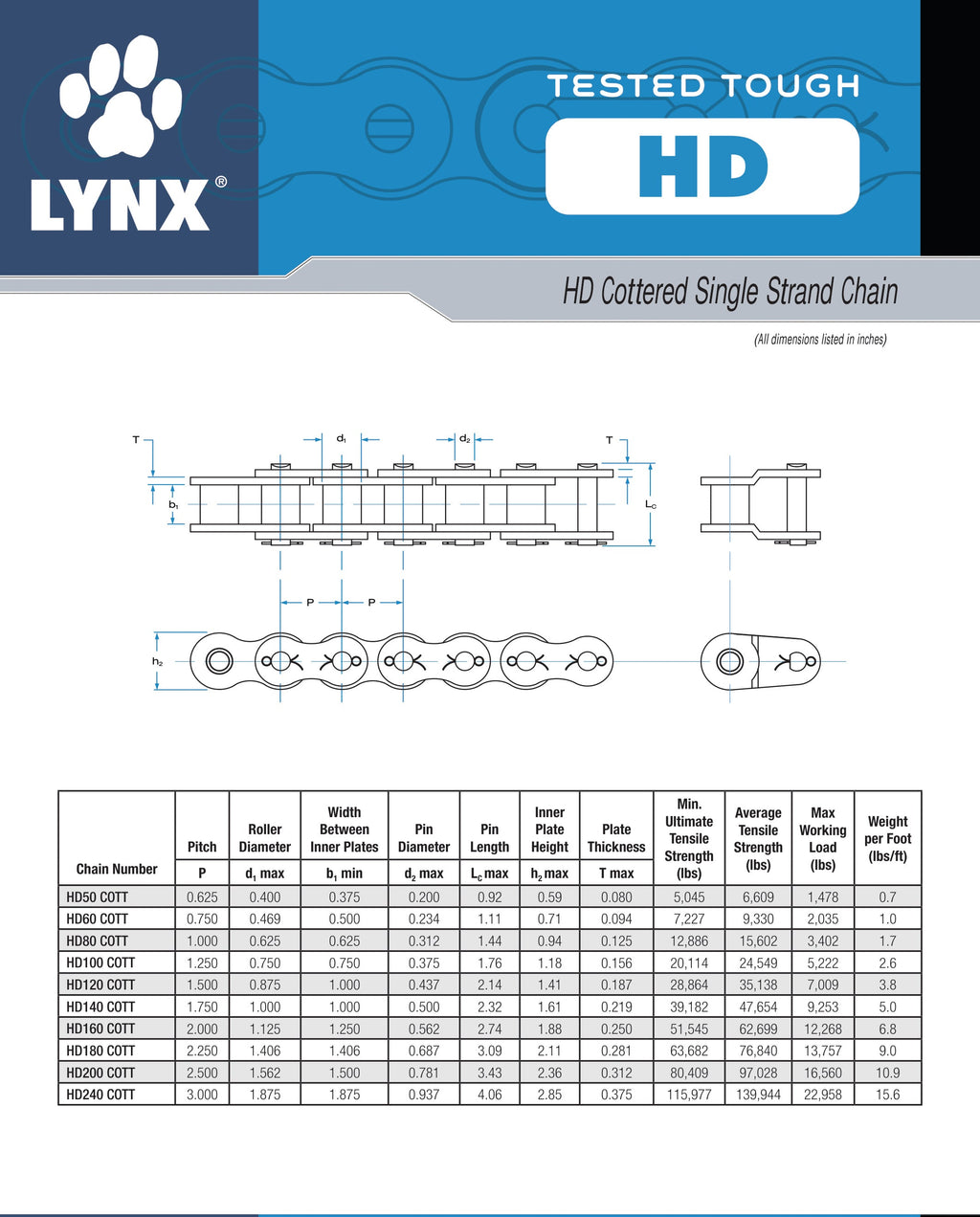

Specifications
| Chain Size | 100 |
| Series | HD100 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.25 |
| Roller Diameter | 0.75 |
| Pin Diameter | 0.375 |
| Pin Length | 1.85 |
| Link Plate Height | 1.18 |
| Plate Thickness | 0.156 |
| Width Between Inner Plates | 0.75 |
| Average Tensile Strength (lbs.) | 24549 |
| Max Working Load (lbs.) | 5222 |
| Minimum Tensile Strength (lbs.) | 20114 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 2.6 lbs/ft |
| Total Reel Weight | 26 lbs (10 ft × 2.6 lbs/ft) |
| GTIN | 192056073531 |
