Lynx HD100 RIV 50' - Roller Chain 50ft Reel


Price:
$ 1,095.78

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same HD100 family to join the chain ends after installation:

OFFSET LINKS:
HD100 O/L

The Lynx HD100 RIV 50' is a 50-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

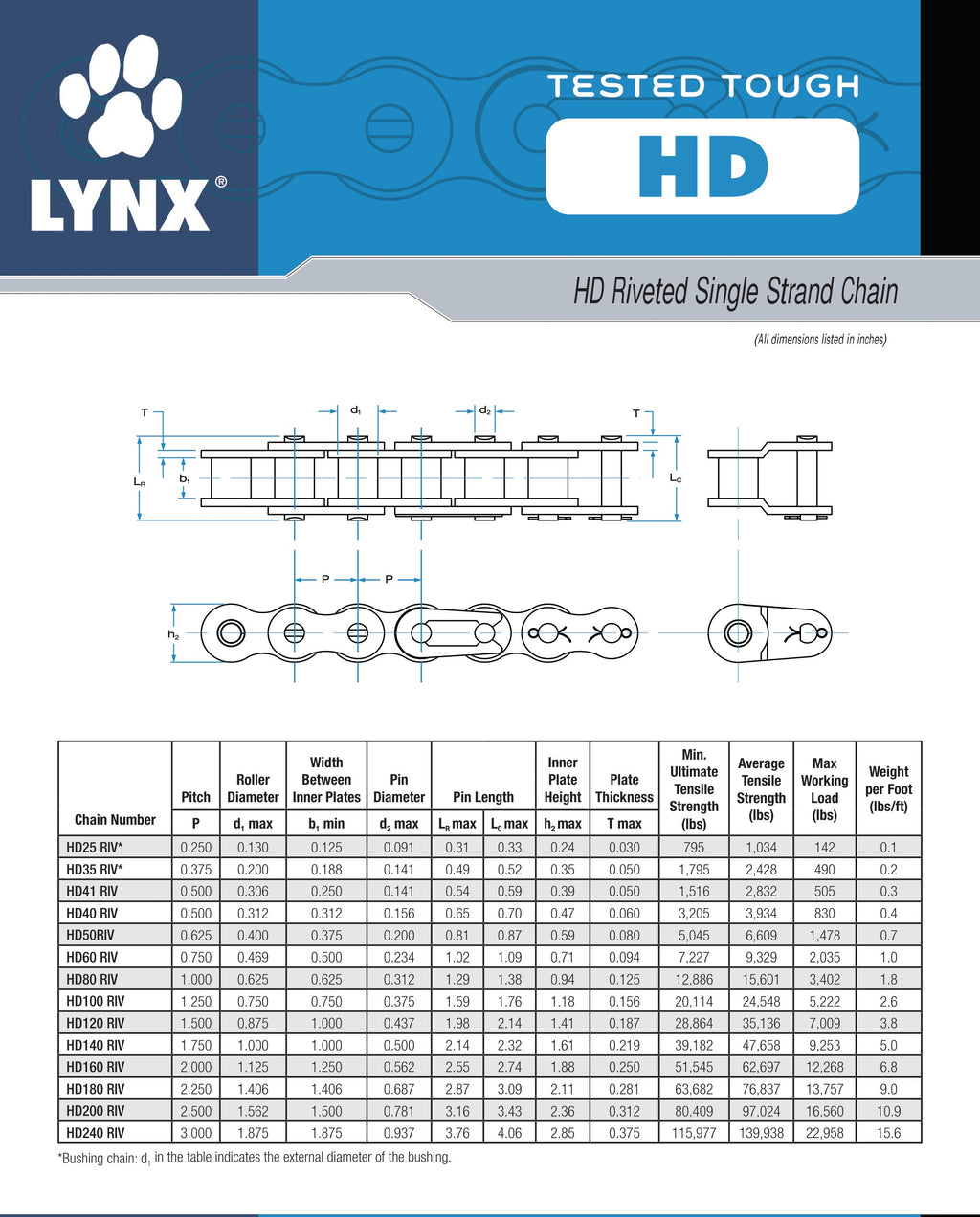

Specifications

Chain Size 100
Series HD100 Series
Number of strands 1
Material Steel
Pitch 1.25
Roller Diameter 0.75
Pin Diameter 0.375
Pin Length 1.62
Link Plate Height 1.18
Plate Thickness 0.156
Width Between Inner Plates 0.75
Average Tensile Strength (lbs.) 24548
Max Working Load (lbs.) 5222
Minimum Tensile Strength (lbs.) 20114
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 2.6 lbs/ft
Total Reel Weight 130 lbs (50 ft × 2.6 lbs/ft)
GTIN 192056073562
