Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD10B family to join the chain ends after installation:
HD10B O/L

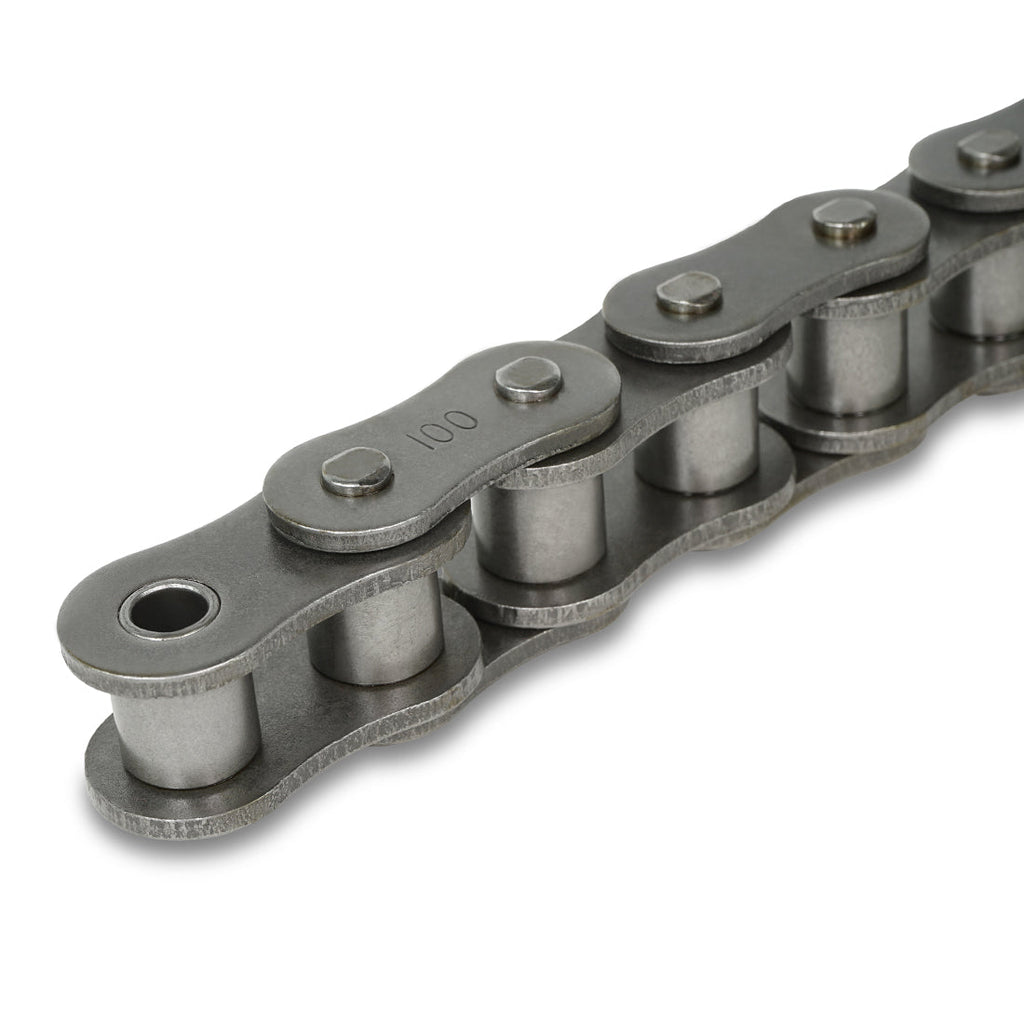

The Lynx HD10B RIV 50' is a 50-foot reel of british standard chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

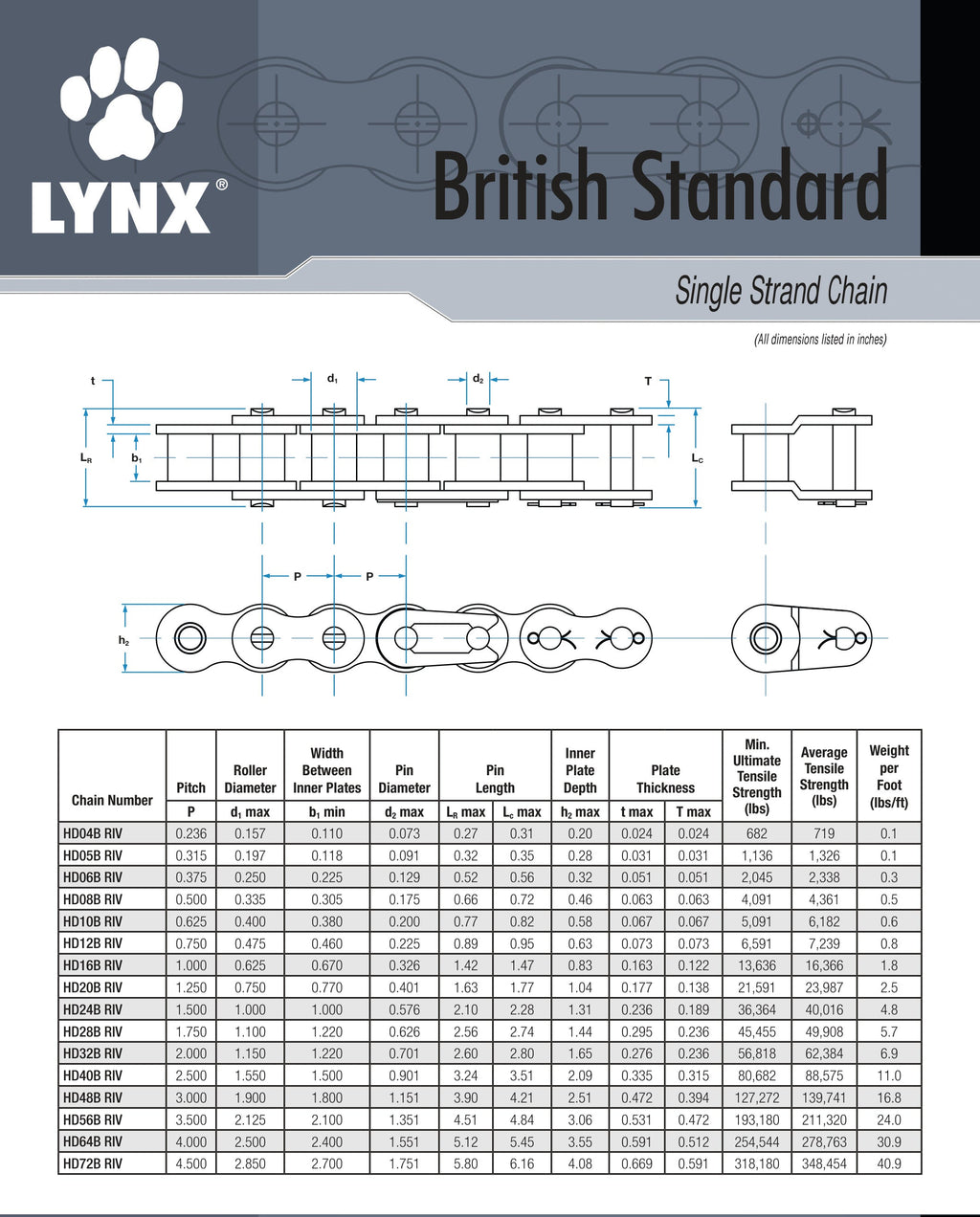

Specifications
| Chain Size | 10B |
| Series | 10B Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 0.63 |
| Roller Diameter | 0.4 |
| Pin Diameter | 0.2 |
| Pin Length | 0.77 |
| Link Plate Height | 0.58 |
| Plate Thickness | 0.067 |
| Inner Plate Thickness | 0.067 |
| Width Between Inner Plates | 0.38 |
| Average Tensile Strength (lbs.) | 6182 |
| Minimum Tensile Strength (lbs.) | 5091 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.6 lbs/ft |
| Total Reel Weight | 30 lbs (50 ft × 0.6 lbs/ft) |
| GTIN | 192056073746 |
Compatible Components
Matched Sprockets
- 50A15 Roller Chain Sprocket, #50 Chain, 15 Teeth, A Hub
- 50A20 Roller Chain Sprocket, #50 Chain, 2 Teeth, A Hub
- 50A28 Roller Chain Sprocket, #50 Chain, 28 Teeth, A Hub
- 50A30 Roller Chain Sprocket, #50 Chain, 3 Teeth, A Hub
Shop all 2795 matched options ›
Connecting Links
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
Shop all 28 matched options ›
Offset Links
- Lynx HD50 O/L - Offset Link
- Lynx HD50 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
Shop all 24 matched options ›
Matched Sprockets
- 50A15 Roller Chain Sprocket, #50 Chain, 15 Teeth, A Hub
- 50A20 Roller Chain Sprocket, #50 Chain, 2 Teeth, A Hub
- 50A28 Roller Chain Sprocket, #50 Chain, 28 Teeth, A Hub
- 50A30 Roller Chain Sprocket, #50 Chain, 3 Teeth, A Hub
Shop all 2795 matched options ›
Connecting Links
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 C/P C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
- Lynx HD50 S/C C/L - Connecting Link
Shop all 28 matched options ›
Offset Links
- Lynx HD50 O/L - Offset Link
- Lynx HD50 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
- Lynx HD50-2 O/L - Offset Link
Shop all 24 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
