Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD12B family to join the chain ends after installation:
HD12B S/C C/L
HD12B O/L

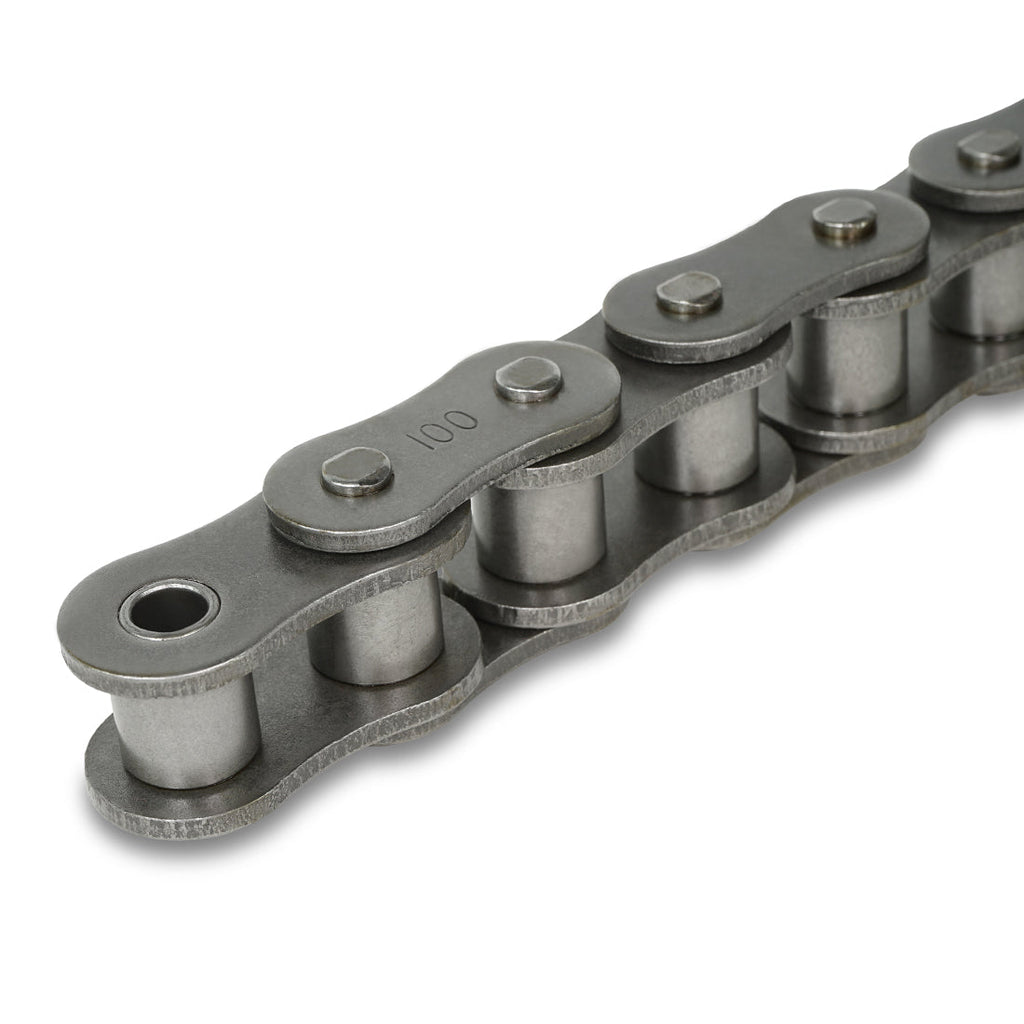

The Lynx HD12B RIV 50' is a 50-foot reel of british standard chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

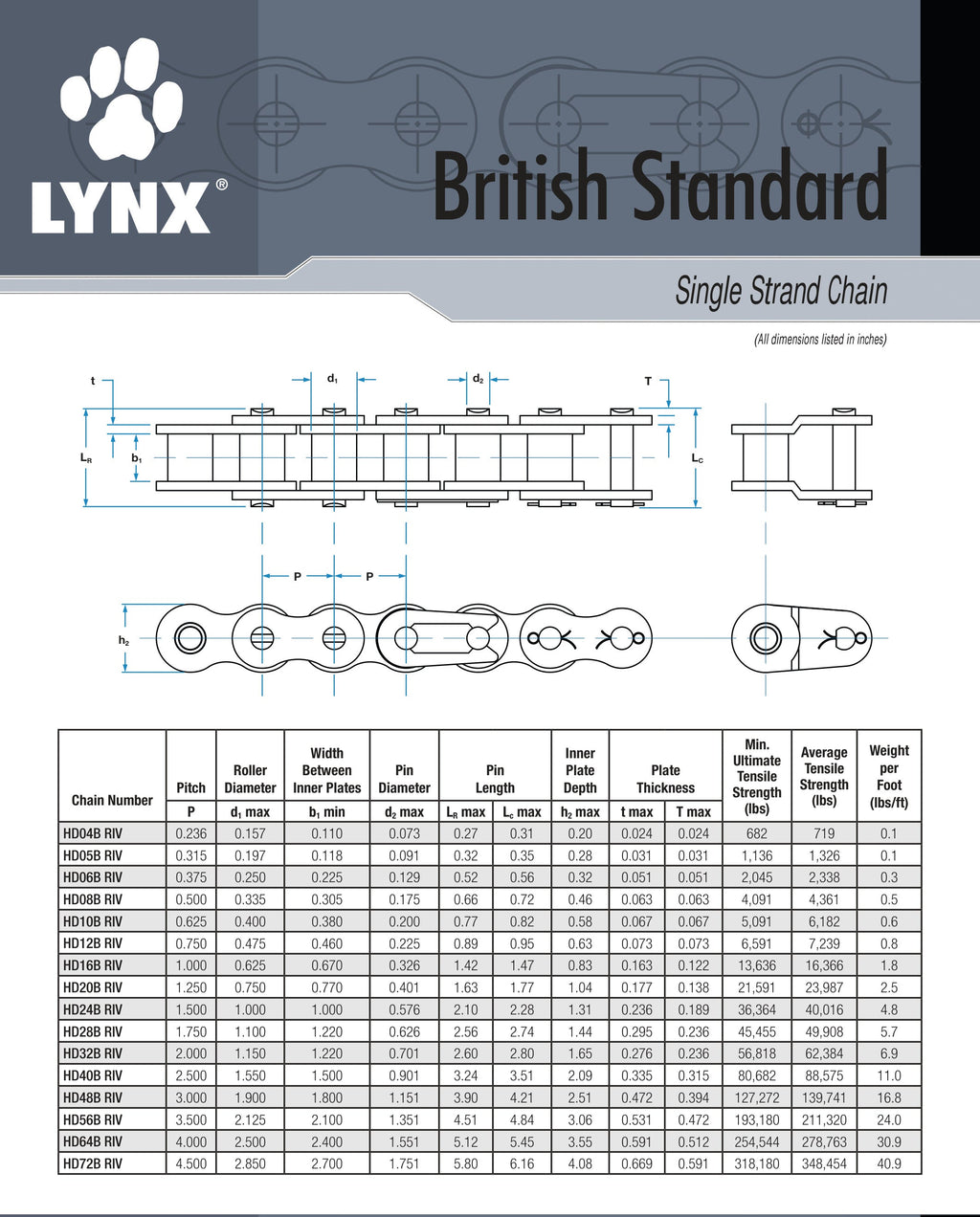

Specifications
| Chain Size | 12B |
| Series | 12B Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 0.75 |
| Roller Diameter | 0.475 |
| Pin Diameter | 0.275 |
| Pin Length | 1.65 |
| Link Plate Height | 0.63 |
| Plate Thickness | 0.073 |
| Inner Plate Thickness | 0.073 |
| Width Between Inner Plates | 0.46 |
| Transverse Pitch | 0.77 |
| Average Tensile Strength (lbs.) | 7239 |
| Minimum Tensile Strength (lbs.) | 6591 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.8 lbs/ft |
| Total Reel Weight | 40 lbs (50 ft × 0.8 lbs/ft) |
| GTIN | 192056074033 |
Compatible Components
