Lynx HD140-2 RIV 10' - Roller Chain 10ft Reel


Price:
$ 905.91

Description

âš¡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same HD140 family to join the chain ends after installation:

CONNECTING LINKS:
HD140-2 C/P C/L
OFFSET LINKS:
HD140-2 O/L

The Lynx HD140-2 RIV 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

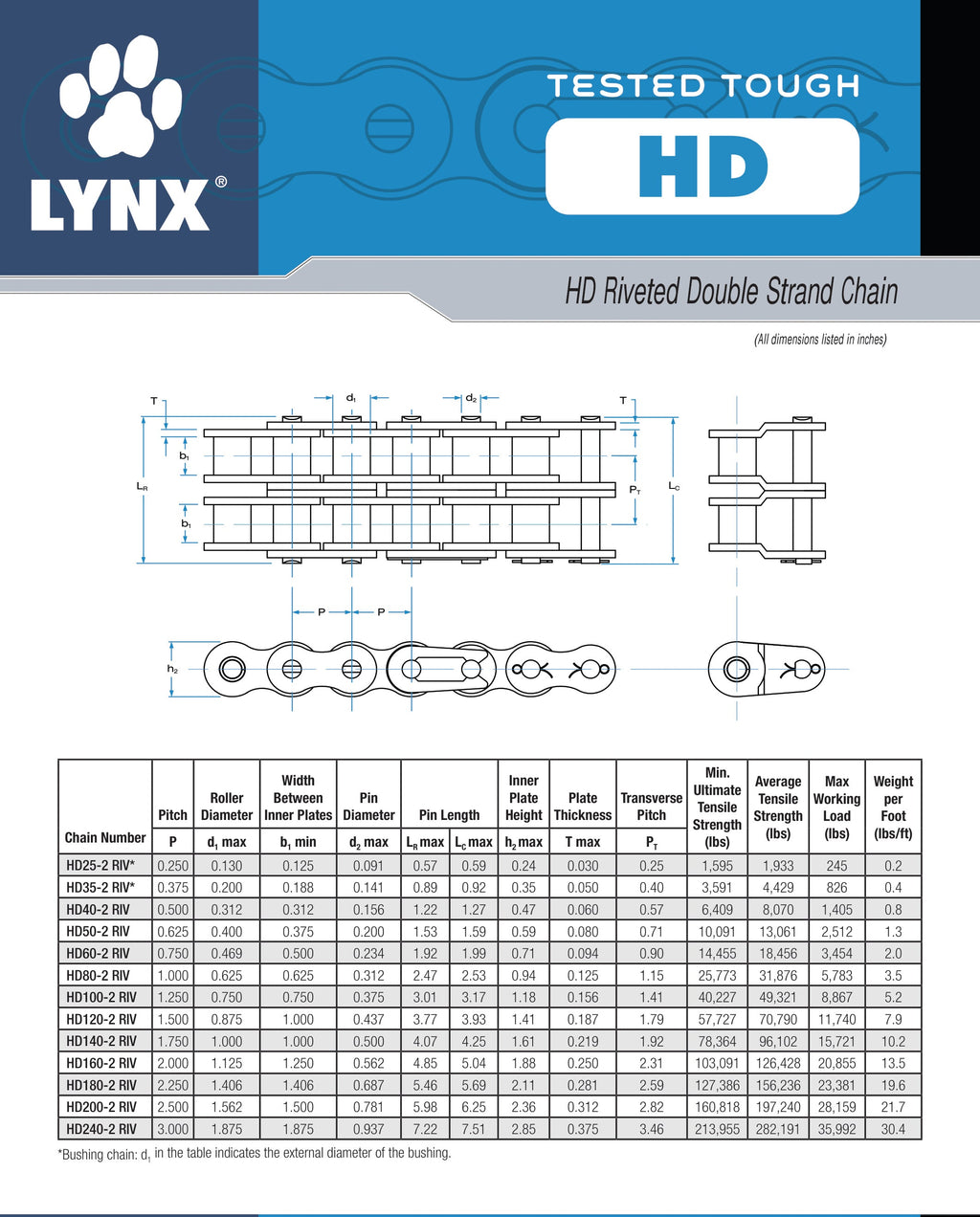

Specifications

Chain Size 140
Series HD140 Series
Number of strands 2
Material Steel
Pitch 1.75
Roller Diameter 1
Pin Diameter 0.5
Pin Length 4.38
Link Plate Height 1.61
Plate Thickness 0.25
Width Between Inner Plates 1
Transverse Pitch 2.06
Average Tensile Strength (lbs.) 98398
Max Working Load (lbs.) 16684
Minimum Tensile Strength (lbs.) 78364
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 10.2 lbs/ft
Total Reel Weight 102 lbs (10 ft × 10.2 lbs/ft)
GTIN 192056074187
