Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD140 family to join the chain ends after installation:
HD140 C/P C/L
HD140 O/L

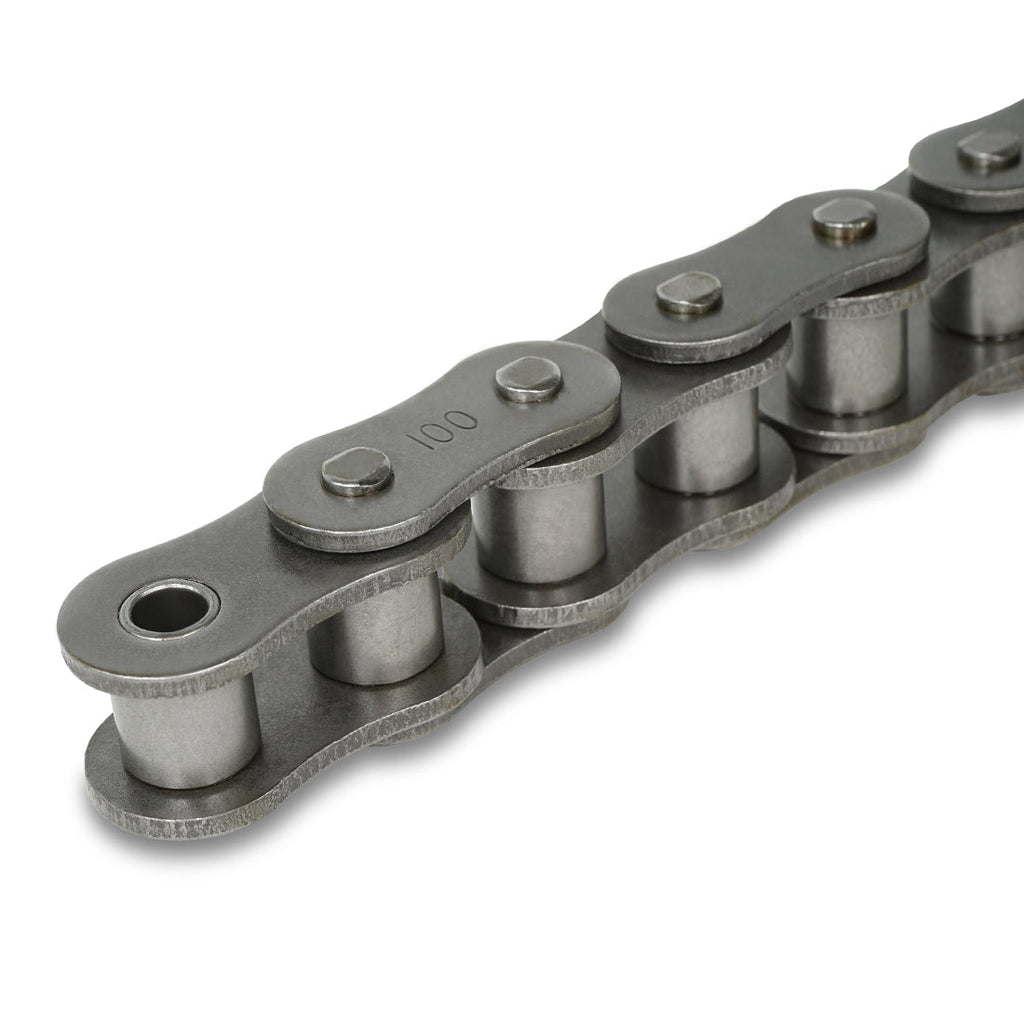

The Lynx HD140 COTT 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

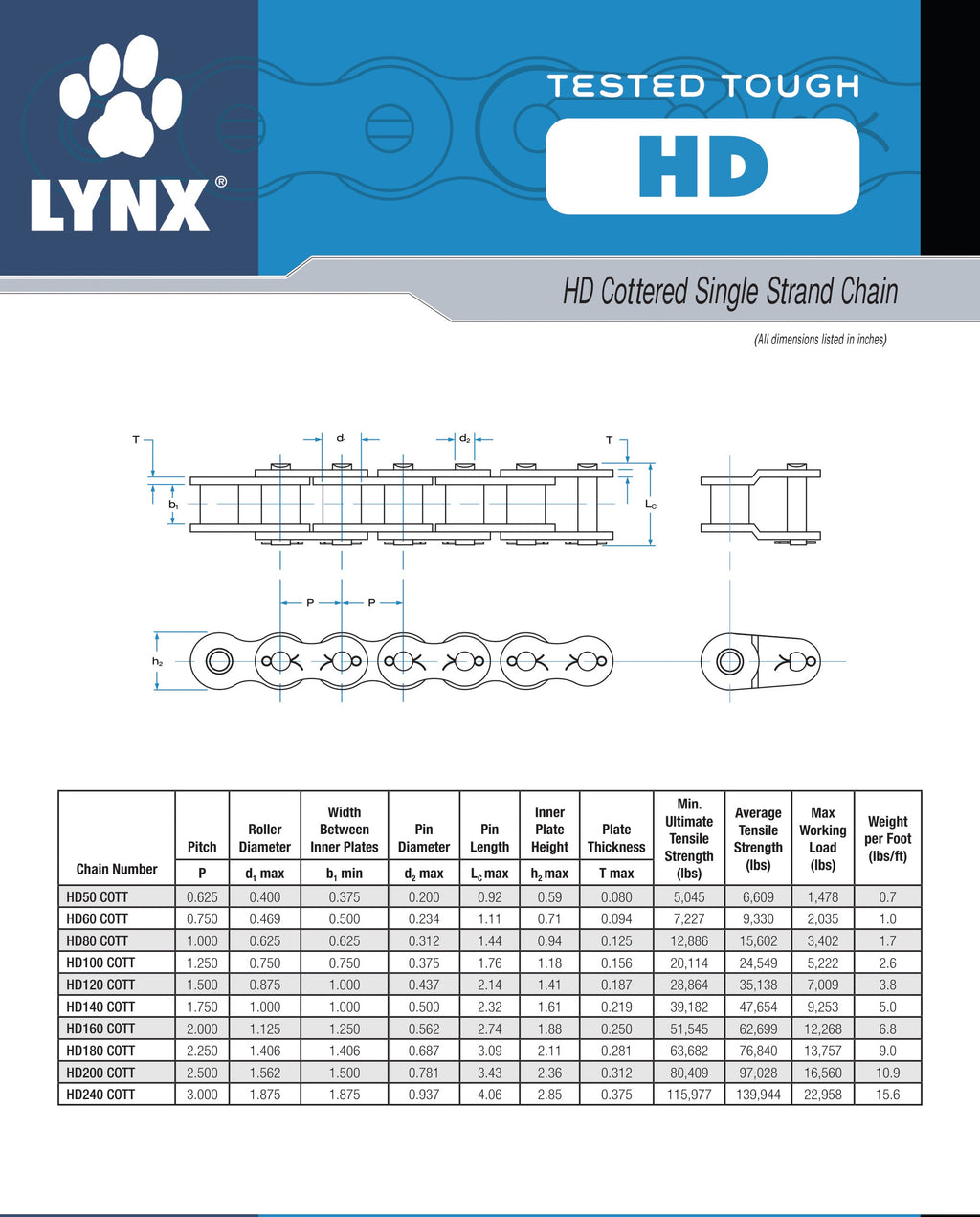

Specifications
| Chain Size | 140 |
| Series | HD140 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 1.75 |
| Roller Diameter | 1 |
| Pin Diameter | 0.5 |
| Pin Length | 2.49 |
| Link Plate Height | 1.61 |
| Plate Thickness | 0.219 |
| Width Between Inner Plates | 1 |
| Average Tensile Strength (lbs.) | 47654 |
| Max Working Load (lbs.) | 9253 |
| Minimum Tensile Strength (lbs.) | 39182 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 5 lbs/ft |
| Total Reel Weight | 50 lbs (10 ft × 5 lbs/ft) |
| GTIN | 192056074125 |
