Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD160 family to join the chain ends after installation:
HD160 C/P C/L
HD160 O/L
The Lynx HD160 COTT 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

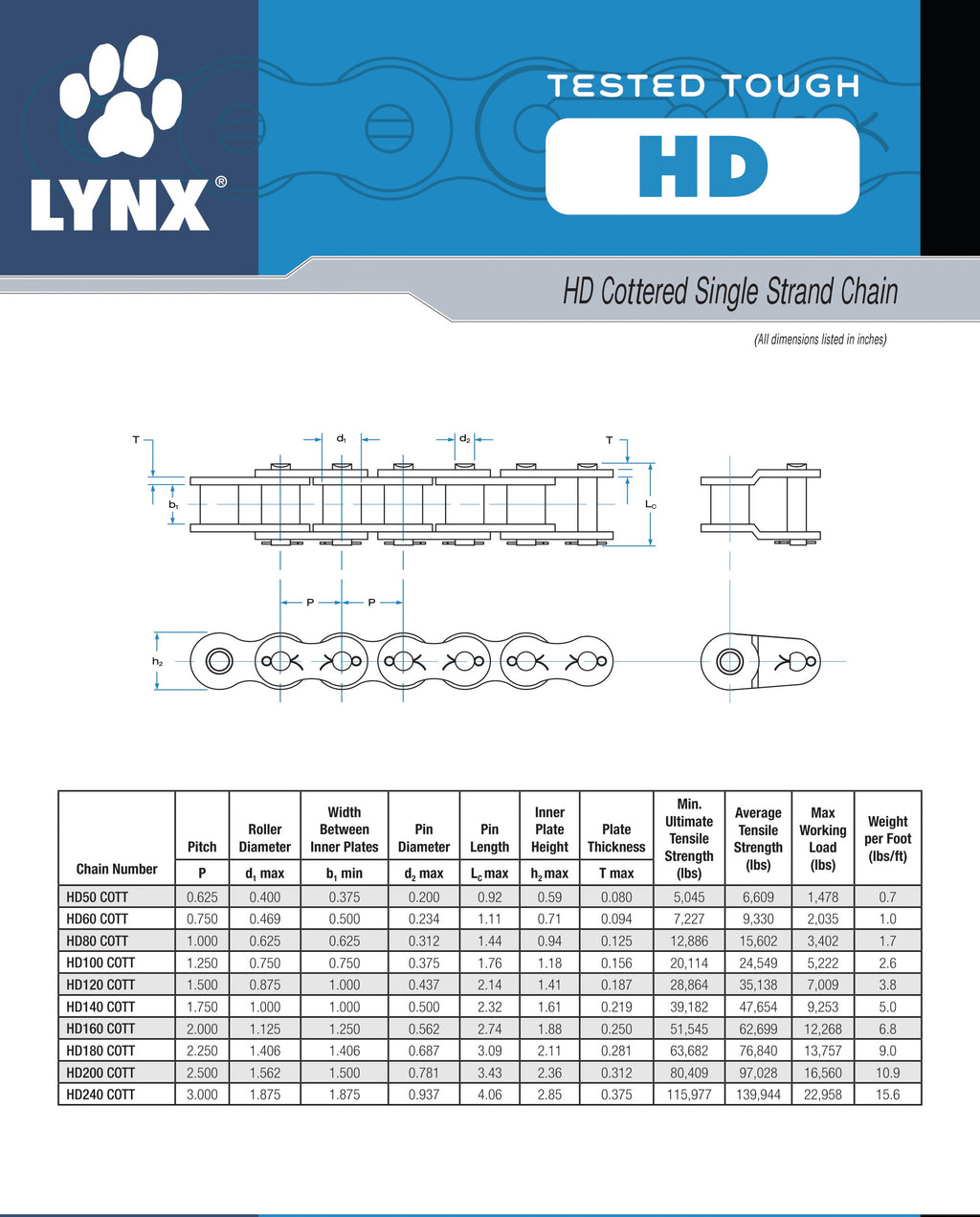

Specifications
| Chain Size | 160 |
| Series | HD160 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 2.00 |
| Roller Diameter | 1.125 |
| Pin Diameter | 0.562 |
| Pin Length | 2.94 |
| Link Plate Height | 1.88 |
| Plate Thickness | 0.25 |
| Width Between Inner Plates | 1.25 |
| Average Tensile Strength (lbs.) | 62699 |
| Max Working Load (lbs.) | 12268 |
| Minimum Tensile Strength (lbs.) | 51545 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 6.8 lbs/ft |
| Total Reel Weight | 68 lbs (10 ft × 6.8 lbs/ft) |
| GTIN | 192056074231 |
