Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD240 family to join the chain ends after installation:
HD240 C/P C/L
HD240 O/L

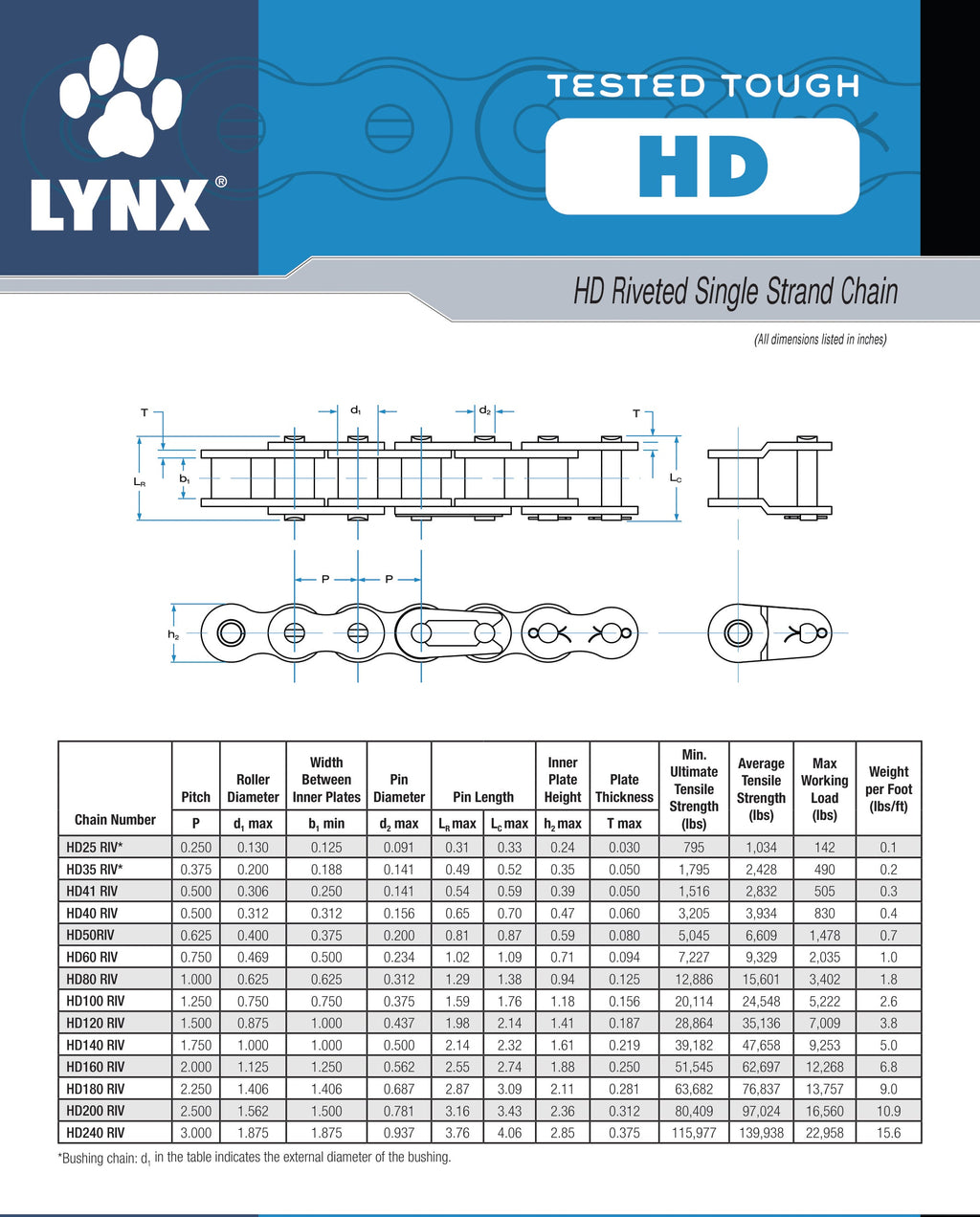

The Lynx HD240 RIV 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.
Specifications
| Chain Size | 240 |
| Series | HD240 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 3.00 |
| Roller Diameter | 1.875 |
| Pin Diameter | 0.937 |
| Pin Length | 3.86 |
| Link Plate Height | 2.85 |
| Plate Thickness | 0.375 |
| Width Between Inner Plates | 1.875 |
| Average Tensile Strength (lbs.) | 139938 |
| Max Working Load (lbs.) | 22958 |
| Minimum Tensile Strength (lbs.) | 115977 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 15.6 lbs/ft |
| Total Reel Weight | 156 lbs (10 ft × 15.6 lbs/ft) |
| GTIN | 192056074705 |
Compatible Components
Matched Sprockets
- BlackStar 240C35 - 240 Pitch C-Hub Sprocket - 35 Tooth
- BlackStar 240C35 - 240 Pitch C-Hub Sprocket - 35 Tooth
- BlackStar 240C40 - 240 Pitch C-Hub Sprocket - 40 Tooth
- BlackStar 240C40 - 240 Pitch C-Hub Sprocket - 40 Tooth
Shop all 38 matched options ›
Connecting Links
- Lynx HD240 C/P C/L - Connecting Link
- Lynx HD240 C/P C/L - Connecting Link
- Lynx XD240 C/P C/L - Connecting Link
- Lynx XD240 C/P C/L - Connecting Link
Shop all #240 ANSI Roller Chain & Sprockets ›
Offset Links
- Lynx HD240 O/L - Offset Link
- Lynx HD240 O/L - Offset Link
- Lynx XD240 O/L - Offset Link
- Lynx XD240 O/L - Offset Link
Shop all #240 ANSI Roller Chain & Sprockets ›
Matched Sprockets
- BlackStar 240C35 - 240 Pitch C-Hub Sprocket - 35 Tooth
- BlackStar 240C35 - 240 Pitch C-Hub Sprocket - 35 Tooth
- BlackStar 240C40 - 240 Pitch C-Hub Sprocket - 40 Tooth
- BlackStar 240C40 - 240 Pitch C-Hub Sprocket - 40 Tooth
Shop all 38 matched options ›
Connecting Links
- Lynx HD240 C/P C/L - Connecting Link
- Lynx HD240 C/P C/L - Connecting Link
- Lynx XD240 C/P C/L - Connecting Link
- Lynx XD240 C/P C/L - Connecting Link
Shop all #240 ANSI Roller Chain & Sprockets ›
Offset Links
- Lynx HD240 O/L - Offset Link
- Lynx HD240 O/L - Offset Link
- Lynx XD240 O/L - Offset Link
- Lynx XD240 O/L - Offset Link
Shop all #240 ANSI Roller Chain & Sprockets ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
