Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD35 family to join the chain ends after installation:
HD35SS O/L

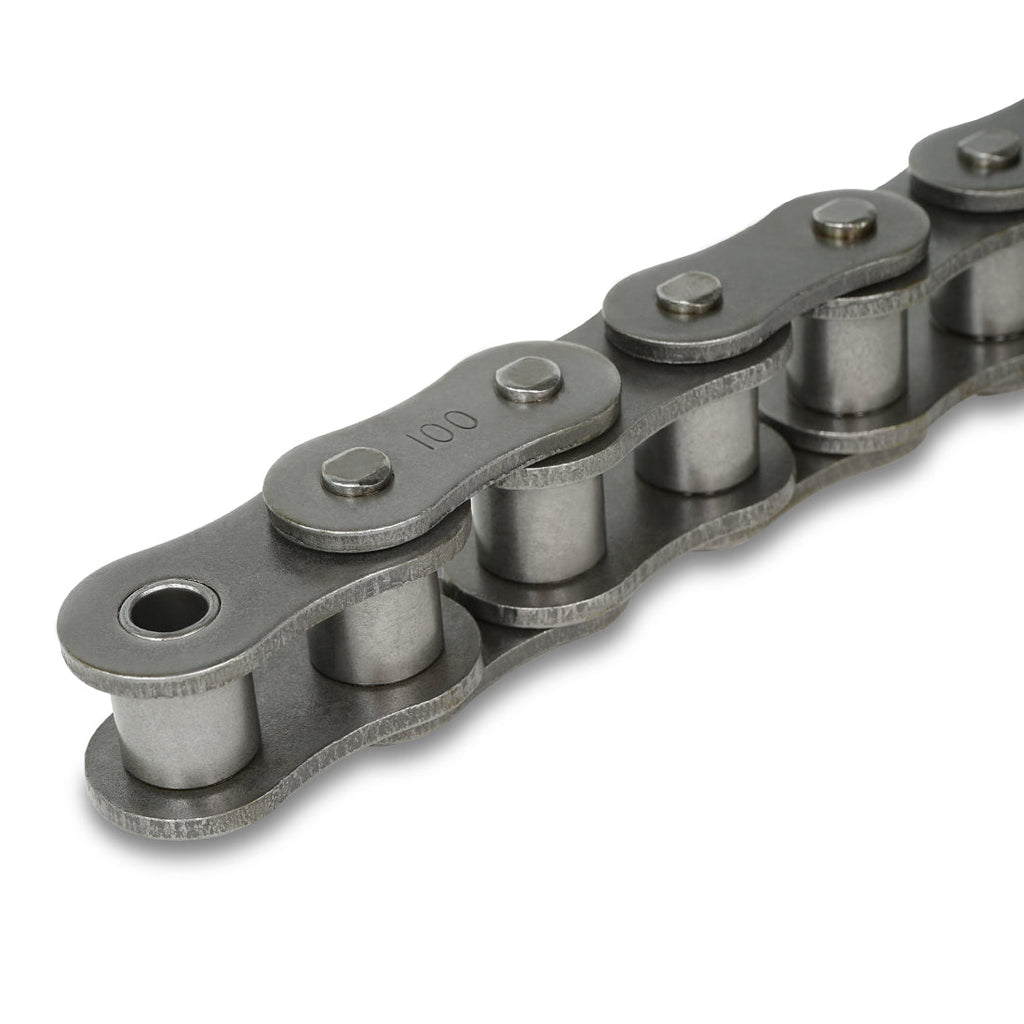

The Lynx HD35SS RIV 100' is a 100-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

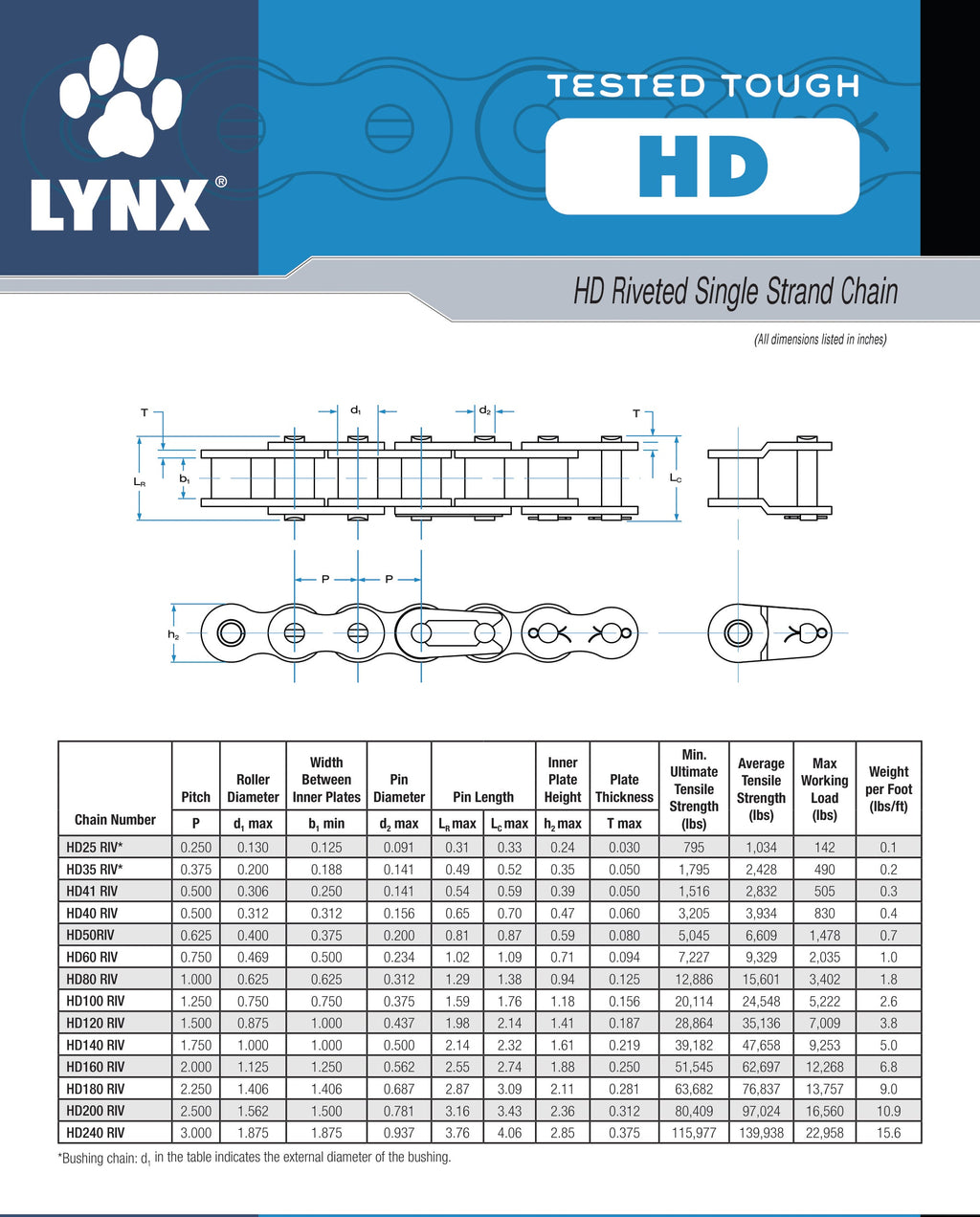

Specifications
| Chain Size | 35 |
| Series | HD35 Series |
| Number of strands | 1 |
| Material | Stainless Steel |
| Pitch | 0.38 |
| Roller Diameter | 0.2 |
| Pin Diameter | 0.141 |
| Pin Length | 0.52 |
| Link Plate Height | 0.35 |
| Plate Thickness | 0.05 |
| Width Between Inner Plates | 0.188 |
| Max Working Load (lbs.) | 115 |
| Minimum Tensile Strength (lbs.) | 1708 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.24 lbs/ft |
| Total Reel Weight | 24 lbs (100 ft × 0.24 lbs/ft) |
| GTIN | 192056075214 |
Compatible Components
Matched Sprockets
- 35A112 Roller Chain Sprocket, #35 Chain, 112 Teeth, A Hub
- 35A15 Roller Chain Sprocket, #35 Chain, 15 Teeth, A Hub
- 35A16 Roller Chain Sprocket, #35 Chain, 16 Teeth, A Hub
- 35A17 Roller Chain Sprocket, #35 Chain, 17 Teeth, A Hub
Shop all 1157 matched options ›
Connecting Links
- Lynx HD35 R/L - Connecting Link
- Lynx HD35 R/L - Connecting Link
- Lynx HD35 S/C C/L - Connecting Link
- Lynx HD35 S/C C/L - Connecting Link
Offset Links
- Lynx HD35 O/L - Offset Link
- Lynx HD35 O/L - Offset Link
- Lynx HD35-2 O/L - Offset Link
- Lynx HD35-2 O/L - Offset Link
Matched Sprockets
- 35A112 Roller Chain Sprocket, #35 Chain, 112 Teeth, A Hub
- 35A15 Roller Chain Sprocket, #35 Chain, 15 Teeth, A Hub
- 35A16 Roller Chain Sprocket, #35 Chain, 16 Teeth, A Hub
- 35A17 Roller Chain Sprocket, #35 Chain, 17 Teeth, A Hub
Shop all 1157 matched options ›
Connecting Links
- Lynx HD35 R/L - Connecting Link
- Lynx HD35 R/L - Connecting Link
- Lynx HD35 S/C C/L - Connecting Link
- Lynx HD35 S/C C/L - Connecting Link
Offset Links
- Lynx HD35 O/L - Offset Link
- Lynx HD35 O/L - Offset Link
- Lynx HD35-2 O/L - Offset Link
- Lynx HD35-2 O/L - Offset Link
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
