Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD40 family to join the chain ends after installation:
HD40-3 C/L
HD40-3 O/L

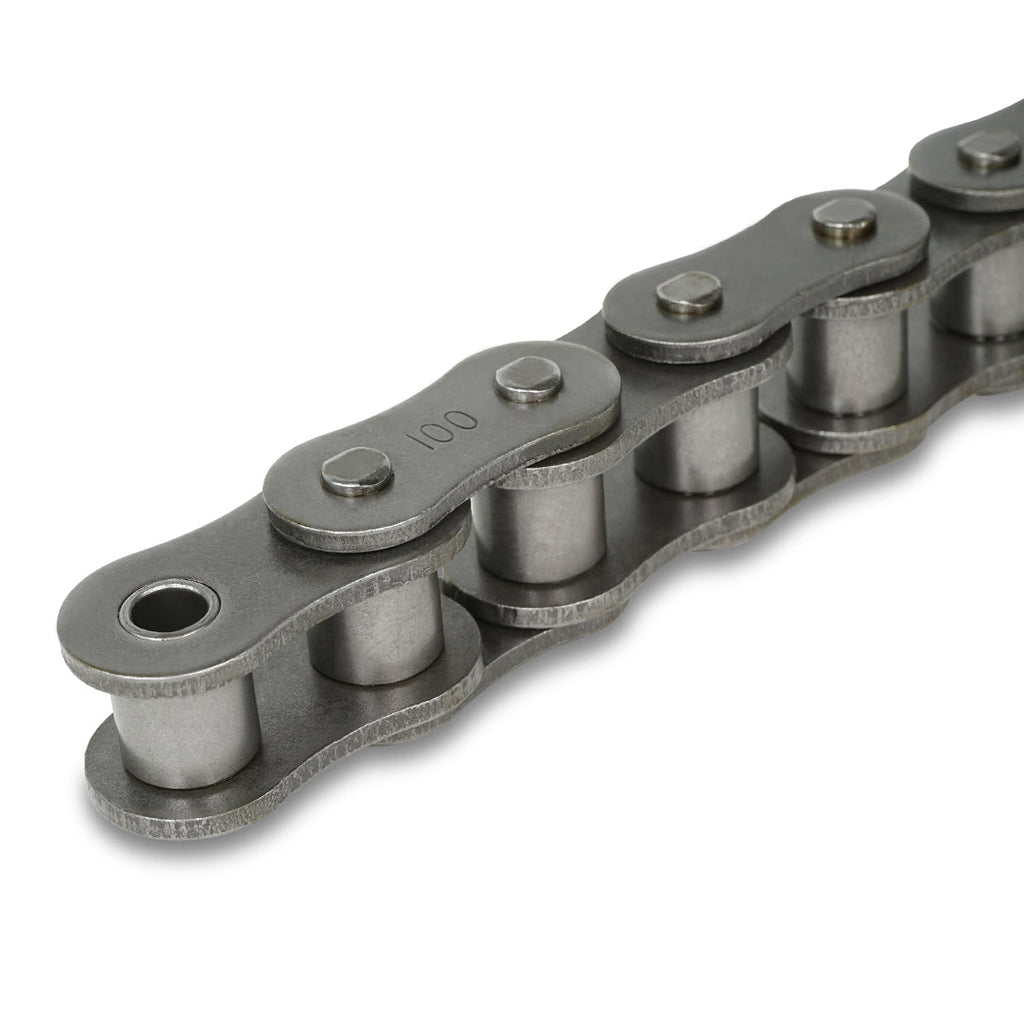

The Lynx HD40-3 RIV 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

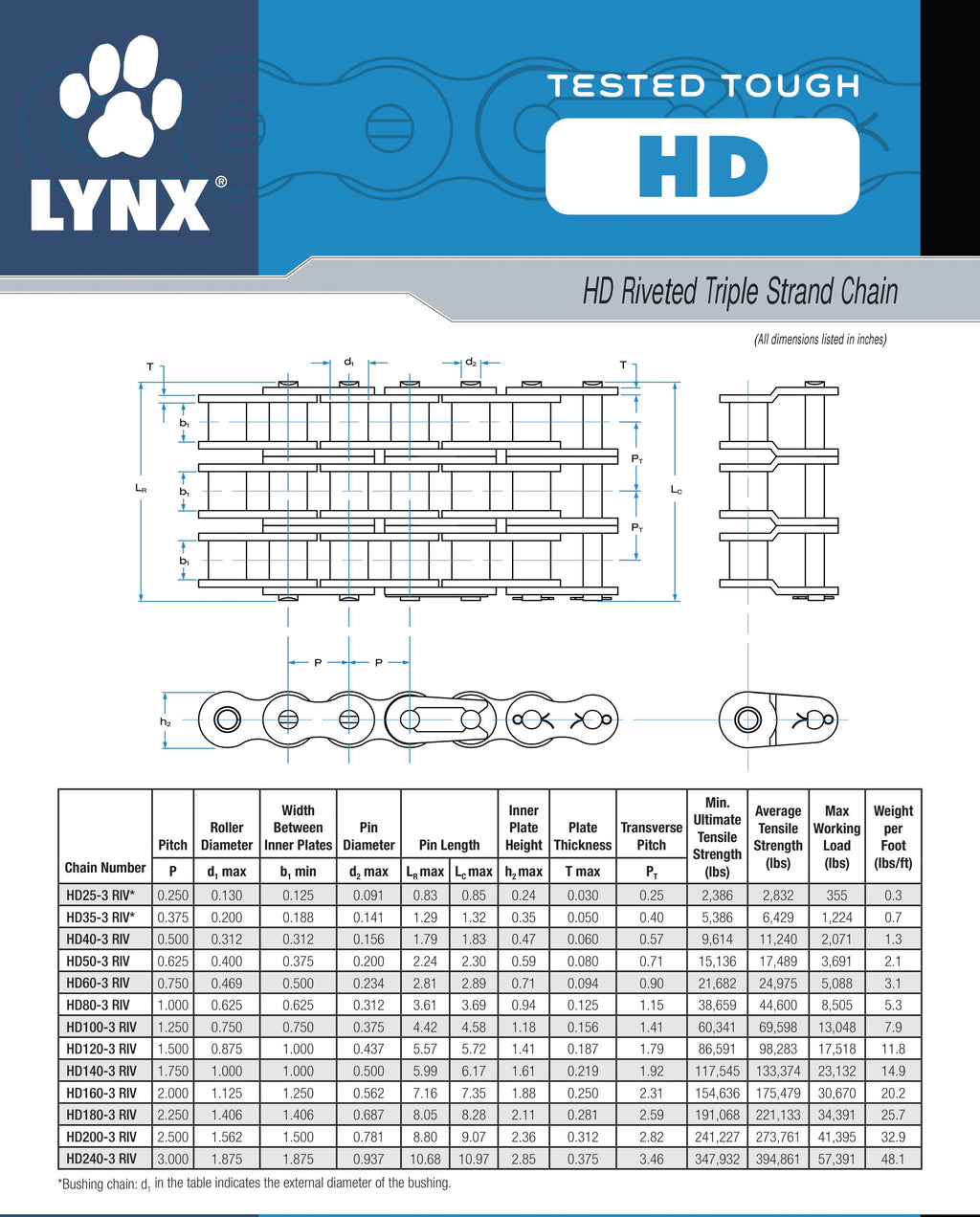

Specifications
| Chain Size | 40 |
| Series | HD40 Series |
| Number of strands | 3 |
| Material | Steel |
| Pitch | 0.50 |
| Roller Diameter | 0.312 |
| Pin Diameter | 0.156 |
| Pin Length | 1.83 |
| Link Plate Height | 0.47 |
| Plate Thickness | 0.06 |
| Width Between Inner Plates | 0.312 |
| Transverse Pitch | 0.57 |
| Average Tensile Strength (lbs.) | 11240 |
| Max Working Load (lbs.) | 2071 |
| Minimum Tensile Strength (lbs.) | 9614 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 1.3 lbs/ft |
| Total Reel Weight | 13 lbs (10 ft × 1.3 lbs/ft) |
| GTIN | 192056075344 |
Compatible Components
Matched Sprockets
- 25BF40x1 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
- 25BF40x1-1/4 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
- 25BF40x1-3/8 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
- 25BF40x1/2 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
Shop all 2627 matched options ›
Connecting Links
- Lynx HD40 C/P C/L - Connecting Link
- Lynx HD40 C/P C/L - Connecting Link
- Lynx HD40 S/C C/L - Connecting Link
- Lynx HD40 S/C C/L - Connecting Link
Shop all 28 matched options ›
Offset Links
- Lynx HD40 O/L - Offset Link
- Lynx HD40 O/L - Offset Link
- Lynx HD40-2 O/L - Offset Link
- Lynx HD40-2 O/L - Offset Link
Shop all 24 matched options ›
Matched Sprockets
- 25BF40x1 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
- 25BF40x1-1/4 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
- 25BF40x1-3/8 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
- 25BF40x1/2 Roller Chain Sprocket, #25 Chain, 4 Teeth, B Hub
Shop all 2627 matched options ›
Connecting Links
- Lynx HD40 C/P C/L - Connecting Link
- Lynx HD40 C/P C/L - Connecting Link
- Lynx HD40 S/C C/L - Connecting Link
- Lynx HD40 S/C C/L - Connecting Link
Shop all 28 matched options ›
Offset Links
- Lynx HD40 O/L - Offset Link
- Lynx HD40 O/L - Offset Link
- Lynx HD40-2 O/L - Offset Link
- Lynx HD40-2 O/L - Offset Link
Shop all 24 matched options ›
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
