Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD41 family to join the chain ends after installation:
HD41 O/L
The Lynx HD41 RIV 100' is a 100-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

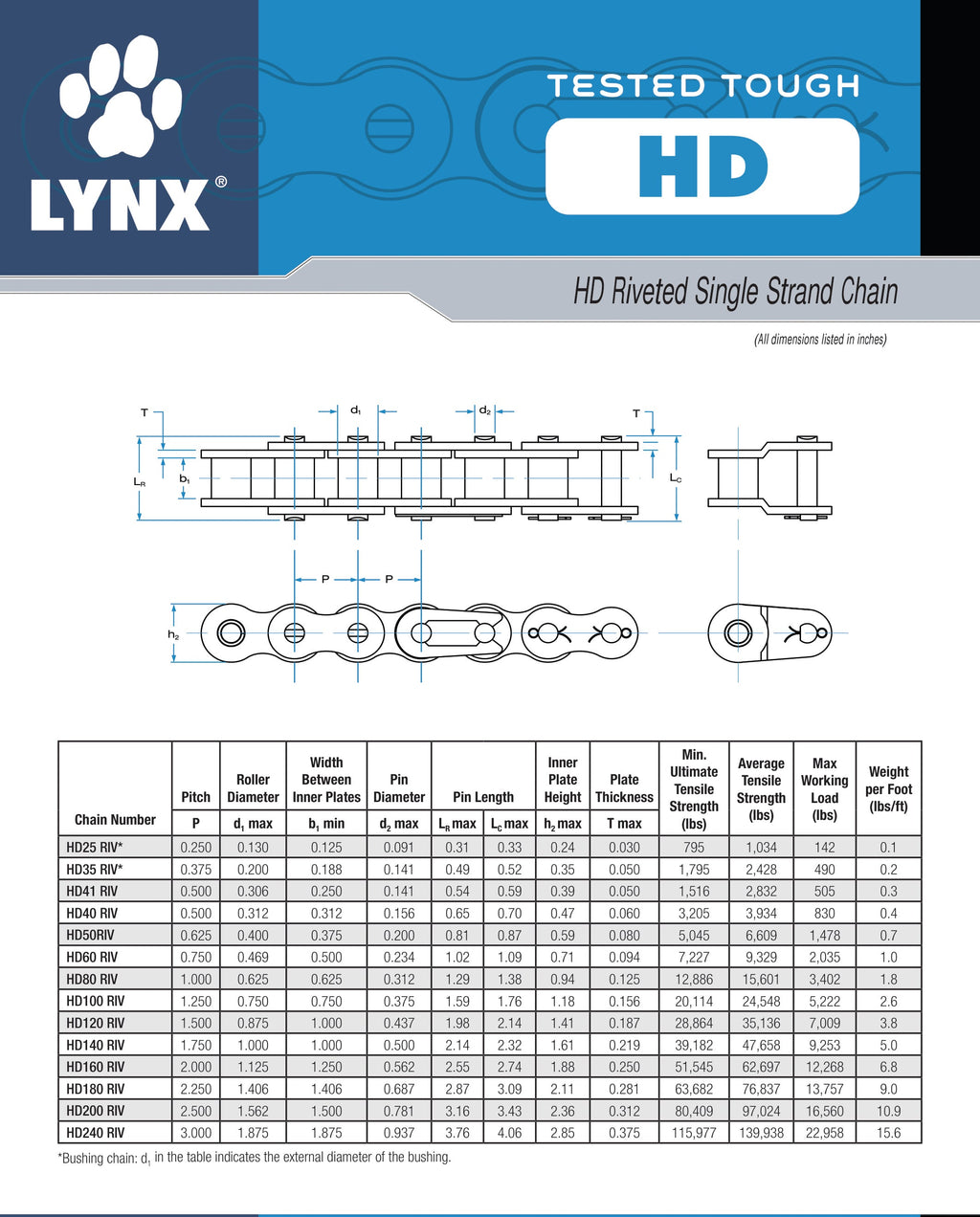

Specifications
| Chain Size | 41 |
| Series | HD41 Series |
| Number of strands | 1 |
| Material | Steel |
| Pitch | 0.50 |
| Roller Diameter | 0.306 |
| Pin Diameter | 0.141 |
| Pin Length | 0.59 |
| Link Plate Height | 0.39 |
| Plate Thickness | 0.05 |
| Width Between Inner Plates | 0.25 |
| Average Tensile Strength (lbs.) | 2832 |
| Max Working Load (lbs.) | 505 |
| Minimum Tensile Strength (lbs.) | 1516 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.3 lbs/ft |
| Total Reel Weight | 30 lbs (100 ft × 0.3 lbs/ft) |
| GTIN | 192056075528 |
