Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD50 family to join the chain ends after installation:
HD50SS S/C C/L
HD50SS O/L

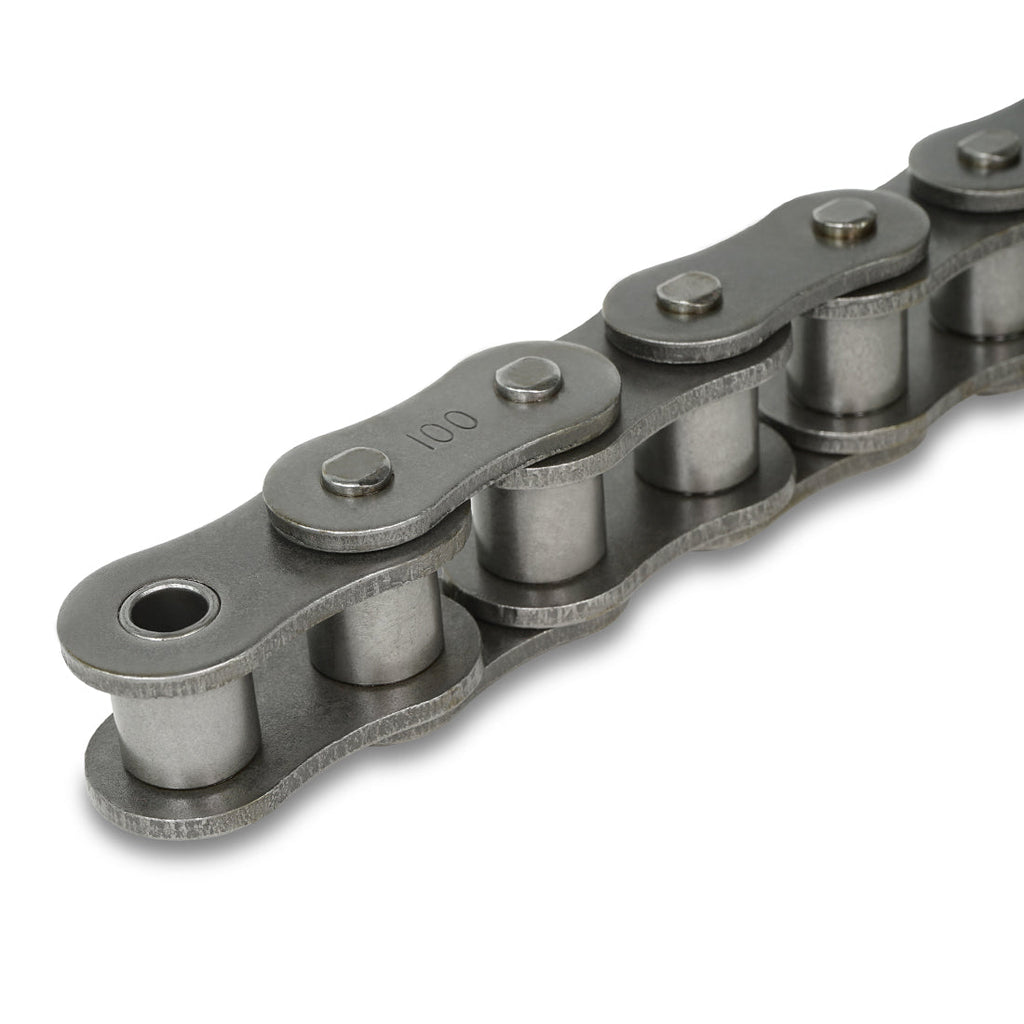

The Lynx HD50SS RIV 100' is a 100-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

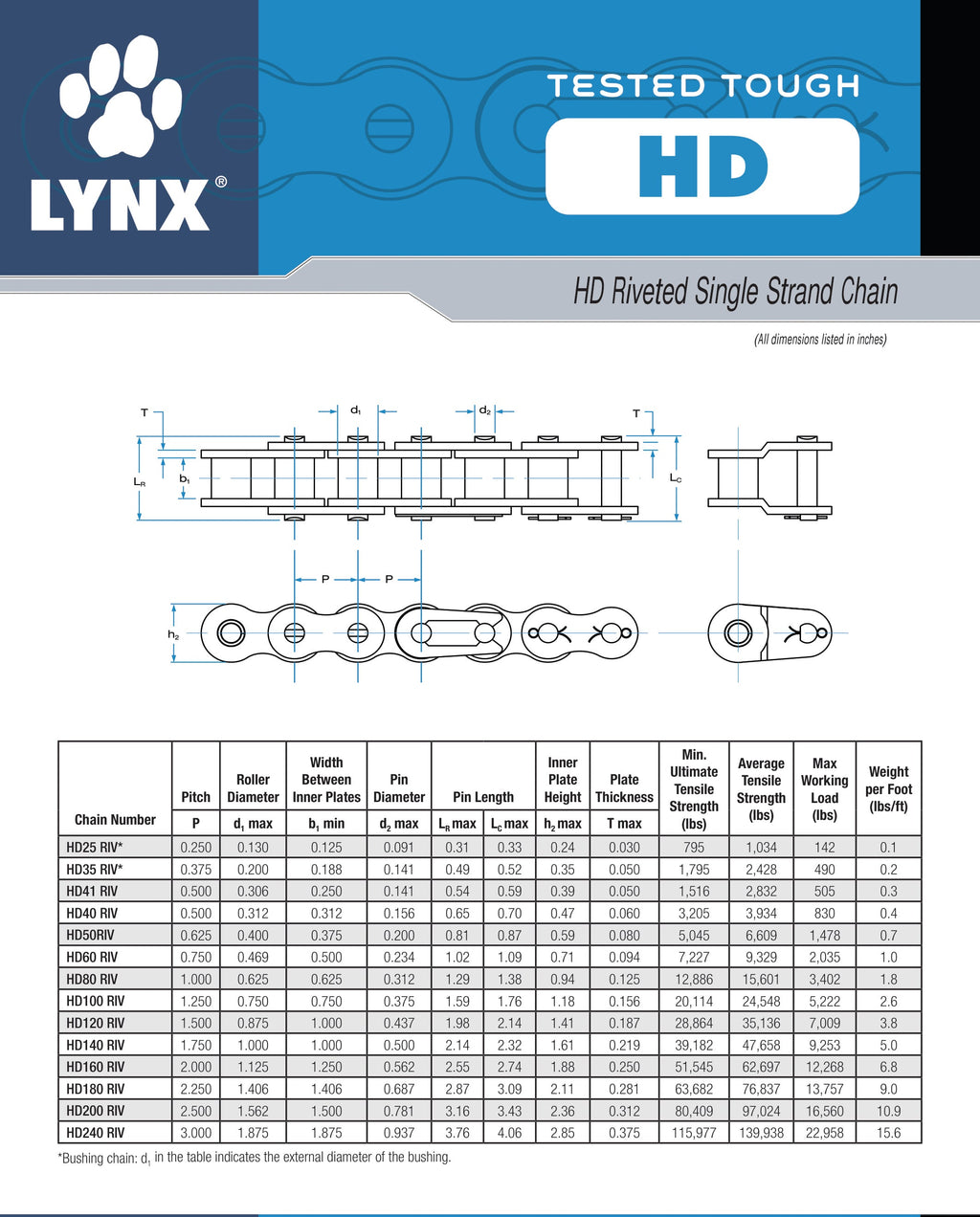

Specifications
| Chain Size | 50 |
| Series | HD50 Series |
| Number of strands | 1 |
| Material | Stainless Steel |
| Pitch | 0.63 |
| Roller Diameter | 0.4 |
| Pin Diameter | 0.208 |
| Pin Length | 0.86 |
| Link Plate Height | 0.59 |
| Plate Thickness | 0.08 |
| Width Between Inner Plates | 0.375 |
| Max Working Load (lbs.) | 300 |
| Minimum Tensile Strength (lbs.) | 3779 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 0.67 lbs/ft |
| Total Reel Weight | 67 lbs (100 ft × 0.67 lbs/ft) |
| GTIN | 192056075917 |
