Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD60 family to join the chain ends after installation:
HD60-2 O/L
The Lynx HD60-2 RIV 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

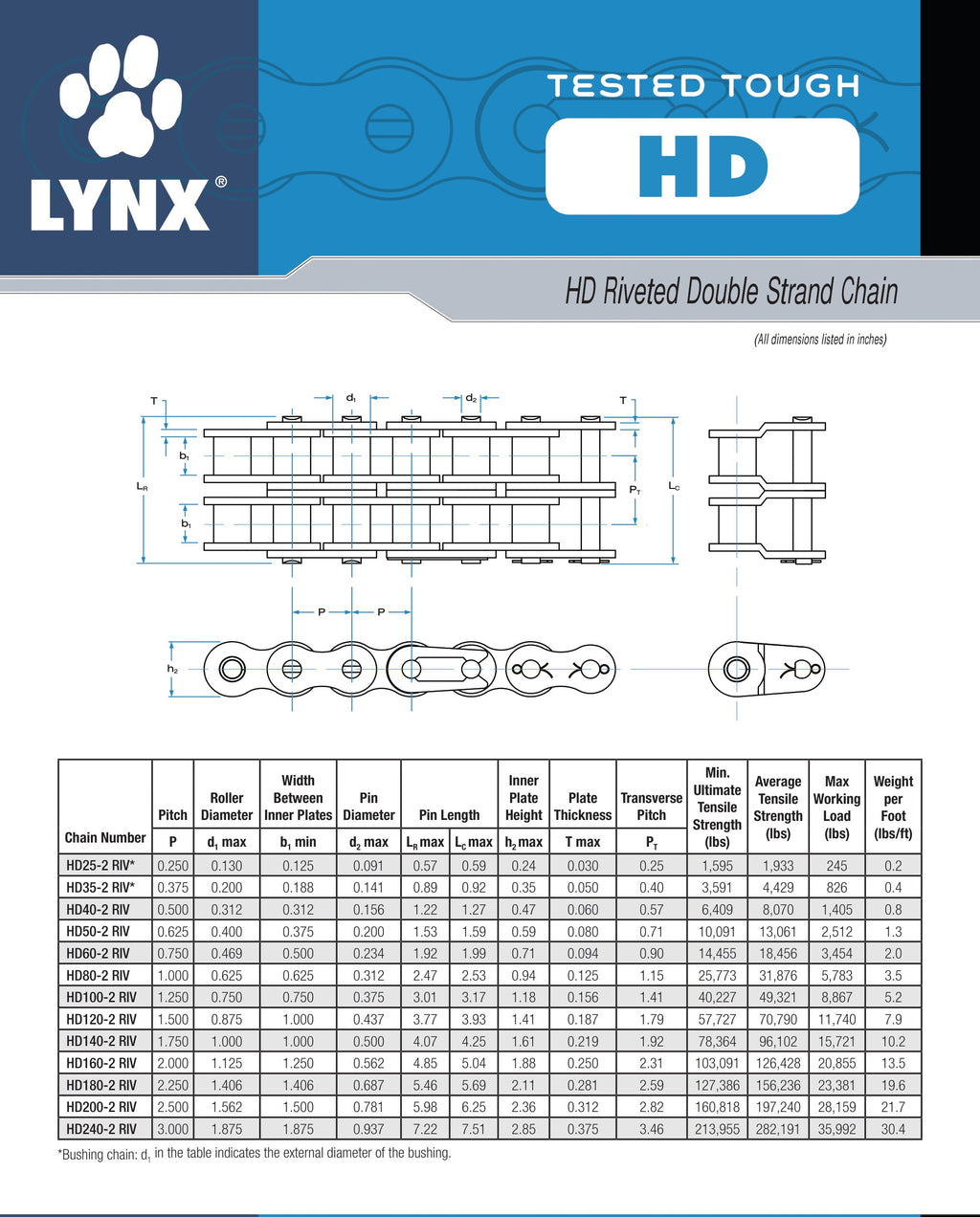

Specifications
| Chain Size | 60 |
| Series | HD60 Series |
| Number of strands | 2 |
| Material | Steel |
| Pitch | 0.75 |
| Roller Diameter | 0.469 |
| Pin Diameter | 0.234 |
| Pin Length | 1.95 |
| Link Plate Height | 0.71 |
| Plate Thickness | 0.094 |
| Width Between Inner Plates | 0.5 |
| Transverse Pitch | 0.90 |
| Average Tensile Strength (lbs.) | 18456 |
| Max Working Load (lbs.) | 3454 |
| Minimum Tensile Strength (lbs.) | 14455 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 2 lbs/ft |
| Total Reel Weight | 20 lbs (10 ft × 2 lbs/ft) |
| GTIN | 192056076068 |
