Lynx HD60-2 RIV 50' - Roller Chain 50ft Reel


Price:
$ 1,026.12

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same HD60 family to join the chain ends after installation:

CONNECTING LINKS:
HD60-2 C/P C/LHD60-2 S/C C/L
OFFSET LINKS:
HD60-2 O/L

The Lynx HD60-2 RIV 50' is a 50-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

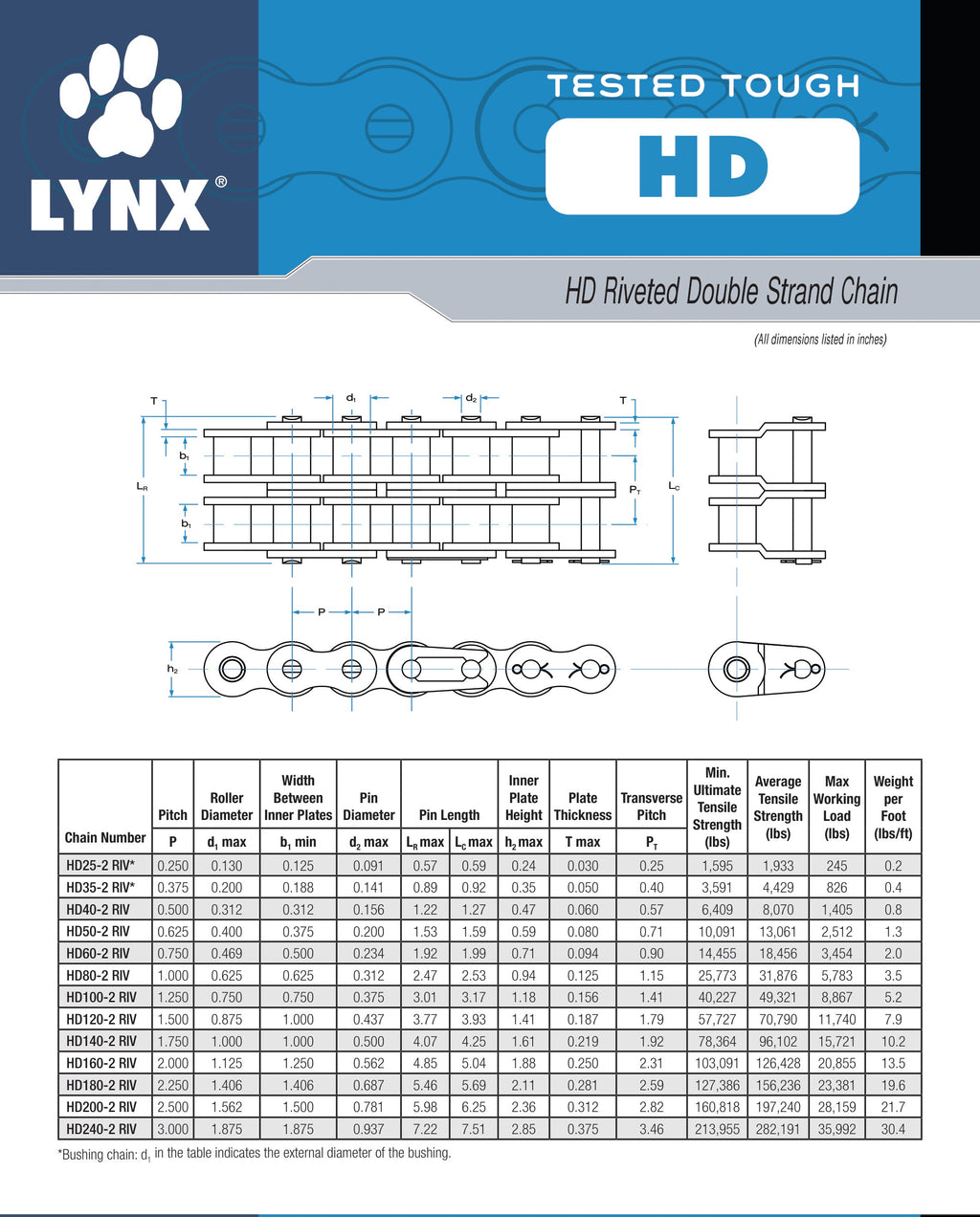

Specifications

Chain Size 60
Series HD60 Series
Number of strands 2
Material Steel
Pitch 0.75
Roller Diameter 0.469
Pin Diameter 0.234
Pin Length 1.95
Link Plate Height 0.71
Plate Thickness 0.094
Width Between Inner Plates 0.5
Transverse Pitch 0.90
Average Tensile Strength (lbs.) 18456
Max Working Load (lbs.) 3454
Minimum Tensile Strength (lbs.) 14455
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 2 lbs/ft
Total Reel Weight 100 lbs (50 ft × 2 lbs/ft)
GTIN 192056076075
