Description
Chain reels do not include connecting hardware. Add a matching connecting link from the same HD60 family to join the chain ends after installation:
HD60DR S/C C/L
HD60DR O/L

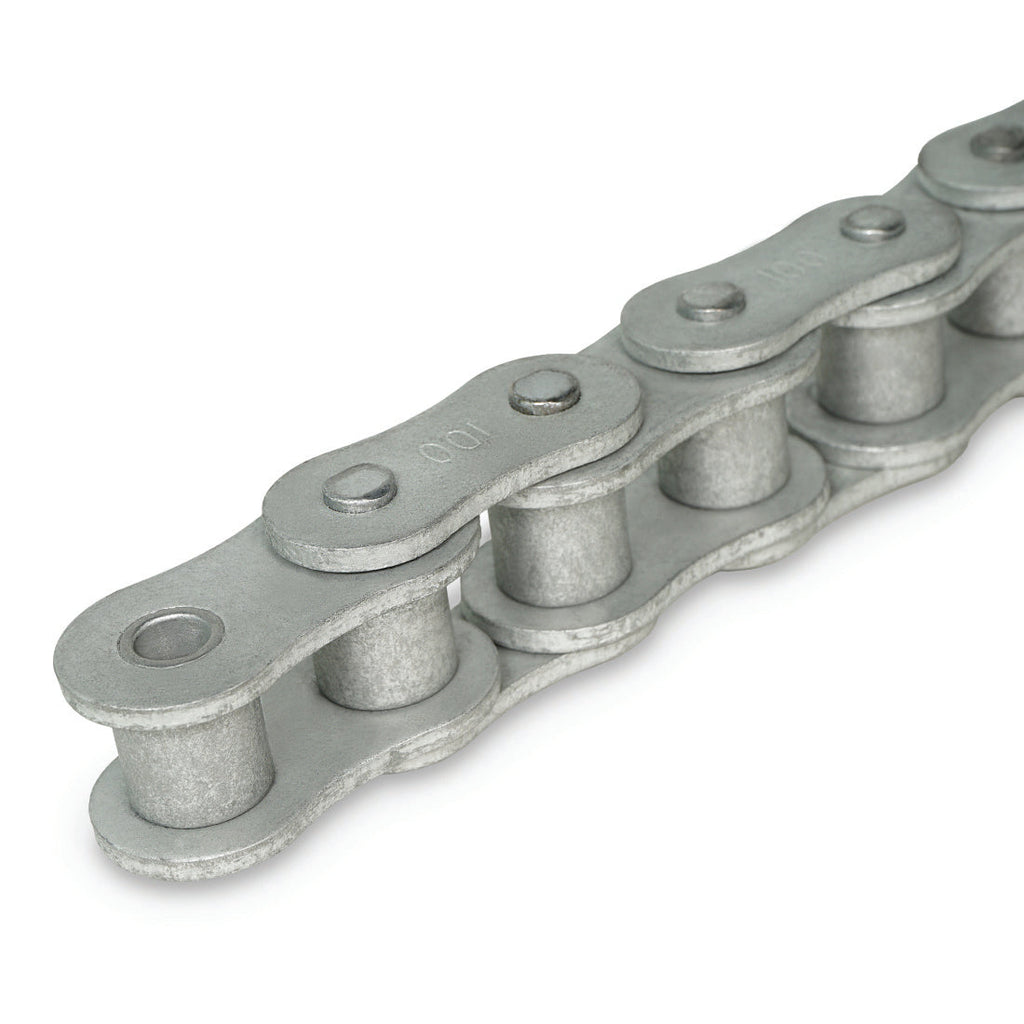

The Lynx HD60DR RIV 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

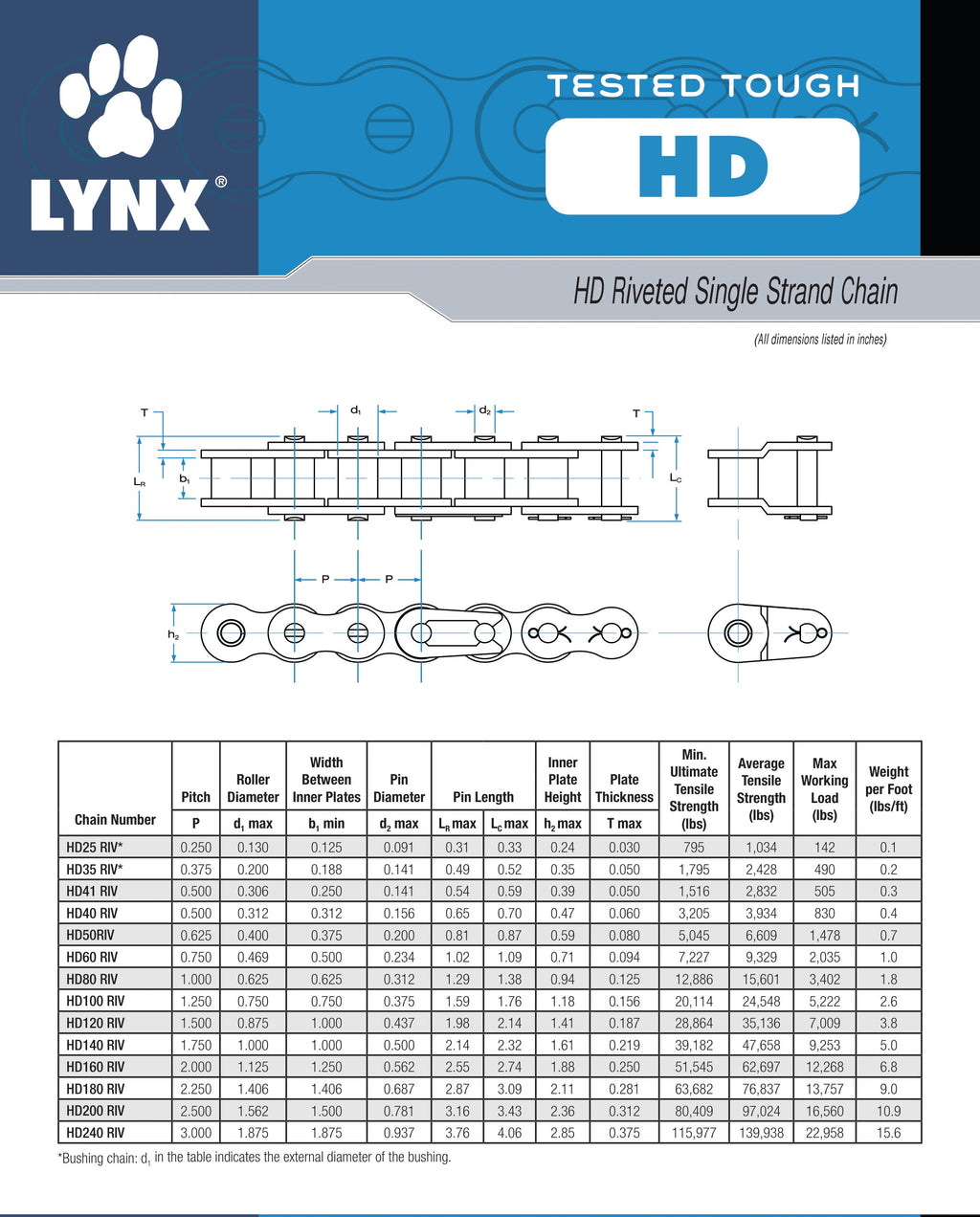

Specifications
| Chain Size | 60 |
| Series | HD60 Series |
| Number of strands | 1 |
| Material | Dacroclad Steel |
| Pitch | 0.75 |
| Roller Diameter | 0.469 |
| Pin Diameter | 0.234 |
| Pin Length | 1.06 |
| Link Plate Height | 0.71 |
| Plate Thickness | 0.094 |
| Width Between Inner Plates | 0.5 |
| Average Tensile Strength (lbs.) | 2035 |
| Minimum Tensile Strength (lbs.) | 7227 |
| Lubrication Info | Prelubed |
| Included | Pre-Lubed Chain and 1 (one) Connecting Link. |
| Weight per Foot | 1 lbs/ft |
| Total Reel Weight | 10 lbs (10 ft × 1 lbs/ft) |
| GTIN | 192056072206 |
Compatible Components
Matched Sprockets
- 25BF60x1 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
- 25BF60x1-1/4 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
- 25BF60x1-3/8 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
- 25BF60x1/2 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
Shop all 3418 matched options ›
Connecting Links
- Lynx HD60 C/P C/L - Connecting Link
- Lynx HD60 C/P C/L - Connecting Link
- Lynx HD60 C/P C/L UA - Connecting Link
- Lynx HD60 C/P C/L UA - Connecting Link
Offset Links
- Lynx HD60 O/L - Offset Link
- Lynx HD60 O/L - Offset Link
- Lynx HD60-2 O/L - Offset Link
- Lynx HD60-2 O/L - Offset Link
Matched Sprockets
- 25BF60x1 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
- 25BF60x1-1/4 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
- 25BF60x1-3/8 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
- 25BF60x1/2 Roller Chain Sprocket, #25 Chain, 6 Teeth, B Hub
Shop all 3418 matched options ›
Connecting Links
- Lynx HD60 C/P C/L - Connecting Link
- Lynx HD60 C/P C/L - Connecting Link
- Lynx HD60 C/P C/L UA - Connecting Link
- Lynx HD60 C/P C/L UA - Connecting Link
Offset Links
- Lynx HD60 O/L - Offset Link
- Lynx HD60 O/L - Offset Link
- Lynx HD60-2 O/L - Offset Link
- Lynx HD60-2 O/L - Offset Link
Not sure what fits? Call (888) 203-2358 and we will match it from the Houston warehouse.
