Lynx HD80-3 RIV 10' - Roller Chain 10ft Reel


Price:
$ 524.98

Description

⚡ Complete Your Order

Chain reels do not include connecting hardware. Add a matching connecting link from the same HD80 family to join the chain ends after installation:

CONNECTING LINKS:
HD80-3 C/P C/LHD80-3 S/C C/L
OFFSET LINKS:
HD80-3 O/L

The Lynx HD80-3 RIV 10' is a 10-foot reel of roller chain for industrial power transmission applications. Includes pre-lubed chain and 1 (one) connecting link. Sold as a complete reel, ready for installation.

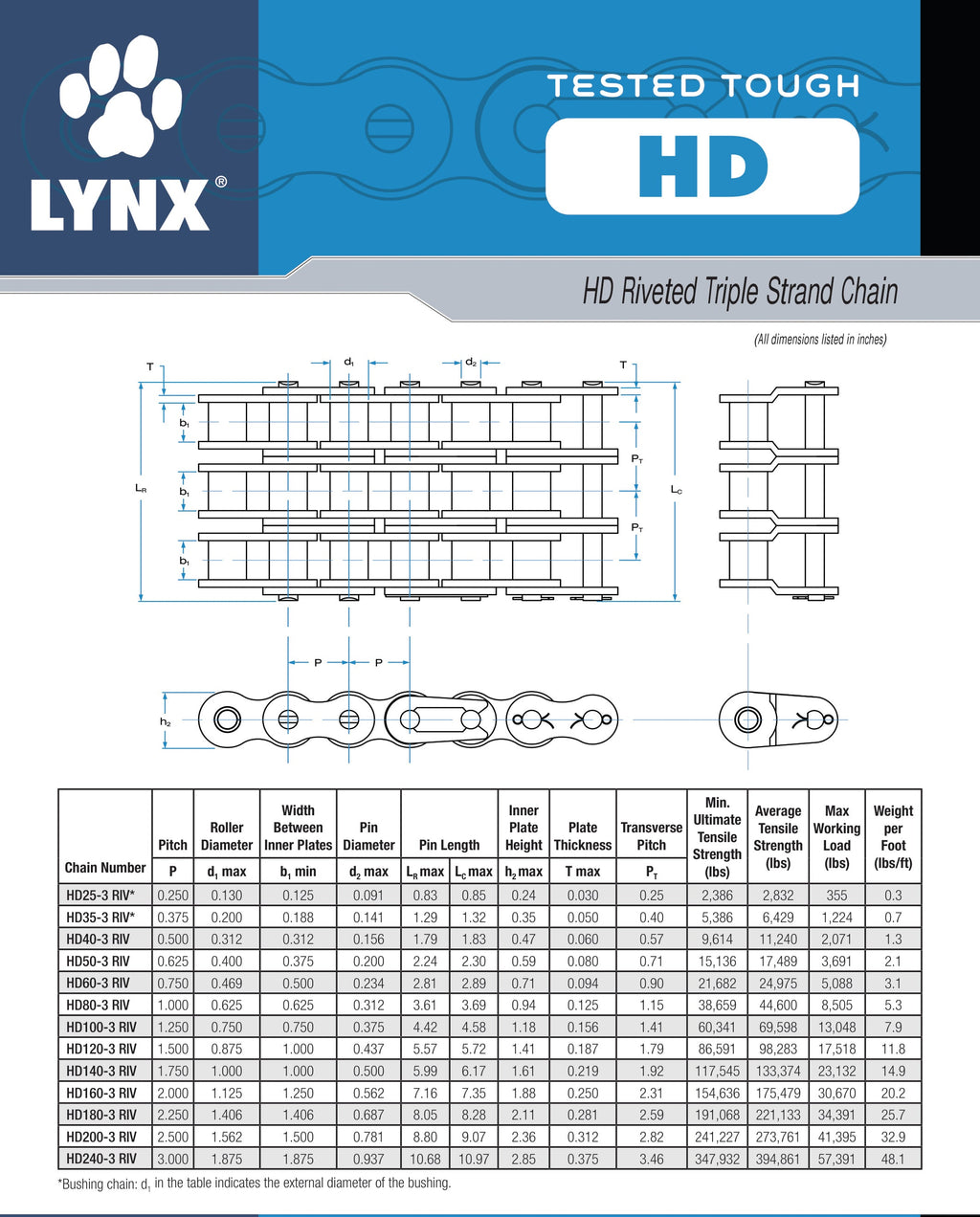

Specifications

Chain Size 80
Series HD80 Series
Number of strands 3
Material Steel
Pitch 1.00
Roller Diameter 0.625
Pin Diameter 0.312
Pin Length 3.65
Link Plate Height 0.94
Plate Thickness 0.125
Width Between Inner Plates 0.625
Transverse Pitch 1.15
Average Tensile Strength (lbs.) 44600
Max Working Load (lbs.) 8505
Minimum Tensile Strength (lbs.) 38659
Lubrication Info Prelubed
Included Pre-Lubed Chain and 1 (one) Connecting Link.
Weight per Foot 5.3 lbs/ft
Total Reel Weight 53 lbs (10 ft × 5.3 lbs/ft)
GTIN 192056076419
